Engine Assembly, Intake Manifold, Exhaust Manifold: Installation

  1. INSTALL ENGINE COOLANT TEMPERATURE SENSOR
    1. Using a 19 mm deep socket wrench, remove the temperature sensor.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

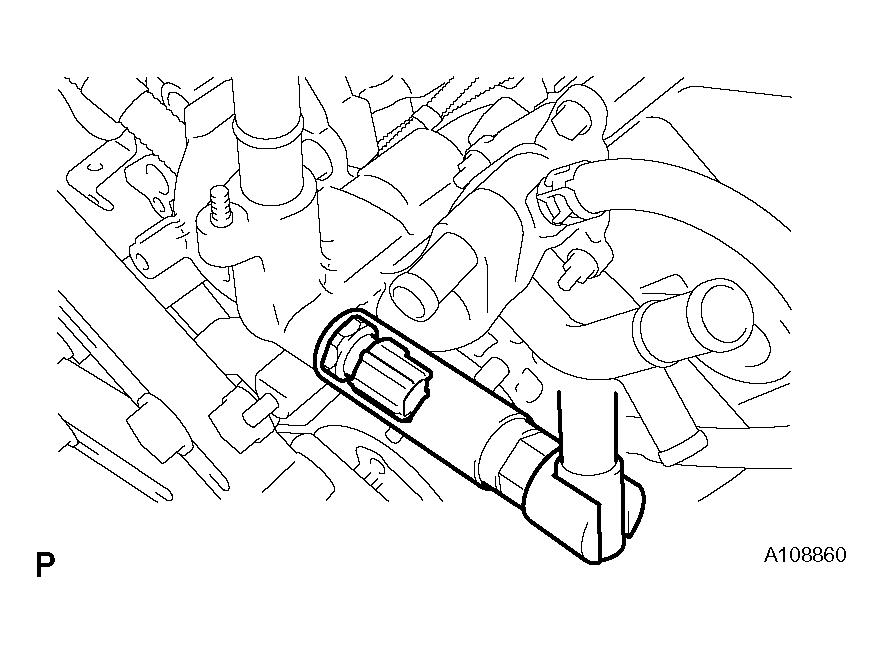

      Fig 1: Identifying Engine Coolant Temperature Sensor
      G04018206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL OIL PRESSURE SWITCH ASSEMBLY
    1. Using a 24 mm deep socket wrench, install the oil pressure switch.

      Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)

      NOTE: Do not start the engine within 1 hour after installation.
      Fig 2: Identifying Oil Pressure Switch Assembly
      G04018207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL ENGINE OIL LEVEL SENSOR
    1. Install the engine oil level sensor and new gasket with the 4 bolts.

      Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

  4. INSTALL IGNITION COIL ASSEMBLY
    1. Install the 6 ignition coils with the 6 bolts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  5. INSTALL OIL FILLER CAP SUB-ASSEMBLY
  6. INSTALL ENGINE MOUNTING BRACKET RH
    1. Install the mounting bracket with the 4 bolts.

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

  7. INSTALL ENGINE MOUNTING BRACKET LH
    1. Install the mounting bracket with the 4 bolts.

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

  8. INSTALL KNOCK SENSOR
    1. Install the 2 knock sensors so that they are horizontal as shown in the illustration. Then install the 2 bolts.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

      HINT:

      It is acceptable for the sensor to be tilted +10° to - 5°.

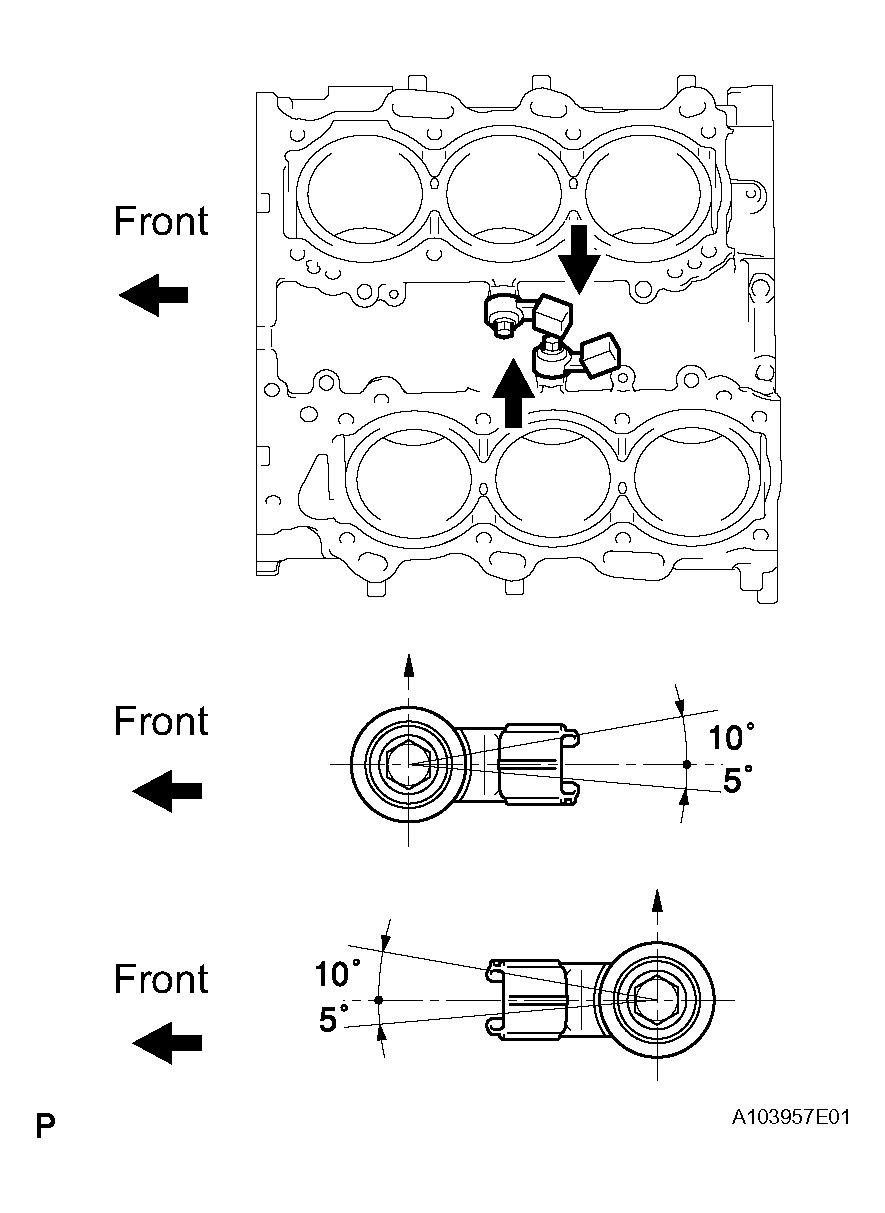

      Fig 3: Identifying Knock Sensors Horizontal
      G04018208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL FUEL INJECTOR ASSEMBLY (See  INSTALLATION  )
  10. INSTALL FUEL DELIVERY PIPE SUB-ASSEMBLY (See  INSTALLATION  )
  11. INSTALL NO. 2 FUEL DELIVERY PIPE SUBASSEMBLY (See  INSTALLATION  )
  12. INSTALL HIGH PRESSURE SIDE FUEL PUMP (See  INSTALLATION  )
  13. INSTALL NO. 2 FUEL PIPE SUB-ASSEMBLY (See  INSTALLATION  )
  14. INSTALL NO. 1 FUEL PIPE SUB-ASSEMBLY (See  INSTALLATION  )
  15. INSTALL FUEL PRESSURE PULSATION DAMPER ASSEMBLY (See  INSTALLATION  )
  16. INSTALL INTAKE MANIFOLD
    1. Install a new gasket and the intake manifold with the 4 bolts and 2 nuts.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

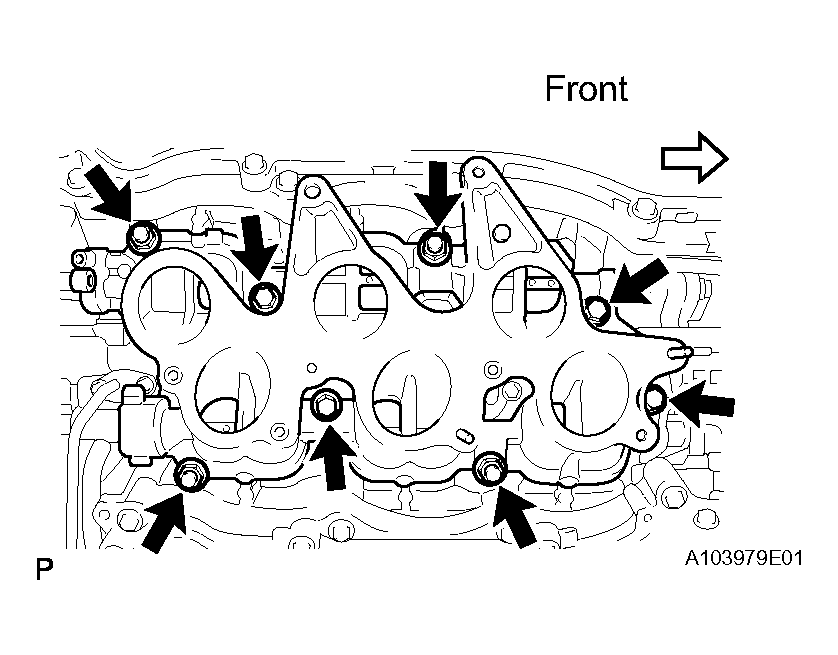

      Fig 4: Identifying A New Gasket And Intake Manifold
      G04018209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL INTAKE AIR SURGE TANK SUB-ASSEMBLY
    1. Install a new gasket to the intake air surge tank.
    2. Install the intake air surge tank with the 2 nuts.

      Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

    3. Using a hexagon socket wrench 5, install the 7 bolts.

      Torque: 16 N*m (163 kgf*cm, 12 ft.*lbf)

    4. Install the 2 surge tank stays with the 4 bolts.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

    5. Install the intake manifold stay with the 2 bolts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  18. INSTALL NO. 4 WATER BYPASS PIPE
    1. Install the water bypass pipe with the bolt.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  19. INSTALL NO. 3 WATER BYPASS PIPE
    1. Install the water bypass pipe with the bolt.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      Fig 5: Identifying Water By-Pass Pipe With Bolt
      G04018210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL REAR ENGINE COVER SUB-ASSEMBLY
    1. Install the engine cover with the 3 clips.

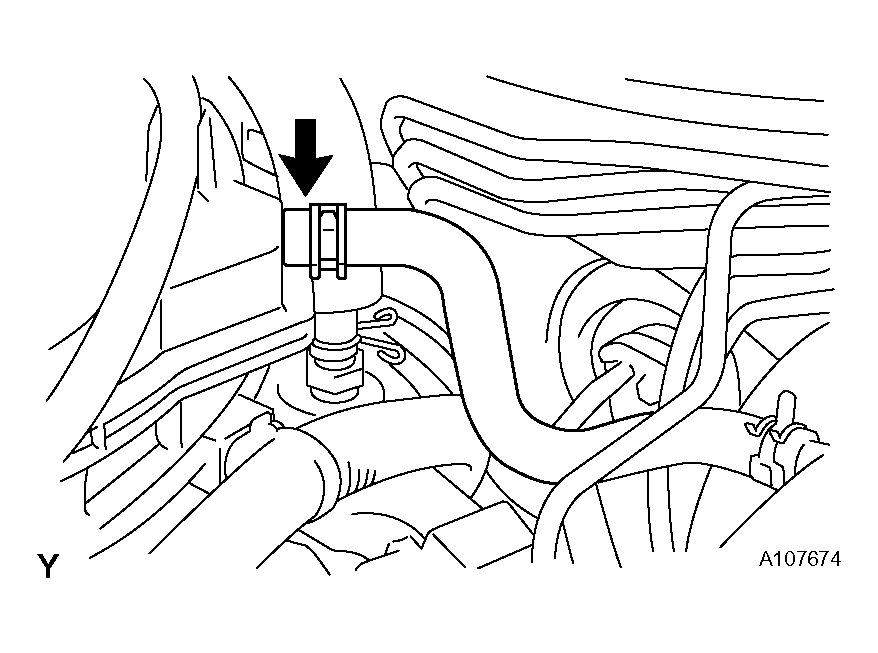

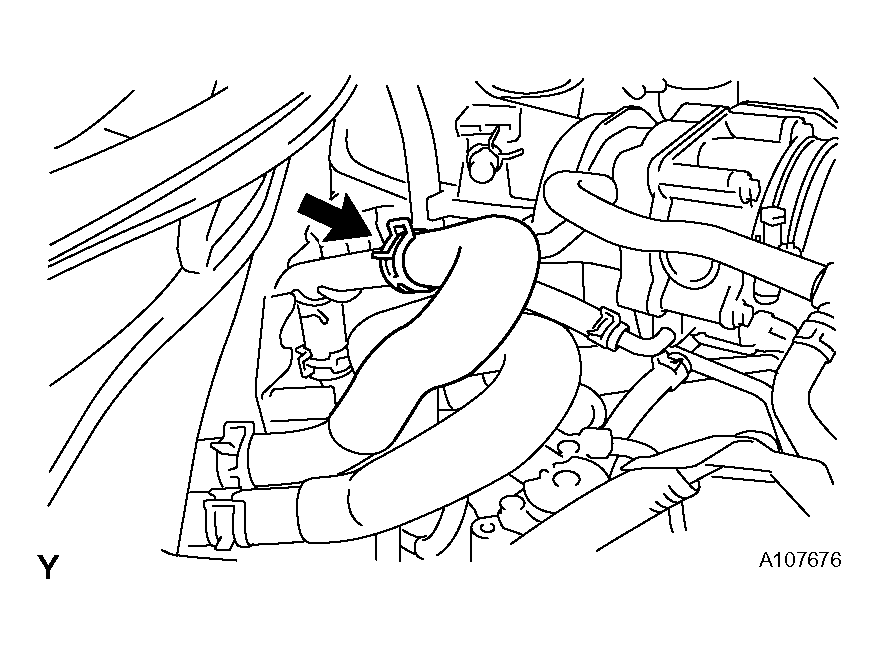

  21. CONNECT NO. 2 WATER BYPASS HOSE
  22. CONNECT NO. 1 WATER BYPASS HOSE
    Fig 6: Identifying Engine Cover With 3 Clips
    G04018211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL INJECTOR DRIVER
    1. Install the injector driver with the bolt and 2 nuts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  24. INSTALL WATER PUMP PULLEY (See  INSTALLATION  )
    Fig 7: Identifying Injector Driver, Bolt And Nuts
    G04055976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

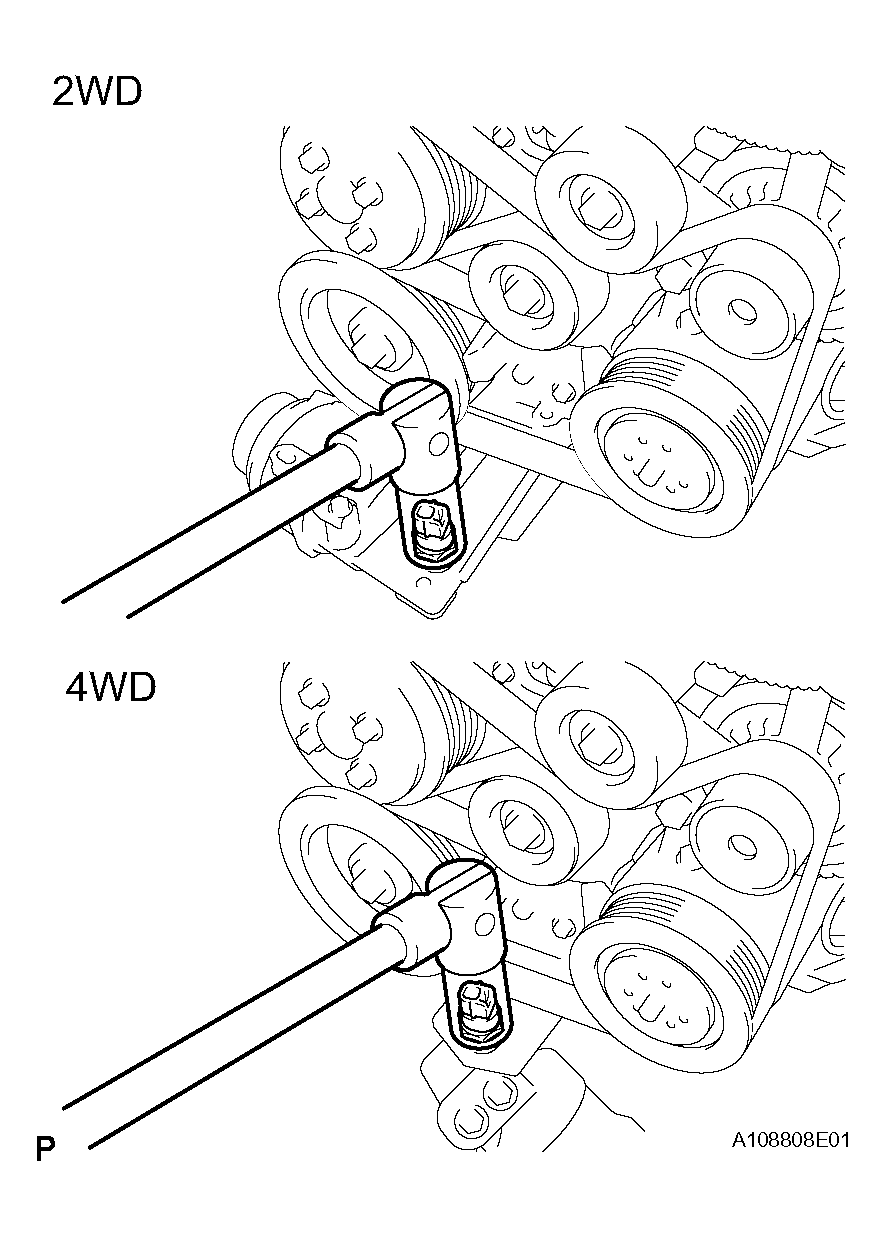

  25. INSTALL V-RIBBED BELT TENSIONER ASSEMBLY (for 2WD)
    1. Temporarily install the V-ribbed belt tensioner with the 5 bolts.
    2. Install the V-ribbed belt tensioner by tightening the bolt 1 and bolt 2 in the order shown in the illustration.

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

      Each bolt length is as follows:

      BOLT SPECIFICATIONS

      A 70 mm (2.76 in.)
      B 33 mm (1.30 in.)
      Fig 8: Install Engine Cover With Clips
      G04018213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Tighten the other bolts.

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

  26. INSTALL V-RIBBED BELT TENSIONER ASSEMBLY (for 4WD)
    1. Temporarily install the V-ribbed belt tensioner with the 4 bolts.
    2. Install the V-ribbed belt tensioner by tightening the bolt 1in the order shown in the illustration.

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

      Each bolt length is as follows:

      BOLT SPECIFICATIONS

      A 70 mm (2.76 in.)
      B 33 mm (1.30 in.)
      Fig 9: Identifying V-Ribbed Belt Tensioner Assembly
      G04018214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Tighten the other bolts.

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

  27. INSTALL NO. 2 IDLER PULLEY SUB-ASSEMBLY
    1. Install the plate and idler pulley with the bolt.

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

  28. INSTALL FRONT DIFFERENTIAL ASSEMBLY (See  INSTALLATION  )
  29. INSTALL GENERATOR ASSEMBLY (See  INSTALLATION  )
  30. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY RH
    1. Install a new gasket as shown in the illustration.

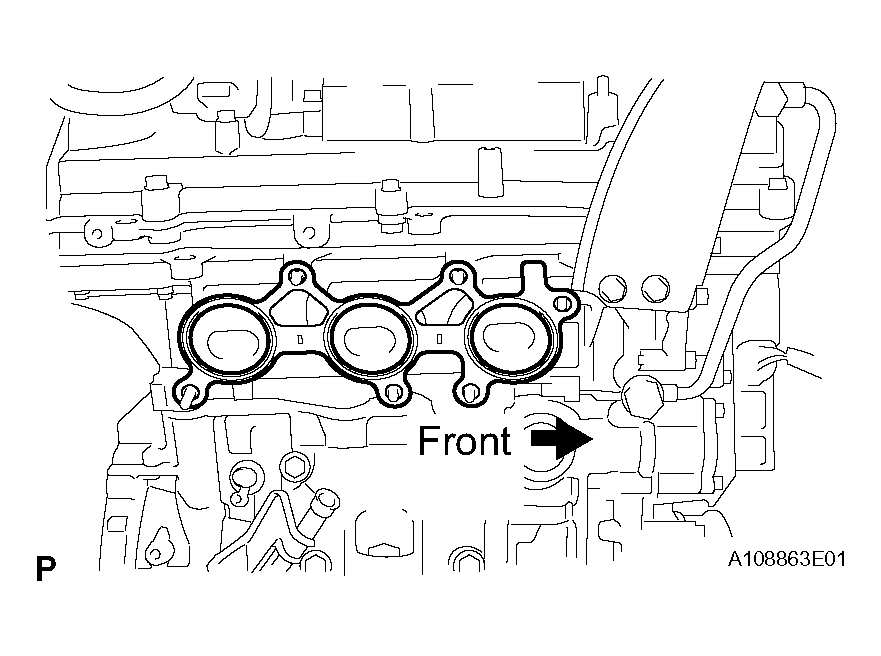

      Fig 10: Identifying Exhaust Manifold Sub-Assembly RH
      G04018215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the exhaust manifold with the 6 nuts.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

      NOTE: Do not damage the stud bolt when installing the exhaust manifold.

      HINT:

      First tighten either of the 2 nuts indicated by the arrows in the illustration.

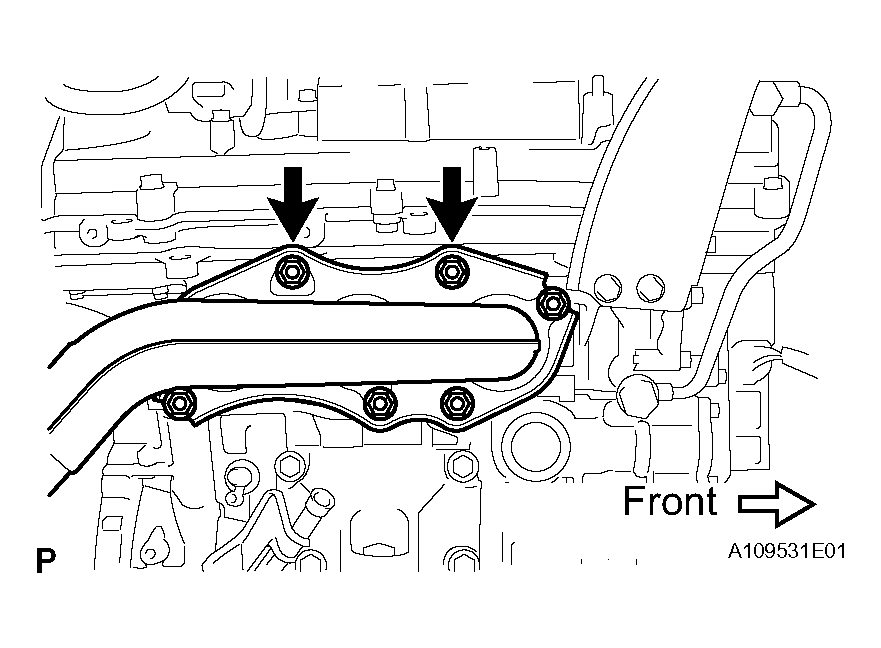

      Fig 11: Identifying Exhaust Manifold With Nuts
      G04018216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY LH

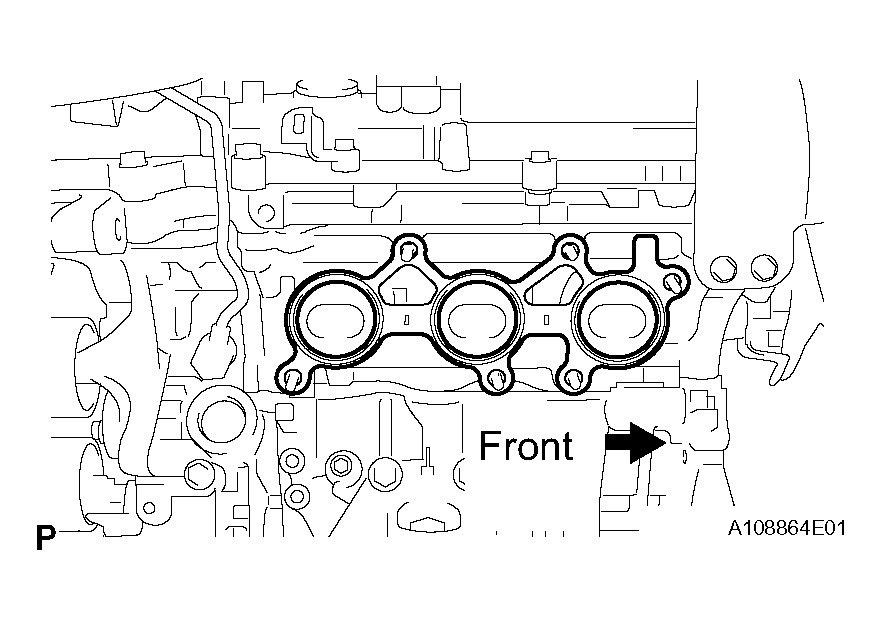

    1. Install a new gasket as shown in the illustration.
      Fig 12: Identifying Exhaust Manifold Sub-Assembly LH
      G04018217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the exhaust manifold with the 6 nuts.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

      NOTE: Do not damage the stud bolt when installing the exhaust manifold.

      HINT:

      First tighten either of the 2 nuts indicated by the arrows in the illustration.

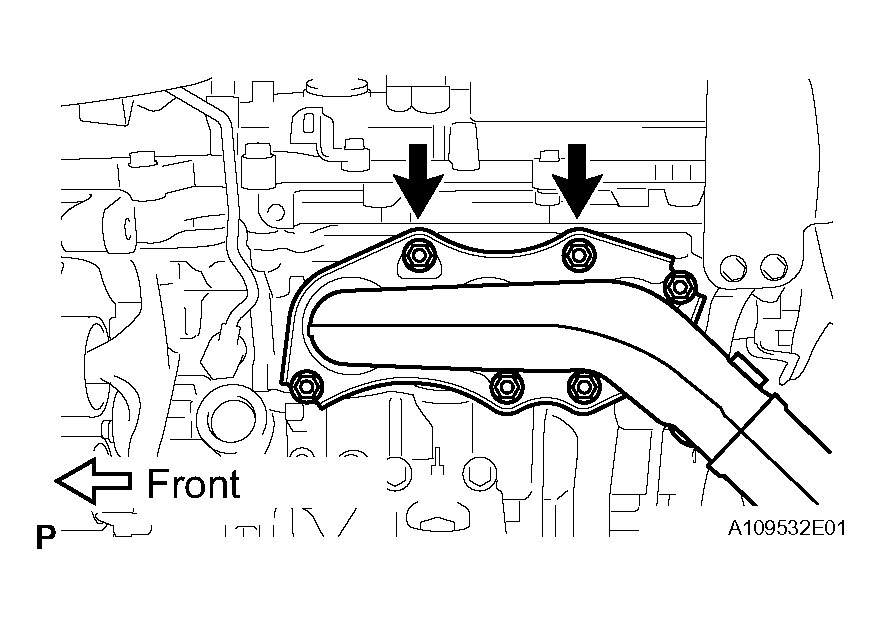

      Fig 13: Identifying Exhaust Manifold With Nuts
      G04018218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. INSTALL OIL LEVEL GAUGE SUB-ASSEMBLY
    1. Install a new O-ring to the oil level gauge guide.
    2. Apply a light coat of engine oil to the O-ring.
    3. Push in the oil level gauge guide end into the guide hole.
    4. Install the oil level gauge guide No. 1 with the bolt.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    5. Install the oil level gauge guide No. 2 with the bolt.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

    6. Install the oil level gauge.
  33. INSTALL ENGINE WIRE
    1. Install the engine wire to the engine assembly.
  34. REMOVE ENGINE ASSEMBLY
    1. Remove the bolts and engine from the engine stand.
      Fig 14: Identifying Bolts And Engine From Engine Stand
      G04018219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. INSTALL FRONT ENGINE MOUNTING INSULATOR
    1. Install the front suspension crossmember subassembly with the 2 bolts.

      Torque: 35 N*m (357 kgf*cm, 26 ft.*lbf)

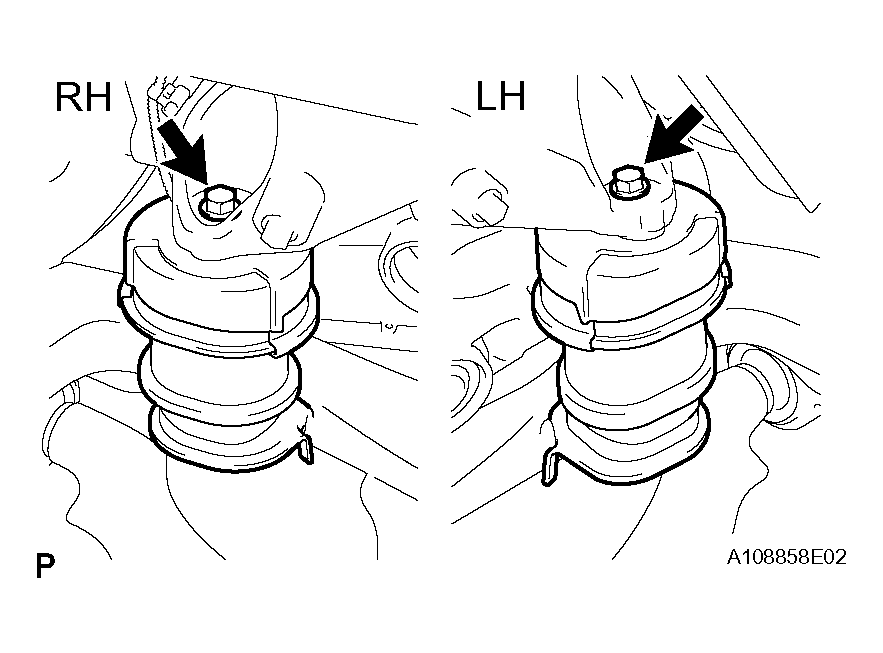

      Fig 15: Identifying Front Suspension Crossmember Subassembly
      G04018220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. INSTALL DRIVE PLATE AND RING GEAR SUBASSEMBLY
    1. Using SST, hold the crankshaft.

      SST 09213-70011 (09213-70020), 09330-00021

    2. Apply adhesive to 2 or 3 threads of the mounting bolts end.

      Adhesive:

      Part No. 08833-00070, THREE BOND 1324 or equivalent

    3. Install the front spacer, drive plate and rear spacer on the crankshaft.

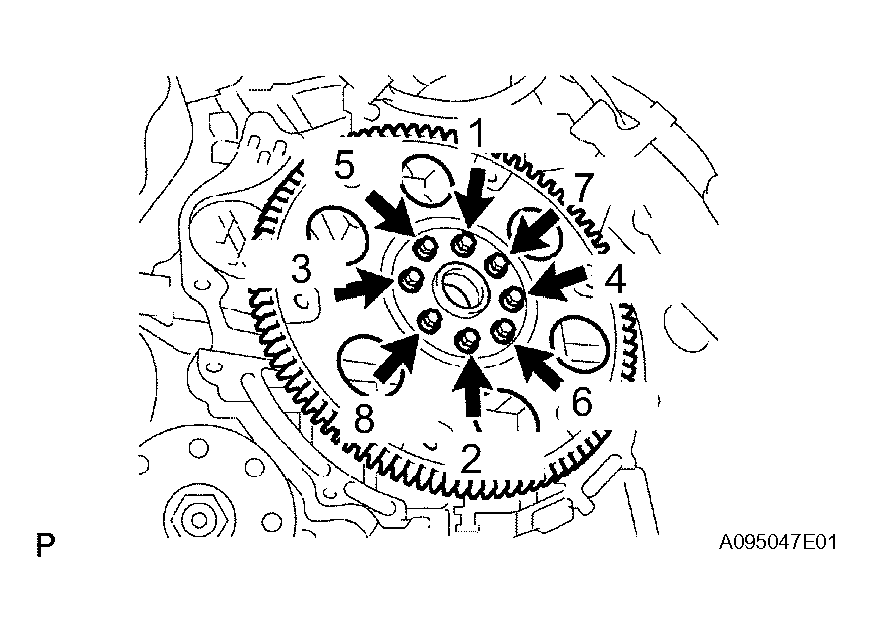

    4. Install and tighten the 8 mounting bolts uniformly in several steps.
      Fig 16: Identifying Front Spacer, Drive Plate And Rear Spacer On Crankshaft
      G04018221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 83 N*m (850 kgf*cm, 61 ft.*lbf)

      NOTE: Do not start the engine for at least 1 hour after installing.
  37. INSTALL AUTOMATIC TRANSMISSION ASSEMBLY (for 2WD) (See  INSTALLATION  )
    Fig 17: Identifying Automatic Transmission Assembly
    G04018222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. INSTALL AUTOMATIC TRANSMISSION ASSEMBLY (for 4WD) (See  INSTALLATION  )
  39. INSTALL FRONT DRIVE SHAFT ASSEMBLY RH (for 4WD) (See  INSTALLATION  )
  40. INSTALL FRONT DRIVE SHAFT ASSEMBLY LH (for 4WD) (See  INSTALLATION  )
  41. INSTALL ENGINE AND TRANSMISSION (for 2WD)

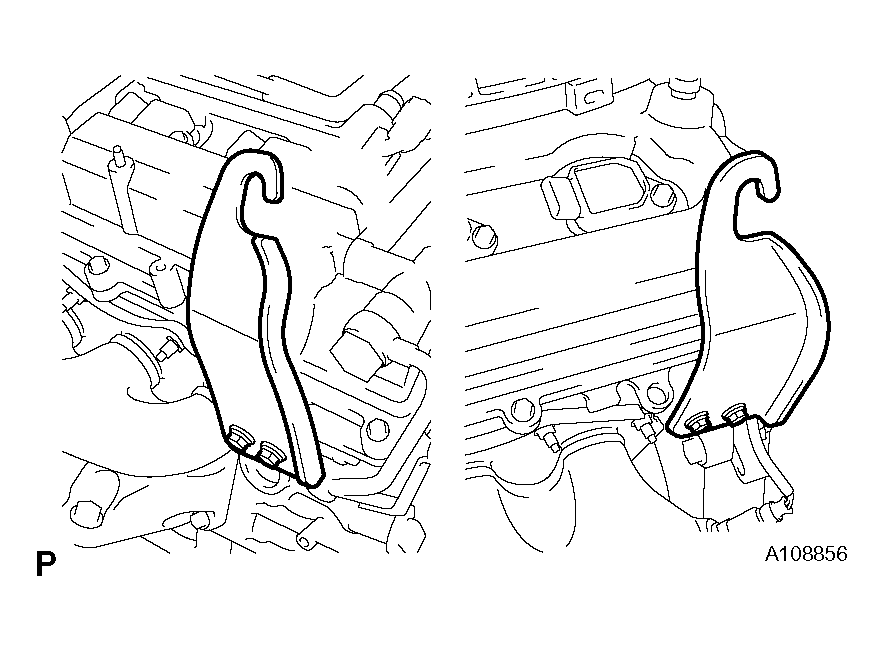

    1. Remove the engine hanger No. 1 and No. 2.
    2. Set the engine lifter.
    3. Operate the engine lifter, then install the engine to the vehicle.
      Fig 18: Identifying Engine And Transmission
      G04018223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the engine and transmission with crossmember sub-assembly with the 12 bolts.

      Torque: 167 N*m (1,700 kgf*cm, 123 ft.*lbf) for bolt A

      204 N*m (2,080 kgf*cm, 150 ft.*lbf) for bolt B

      50 N*m (510 kgf*cm, 37 ft.*lbf) for bolt C 49 N*m (500 kgf*cm, 36 ft.*lbf) for bolt D

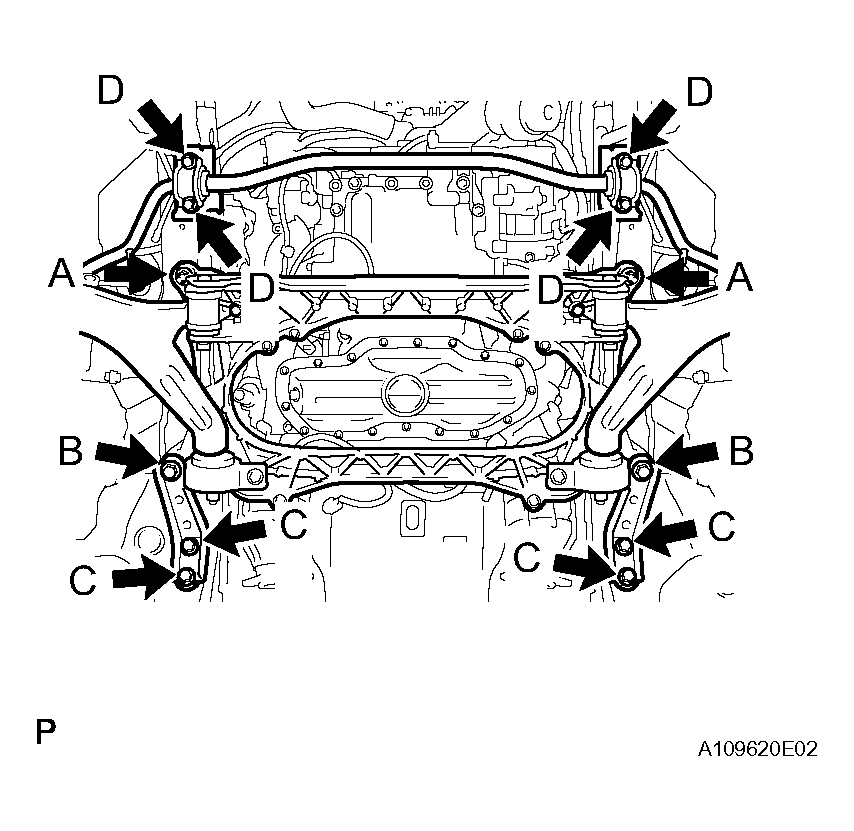

      Fig 19: Identifying Engine And Transmission With Crossmember Sub-Assembly
      G04018224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the engine rear mounting member with the 4 bolts.

      Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)

  42. INSTALL ENGINE AND TRANSMISSION (for 4WD)
    1. Remove the engine hanger No. 1 and No. 2.
    2. Set the engine lifter.
    3. Operate the engine lifter, then install the engine to the vehicle.
      Fig 20: Locating Engine Rear Mounting Member Retaining Bolts
      G04018227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

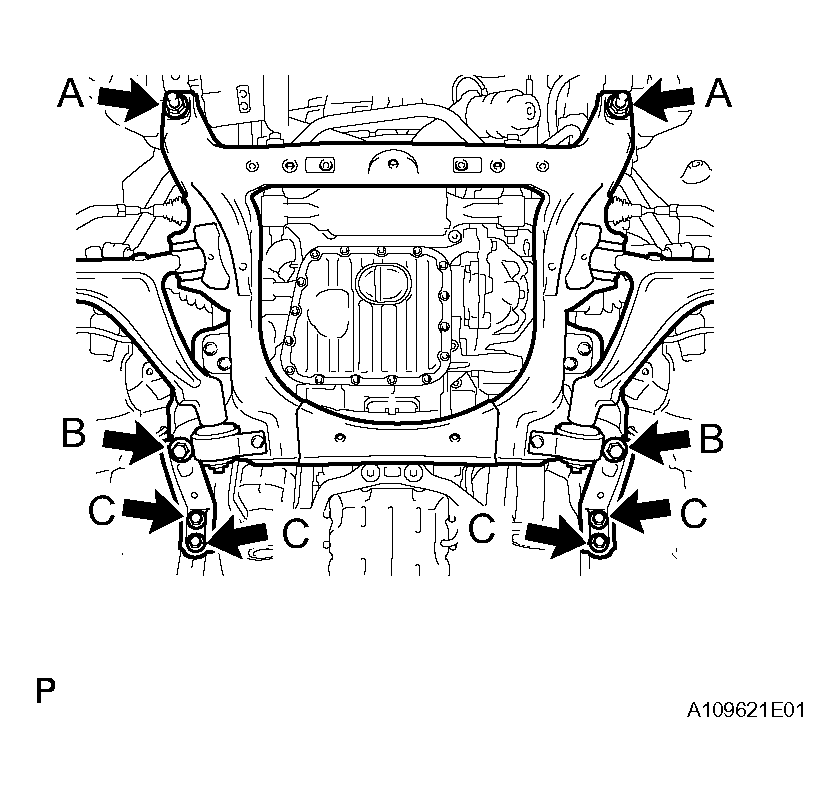

    4. Install the engine and transmission with crossmember sub-assembly with the 8 bolts.

      Torque: 167 N*m (1,700 kgf*cm, 123 ft.*lbf) for bolt A

      165 N*m (1,683 kgf*cm, 121 ft.*lbf) for bolt B

      50 N*m (550 kgf*cm, 37 ft.*lbf) for bolt C

      Fig 21: Identifying Engine And Transmission With Crossmember Sub-Assembly
      G04018226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the engine rear mounting member with the 4 bolts.

      Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)

      Fig 22: Locating Engine Rear Mounting Member Retaining Bolts
      G04018227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. CONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY (for 2WD) (See  INSTALLATION  )
  44. INSTALL FLOOR SHIFT GEAR SHIFTING ROD SUBASSEMBLY (for 4WD) (See  INSTALLATION  )
  45. INSTALL POWER STEERING LINK WIRE HARNESS (for 2WD) (See  INSTALLATION  )
  46. INSTALL NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY (for 2WD) (See  INSTALLATION  )
  47. INSTALL NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY (for 4WD) (See  INSTALLATION  )
  48. INSTALL FRONT LOWER BALL JOINT ASSEMBLY RH (for 4WD) (See  INSTALLATION  )
  49. INSTALL FRONT LOWER BALL JOINT ASSEMBLY LH (for 4WD) (See  INSTALLATION  )
  50. INSTALL FRONT SHOCK ABSORBER ASSEMBLY RH (for 2WD) (See  INSTALLATION  )
  51. INSTALL FRONT SHOCK ABSORBER ASSEMBLY LH (for 2WD) (See  INSTALLATION  )
  52. INSTALL SHOCK ABSORBER ASSEMBLY FRONT RH (for 4WD) (See  INSTALLATION  )
  53. INSTALL SHOCK ABSORBER ASSEMBLY FRONT LH (for 4WD) (See  INSTALLATION  )
  54. INSTALL TIE ROD ASSEMBLY RH (for 2WD) (See  INSTALLATION  )
  55. INSTALL TIE ROD ASSEMBLY LH (for 2WD) (See  INSTALLATION  )
  56. INSTALL TIE ROD ASSEMBLY RH (for 4WD) (See  INSTALLATION  )
  57. INSTALL TIE ROD ASSEMBLY LH (for 4WD) (See  INSTALLATION  )
  58. INSTALL FRONT AXLE HUB NUT RH (for 4WD) (See  INSTALLATION  )
  59. INSTALL FRONT AXLE HUB NUT LH (for 4WD) (See  INSTALLATION  )
  60. INSTALL FRONT SUSPENSION MEMBER PROTECTOR LOWER (for 2WD)
    1. Install the protector with the 4 bolts.

      Torque:

      8.0 N*m (82 kgf*cm, 71 in.*lbf)

  61. CONNECT HEIGHT CONTROL SENSOR LINK
    1. Connect the height control sensor link and install it with the nut.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

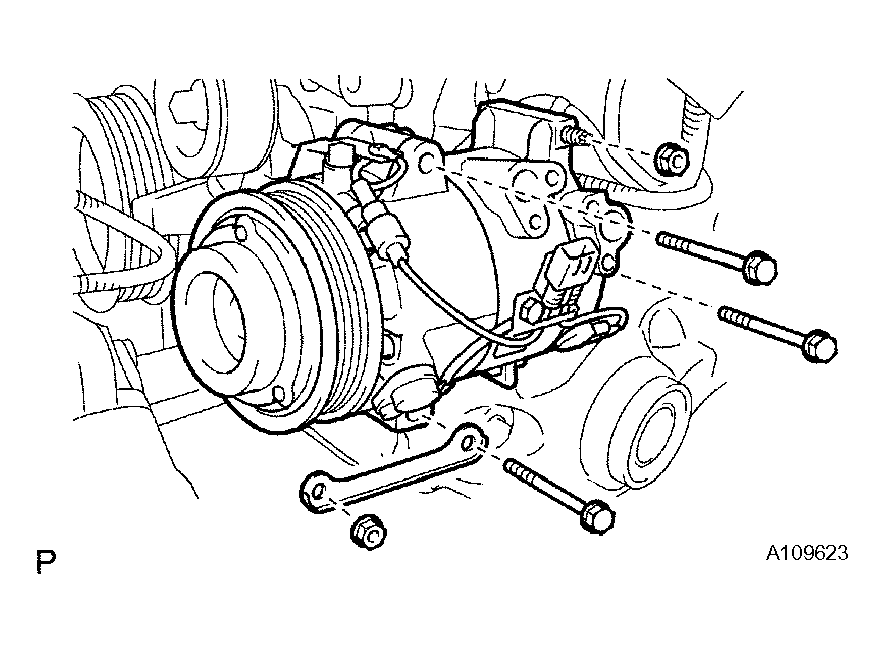

  62. CONNECT WITH PULLEY COMPRESSOR ASSEMBLY (for 2WD)
    1. Using an E8 "Torx" socket, install the with pulley compressor with the stud bolt.

      Torque: 10 N*m (102 kgf*cm, 89 ft.*lbf)

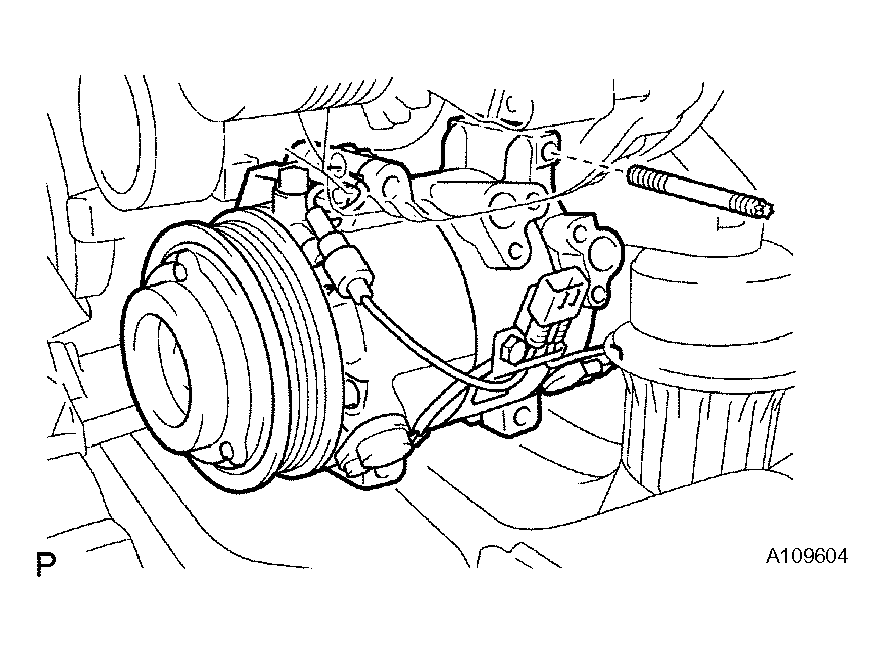

      Fig 23: Identifying With Pulley Compressor With Stud Bolt
      G04018228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the with pulley compressor with the 3 bolts and nut.

      Torque: 25 N*m (255 kgf*cm, 18 ft.*lbf)

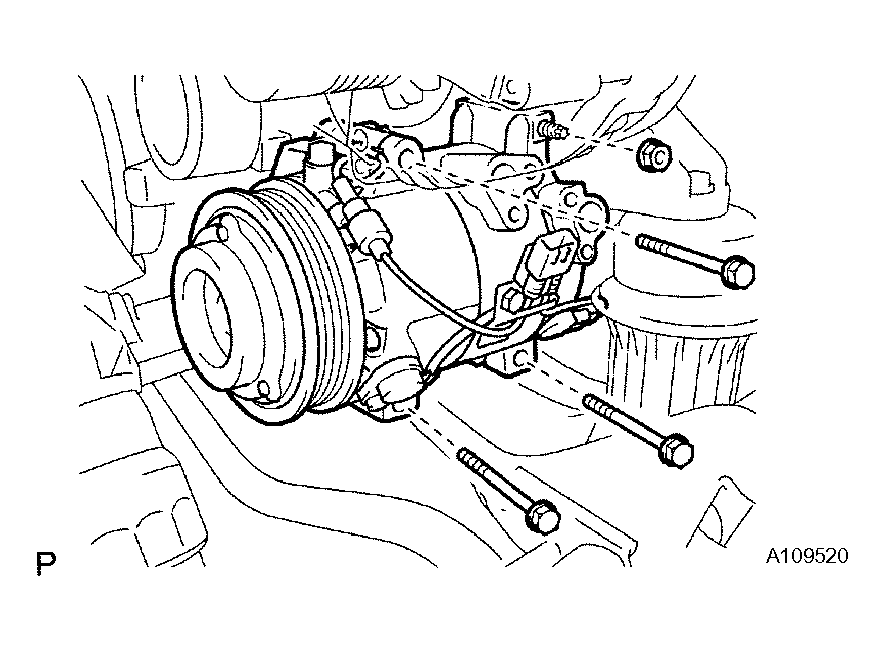

      Fig 24: Identifying With Pulley Compressor With Bolts And Nut
      G04018229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  63. CONNECT WITH PULLEY COMPRESSOR ASSEMBLY (for 4WD)
    1. Using an E8 "Torx" socket, install the with pulley compressor with the stud bolt.

      Torque: 10 N*m (102 kgf*cm, 89 ft.*lbf)

      Fig 25: Identifying With Pulley Compressor Assembly
      G04018230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Temporarily install the 2 bolts and nut to the pulley compressor.
    3. Install the bracket with the bolt and nut.
    4. Tighten the 3 bolts and 2 nuts of the compressor and bracket.

      Torque: 25 N*m (255 kgf*cm, 18 ft.*lbf)

    5. Connect the magnetic clutch connector.
      Fig 26: Identifying Magnetic Clutch Connector
      G04018231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  64. INSTALL FAN AND GENERATOR V BELT (See  INSTALLATION   )
  65. CONNECT ENGINE WIRE
    1. Connect the ground cable and install it with the bolt.

      Torque: 10 N*m (102 kgf*cm, 89 ft.*lbf)

    2. Connect the wire to the engine room No. 1 relay block, junction block. Then, install it with the nut.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

    3. Install the engine room No. 1 relay block, junction block cover.
    4. Connect the battery positive cable (+) and install it with the nut.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

    5. Connect the ECM connectors.
    6. Connect the connector holder.

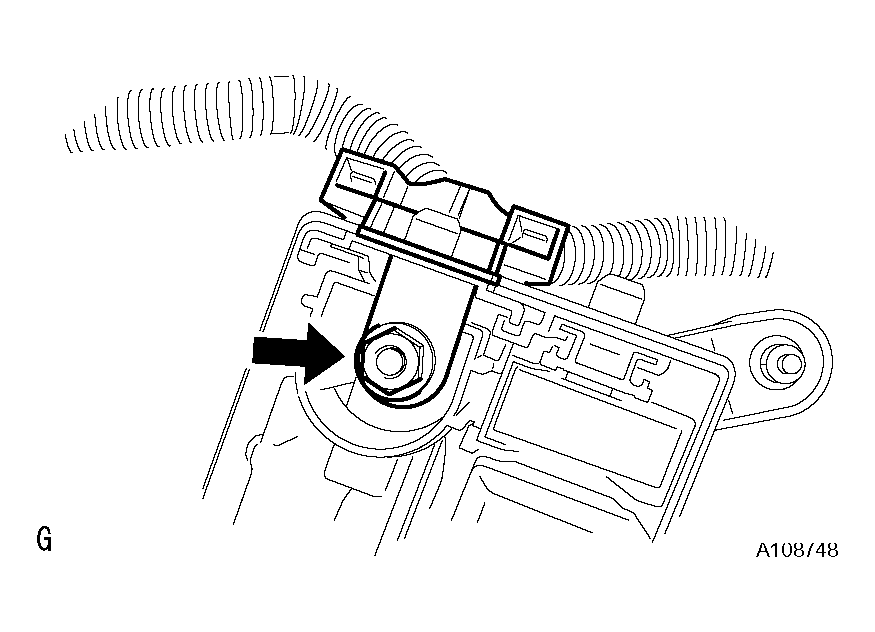

      Fig 27: Identifying Engine Room Relay Block, Junction Block Cover
      G04018232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  66. INSTALL ENGINE ROOM ECM COVER
    1. Install the engine room ECM cover with the 3 bolts.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

  67. CONNECT FUEL MAIN TUBE (See  INSTALLATION  )
    Fig 28: Locating ECM Cover Mounting Bolts
    G04027244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  68. CONNECT HEATER WATER OUTLET HOSE A
    1. Connect the outlet hose.

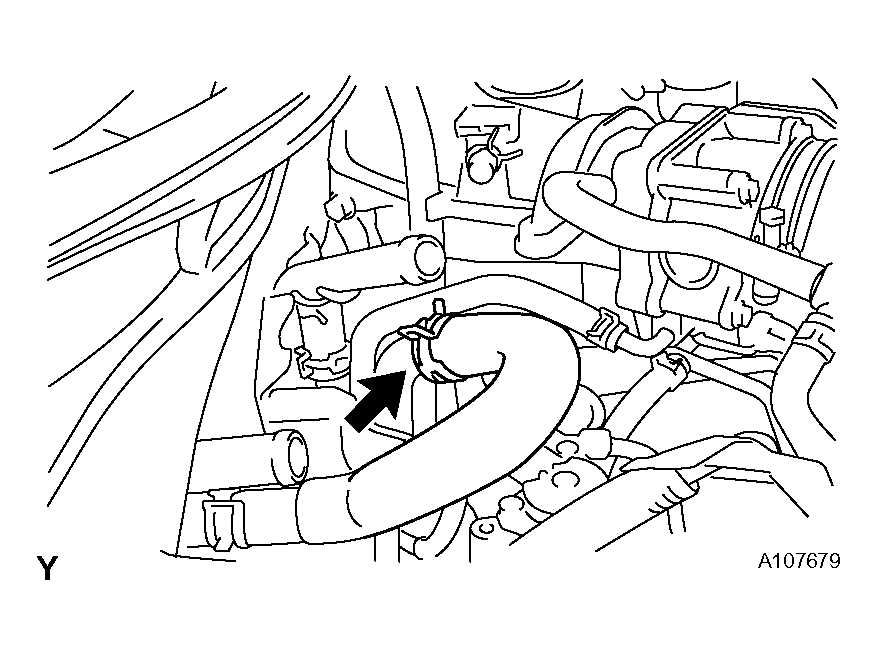

      Fig 29: Identifying Heater Water Outlet Hose
      G04018234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  69. CONNECT HEATER WATER INLET HOSE A
    1. Connect the inlet hose.
      Fig 30: Identifying Heater Water Inlet Hose
      G04018235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  70. CONNECT UNION TO CHECK VALVE HOSE
    1. Connect the hose to the surge tank.
  71. CONNECT RADIATOR RESERVE TANK HOSE
  72. CONNECT RADIATOR HOSE INLET (See  INSTALLATION  )
  73. CONNECT RADIATOR HOSE OUTLET (See  INSTALLATION  )
  74. INSTALL AIR CLEANER ASSEMBLY WITH HOSE
    Fig 31: Identifying Air Cleaner Assembly With Hose
    G04018236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Tighten the hose clamp.
    2. Install the air cleaner cap together with the 3 bolts.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

    3. Install the EVAP VSV to the air cleaner hose.

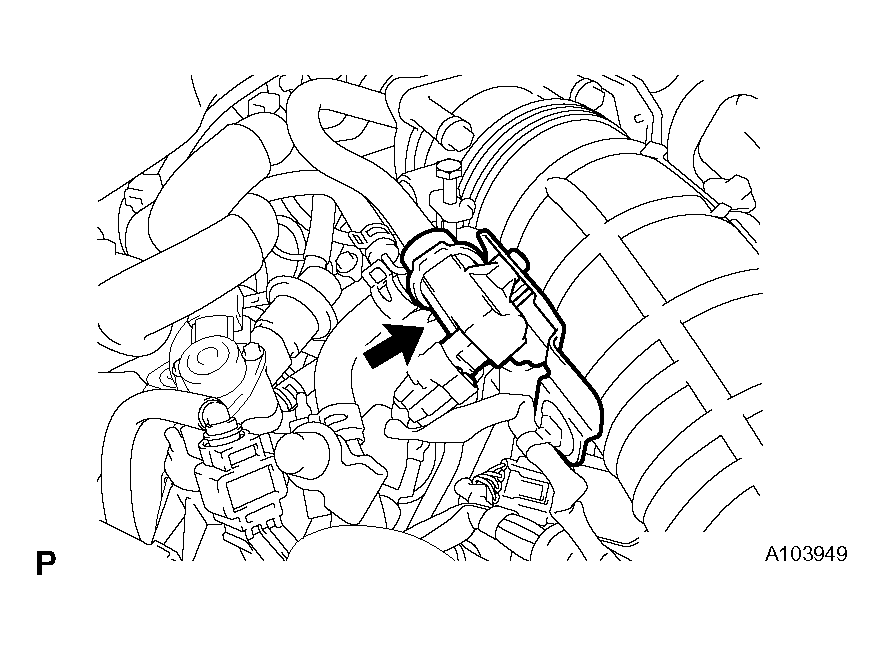

      Fig 32: Identifying EVAP VSV To Air Cleaner Hose
      G04018237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the MAF meter connector and clamp to the air cleaner.

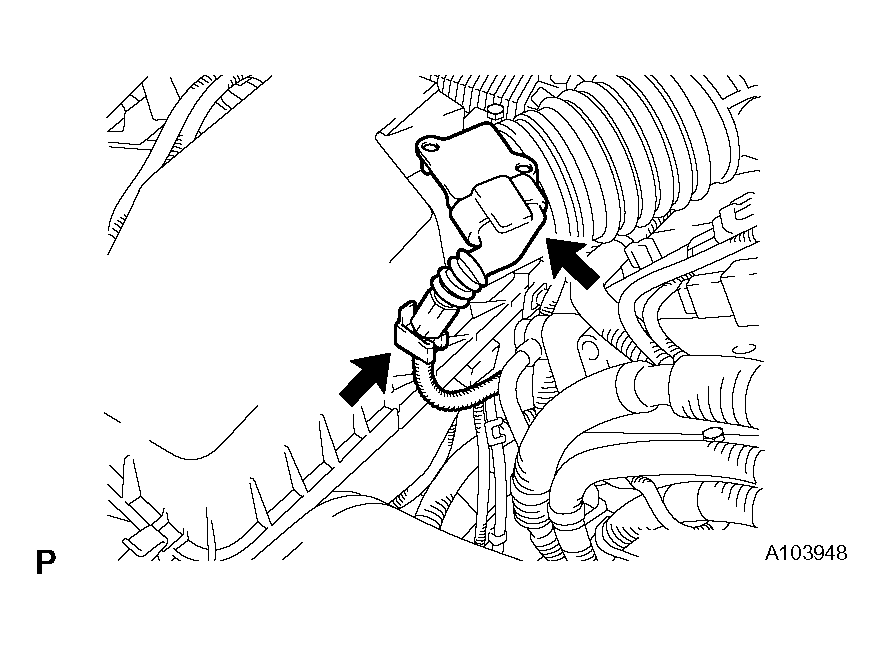

      Fig 33: Identifying MAF Meter Connector And Clamp To Air Cleaner
      G04018238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Connect the ventilation hose to the cylinder head cover with the clamp.
      Fig 34: Locating Ventilation Hose To Cylinder Head Cover
      G04018097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  75. INSTALL NO. 1 AIR CLEANER INLET
    1. Install the air cleaner inlet with the bolt.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

  76. INSTALL FRONT PROPELLER SHAFT ASSEMBLY (for 4WD) (See  INSTALLATION  )
  77. INSTALL PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY (See  INSTALLATION  )
  78. INSTALL FRONT EXHAUST PIPE ASSEMBLY (See  INSTALLATION  )
    Fig 35: Identifying Propeller With Center Bearing Shaft Assembly
    G04018240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  79. INSTALL NO. 2 ENGINE UNDER COVER (for 2WD)
    1. Install the under cover with the 4 screws, 2 grommets and 2 spacers.
  80. INSTALL ENGINE UNDER COVER (See  INSTALLATION  )
  81. INSTALL V-BANK COVER SUB-ASSEMBLY
    1. Install the V-bank cover with the 2 nuts.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

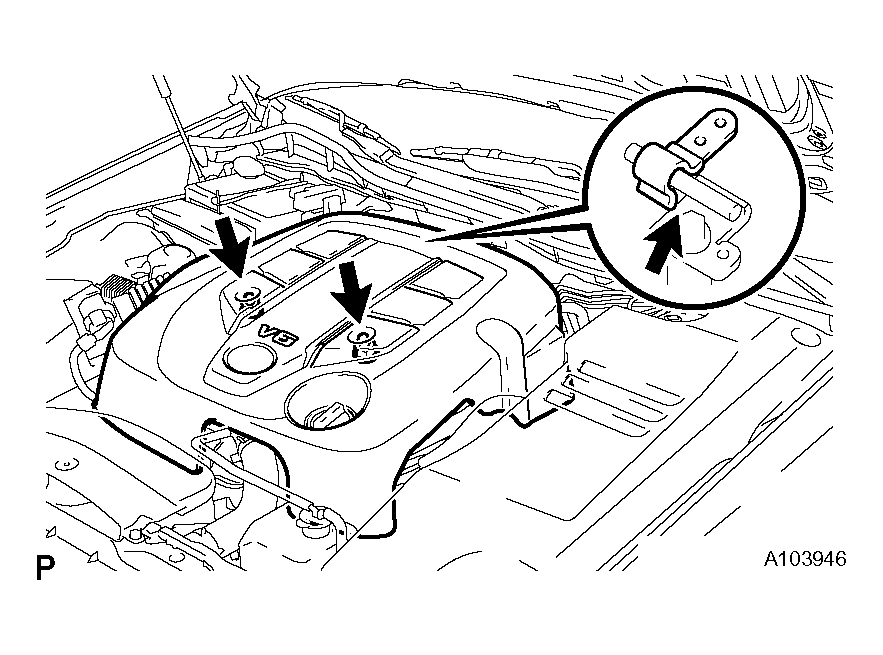

      Fig 36: Identifying V-Bank Cover Sub-Assembly
      G04018241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  82. INSTALL ENGINE ROOM COVER SIDE RH
    1. Install the side cover with the 2 clip and nut.

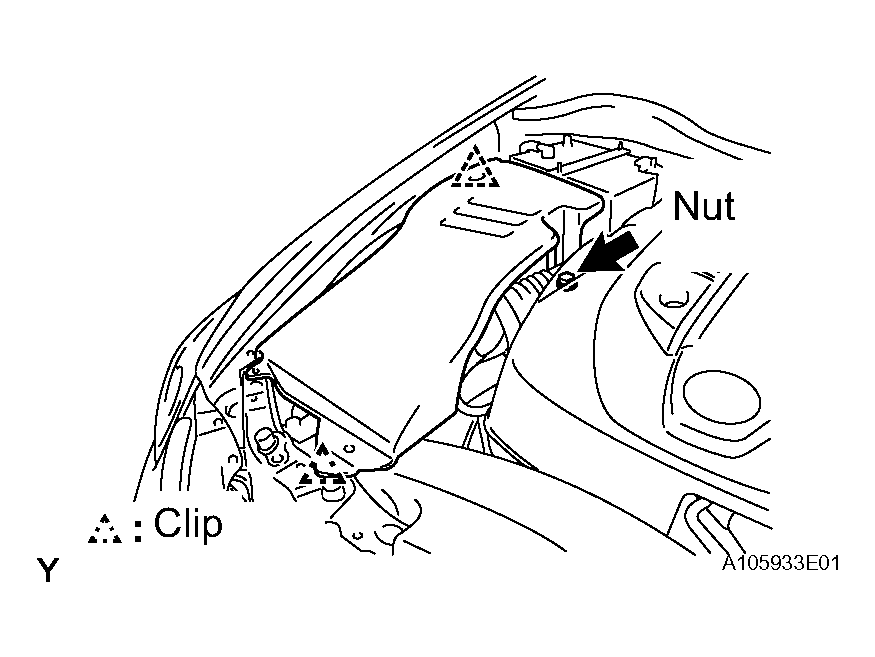

      Fig 37: Identifying Side Cover With Clip And Nut
      G04018242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  83. INSTALL ENGINE ROOM SIDE COVER LH
    1. Install the side cover with the 3 clips.
      Fig 38: Identifying Side Cover With Clips
      G04018243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

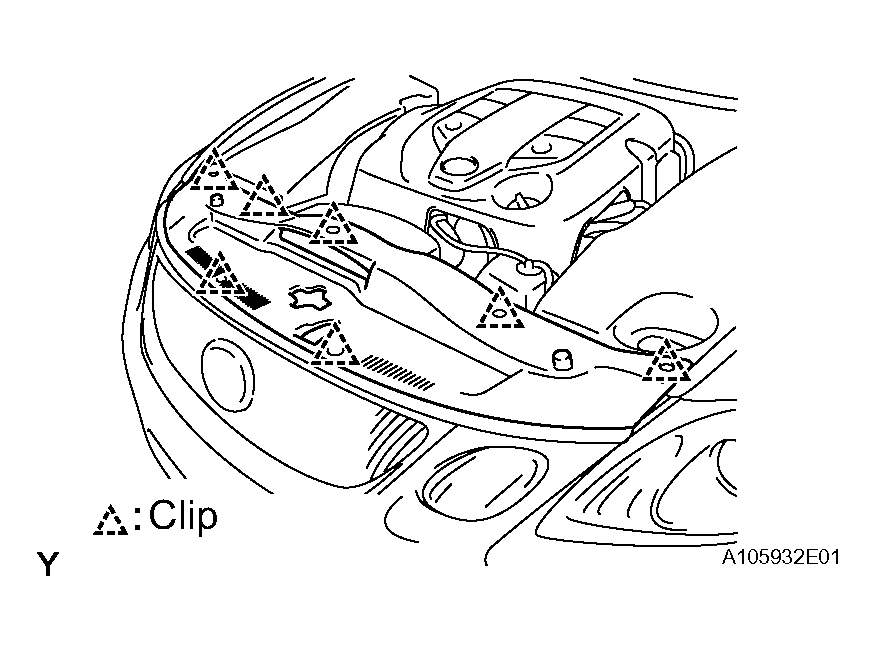

  84. INSTALL COOL AIR INTAKE DUCT SEAL
    1. Install the intake duct seal with the 7 clips.
  85. INSTALL FRONT WHEELS
  86. ADD ENGINE OIL (for 2WD) (See  REPLACEMENT  )
  87. ADD ENGINE OIL (for 4WD) (See  REPLACEMENT  )
  88. ADD AUTOMATIC TRANSMISSION FLUID (for 2WD) (See  REMOVAL  )
    Fig 39: Identifying Front Wheels
    G04018244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  89. ADD AUTOMATIC TRANSMISSION FLUID (for 4WD) (See  REMOVAL  )
  90. ADD FRONT DIFFERENTIAL OIL (for 4WD) (See  ADJUSTMENT  )
  91. ADD ENGINE COOLANT (See  ON-VEHICLE INSPECTION  )
  92. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  93. PERFORM INITIALIZATION
    1. Perform initialization procedure. (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
  94. CHECK SHIFT LEVER POSITION (for 2WD) (See  REMOVAL  )
  95. REMOVE CHECK SHIFT LEVER POSITION (for 4WD) (See  REMOVAL  )
  96. CHECK AND ADJUST FRONT WHEEL ALIGNMENT (See  ADJUSTMENT  )
  97. CHECK IGNITION TIMING (See  ENGINE   )
  98. CHECK IDLE SPEED (See  ON-VEHICLE INSPECTION   )
  99. CHECK CO / HC (See  ON-VEHICLE INSPECTION   )
  100. CHECK FOR ENGINE OIL LEAKS
  101. CHECK FOR ENGINE COOLANT LEAKS
  102. CHECK FOR FUEL LEAKS
  103. CHECK ENGINE OIL LEVEL
  104. CHECK AUTOMATIC TRANSMISSION FLUID LEVEL
  105. CHECK ENGINE COOLANT LEVEL
scientia non olet · About LEMON Manuals
