Water Pump: Installation

  1. INSTALL WATER PUMP ASSEMBLY
    1. Install a new gasket and the water pump with the 16 bolts.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf) for bolt A 9.1 N*m (93 kgf*cm, 81 in.*lbf) for bolts B and C

      NOTE:
      • Be sure to replace the 2 C bolts with new ones or reuse them after applying adhesive 1344.
      • Make sure that there is no oil on the threads of bolt A.

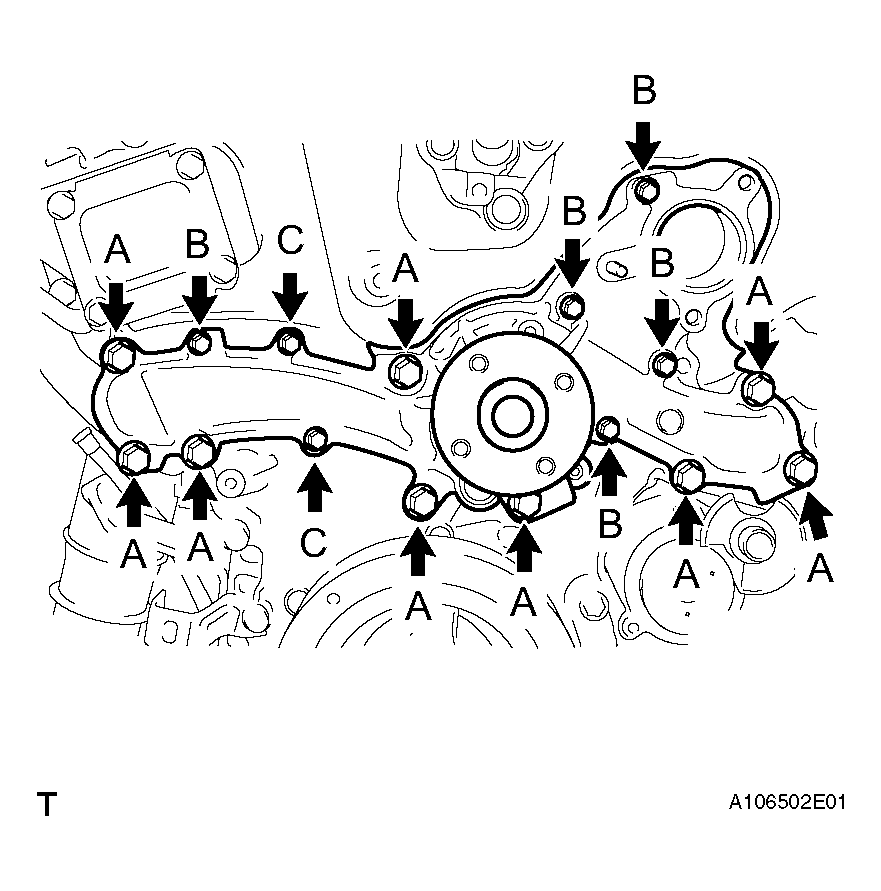

        Fig 1: Identifying New Gasket And Water Pump With Bolts
        G04018896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 2 IDLER PULLEY SUB-ASSEMBLY
    1. Install the V-ribbed belt tensioner pulley and cover plate with the bolt.

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

      CAUTION: Be careful when tightening the bolt because it is left-hand threaded.
      Fig 2: Identifying V-Ribbed Belt Tensioner Pulley And Cover Plate With Bolt
      G04018897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the pulley and cover plate with the bolt.

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

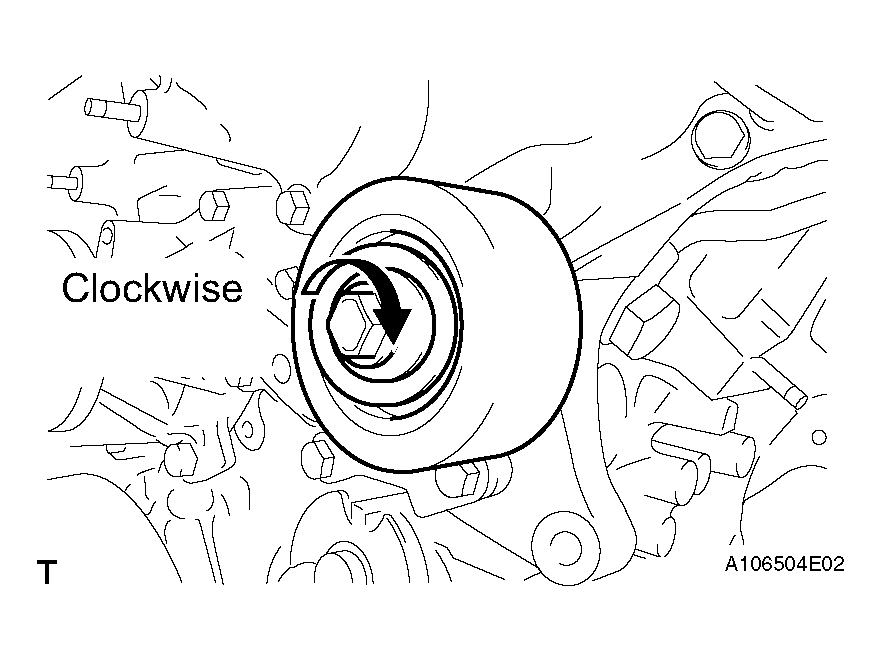

      Fig 3: Identifying Pulley And Cover Plate With Bolt
      G04018898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL WATER INLET ASSEMBLY
    1. Install a new gasket to the water inlet housing.
    2. Install a new O-ring to the water outlet pipe.

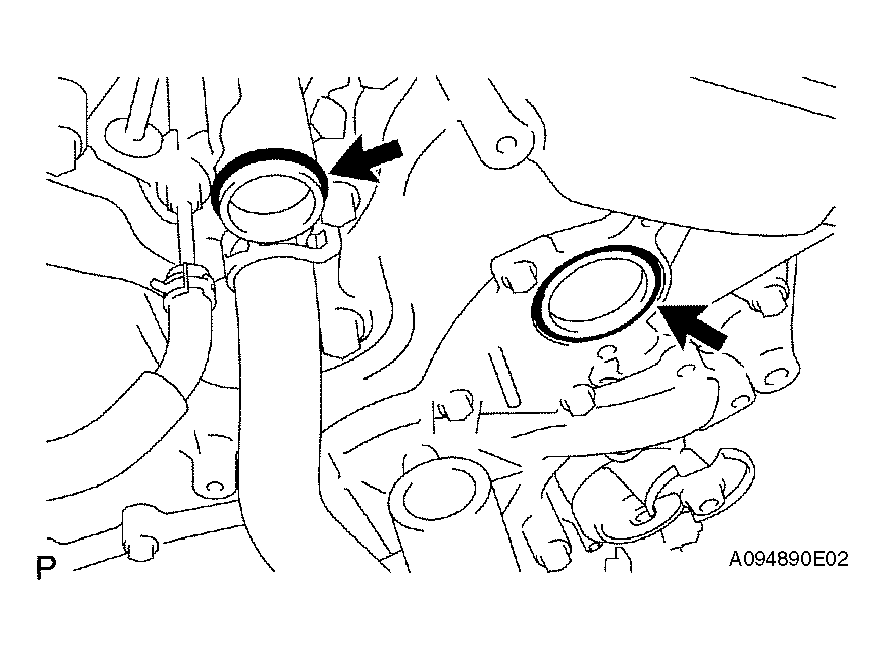

      Fig 4: Identifying New O-Ring To Water Outlet Pipe
      G04018899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the water inlet with the 4 bolts and nut.

      Torque: 10 N*m (192 kgf*cm, 7 ft.*lbf)

      NOTE: Be careful not to allow the O-ring to get caught between other parts.

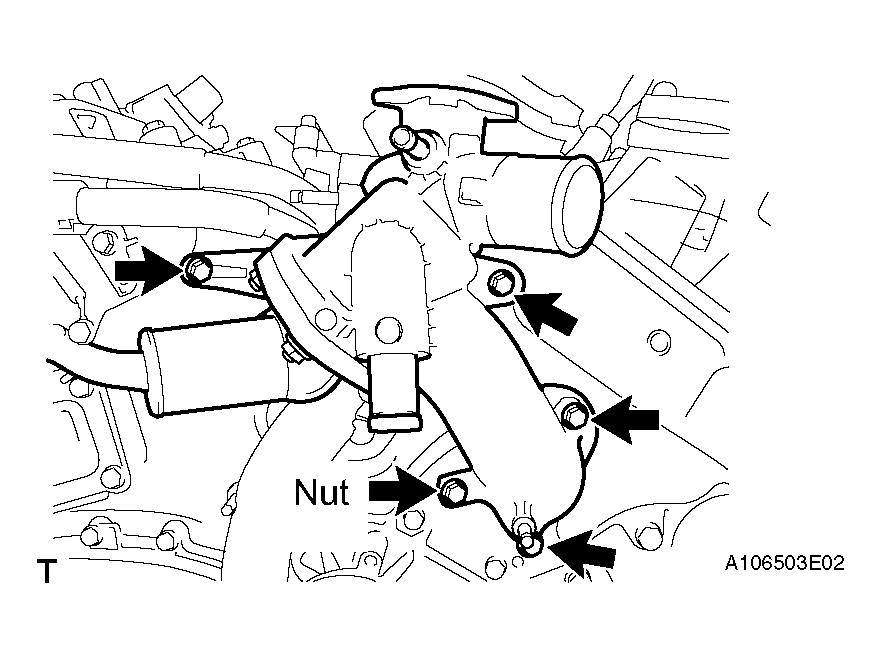

      Fig 5: Identifying Water Inlet With Bolts And Nut
      G04018900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the 5 hoses.

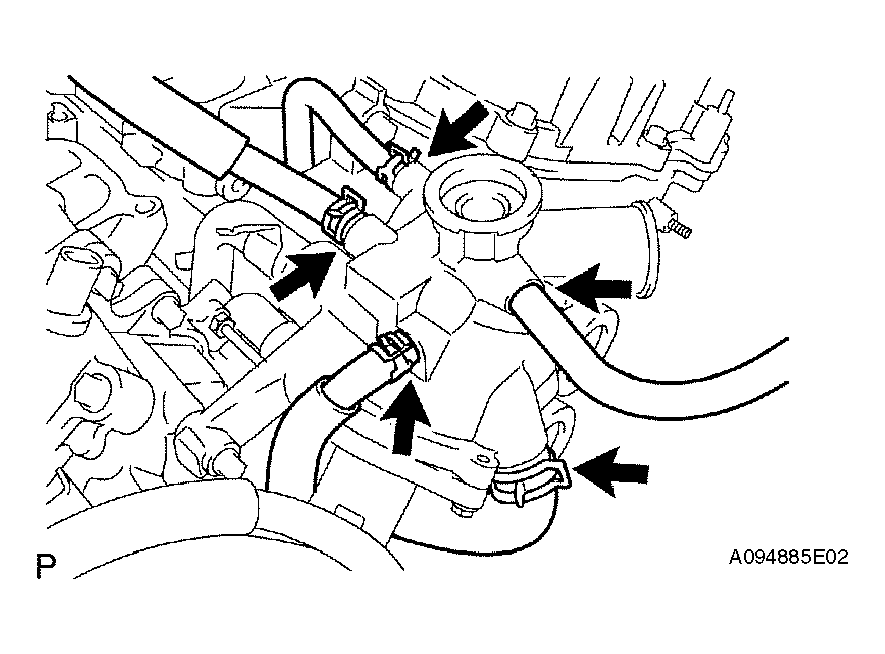

      Fig 6: Identifying Hoses
      G04018901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Connect the 2 radiator hoses.
  4. ADD ENGINE COOLANT (see   6  )
  5. CHECK FOR ENGINE COOLANT LEAKS
    1. Check for engine coolant leaks (see ON-VEHICLE INSPECTION  ).

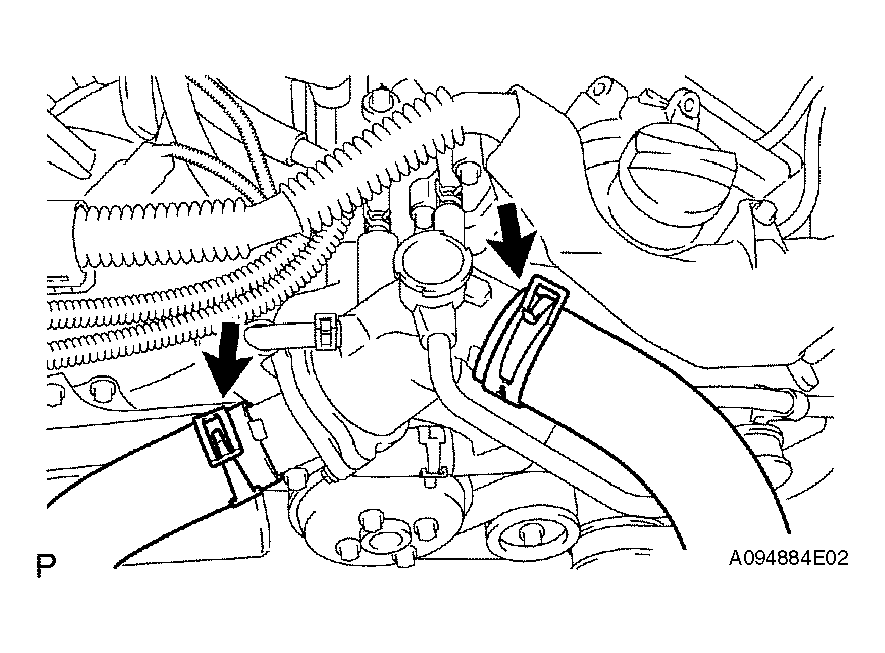

      Fig 7: Identifying Radiator Hoses Pipe
      G04018902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL WATER PUMP PULLEY
    1. Temporarily install the pulley with the 4 bolts.
    2. Using SST, hold the pulley and tighten the 4 bolts.

      SST 09960-10010 (09962-01000, 09963-00700)

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

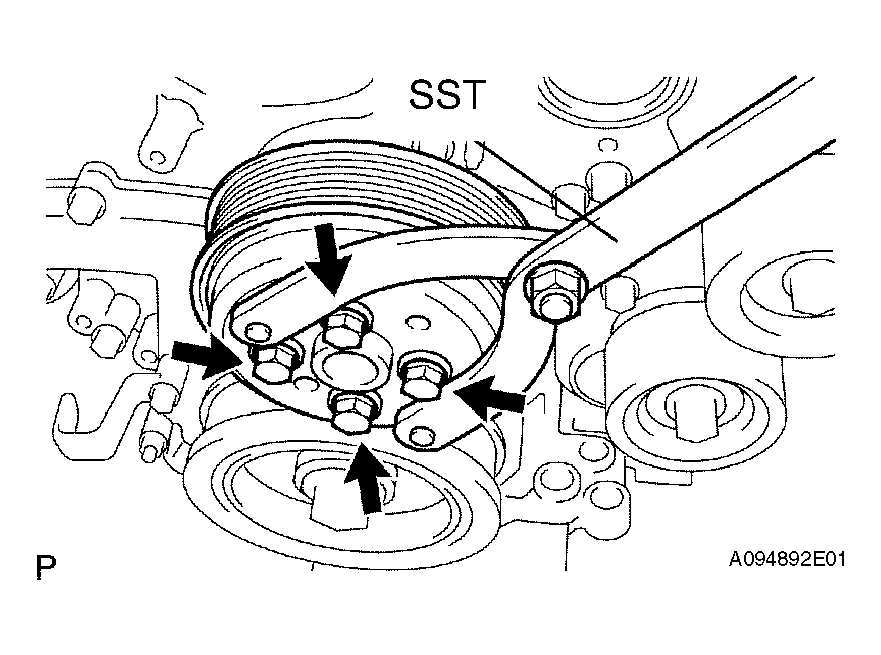

      Fig 8: Identifying Pulley With Bolts Temporarily Using SST
      G04018903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL INJECTOR DRIVER (See  INSTALLATION  )
  8. INSTALL NO. 1 ENGINE COVER (See  INSTALLATION  )
  9. INSTALL NO. 2 ENGINE COVER
    1. Install the cover with the 3 nuts.

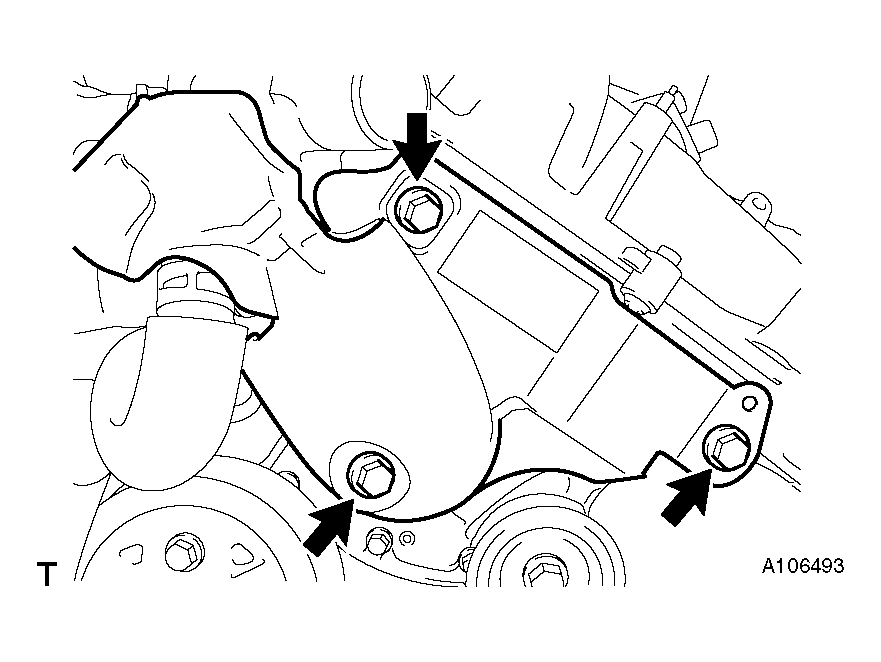

      Fig 9: Identifying Engine Cover With Nuts
      G04018904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL V-RIBBED BELT (See  INSTALLATION  )
  11. INSTALL V-BANK COVER SUB-ASSEMBLY
    1. Install the cover with the 2 nuts.

      Torque: 5.0 N*m (51 kgf*cm, 44 ft.*lbf)

  12. INSTALL NO. 1 AIR CLEANER INLET
    1. Install the inlet with the bolt.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

  13. INSTALL COOL AIR INTAKE DUCT SEAL (See  INSTALLATION  )
  14. INSTALL ENGINE UNDER COVER (See  INSTALLATION  )
  15. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  16. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
