Front Bumper: Installation

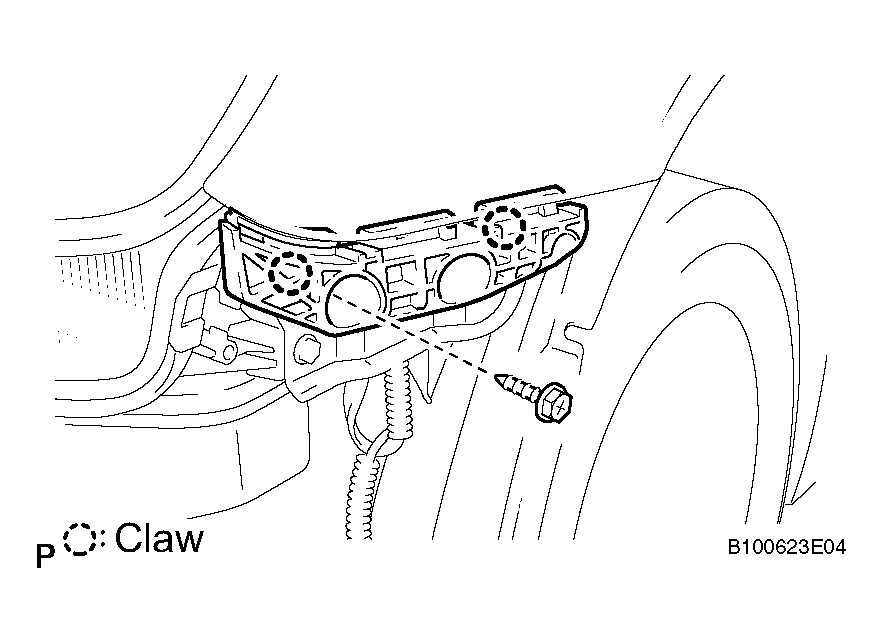

1. Attach the 2 claws to install the screw and retainer.
   Fig 1: Identifying Screw And Retainer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedures described for the LH side.

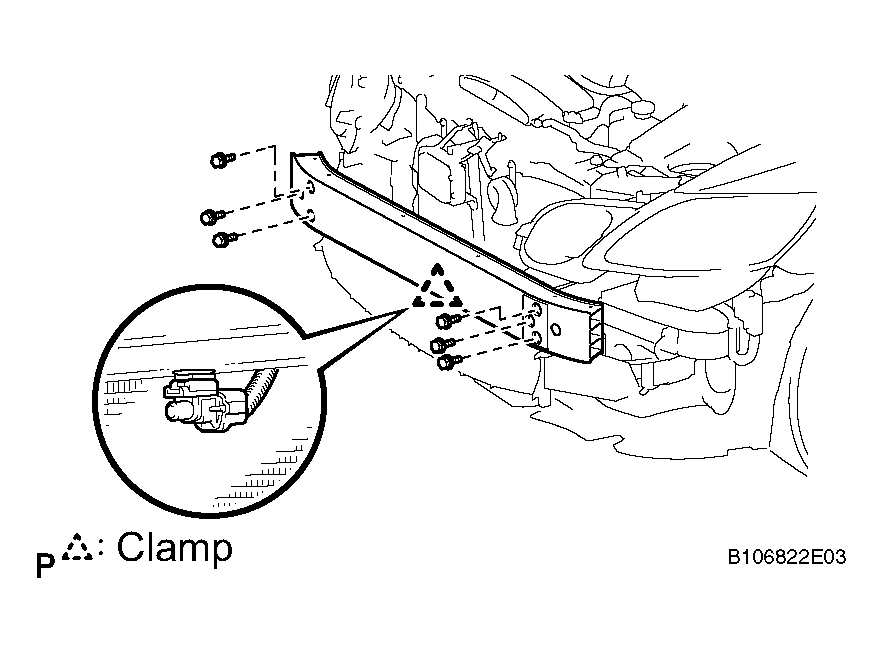

1. Install the reinforcement with the bolts.

   Torque: 70 N*m (714 kgf*cm, 52 ft.*lbf)

2. Install the cooler thermistor to the reinforcement.
   Fig 2: Identifying Cooler Thermistor To Reinforcement

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

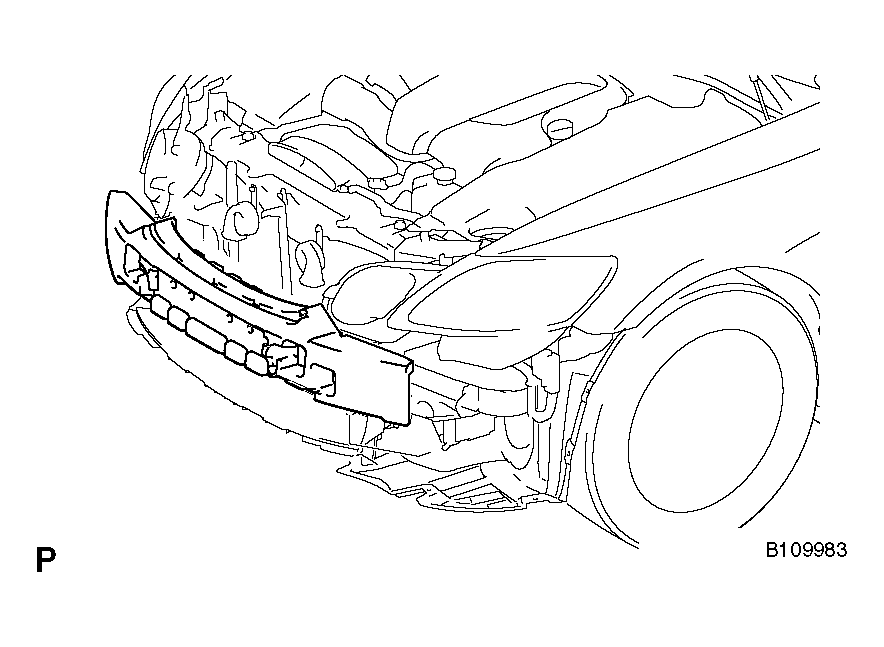

1. Install the energy absorber to the reinforcement.
   Fig 3: Identifying Energy Absorber To Reinforcement

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

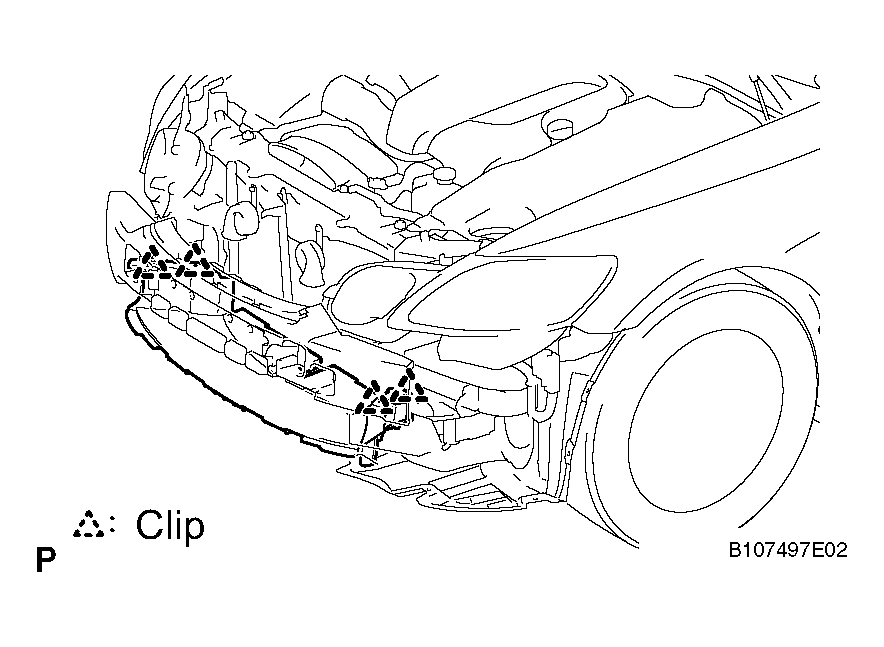

1. Install the cover with the 4 clips.
   Fig 4: Identifying Cover With Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the ultrasonic sensor connector.
2. Attach the 3 claws on the LH side.
3. Attach the 3 claws on the RH side.
   Fig 5: Identifying Ultrasonic Sensor Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

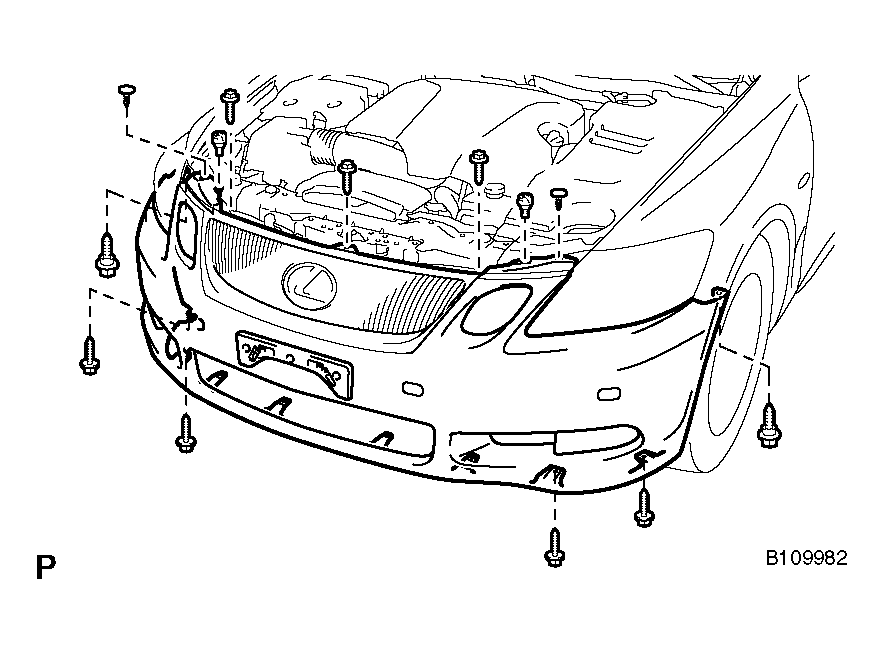

4. Install the bumper cover with the 2 clips, 6 screws and 5 bolts.
   Fig 6: Identifying Bumper Cover With 2 Clips, 6 Screws And 5 Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Attach the 2 claws to install the 2 garnishes.

1. Install the fender liner with the 2 clips.
   Fig 7: Identifying Fender Liner With 2 Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedures described for the LH side.

1. Install the under cover with the 3 clips and 10 screws.
   Fig 8: Identifying Engine Under Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

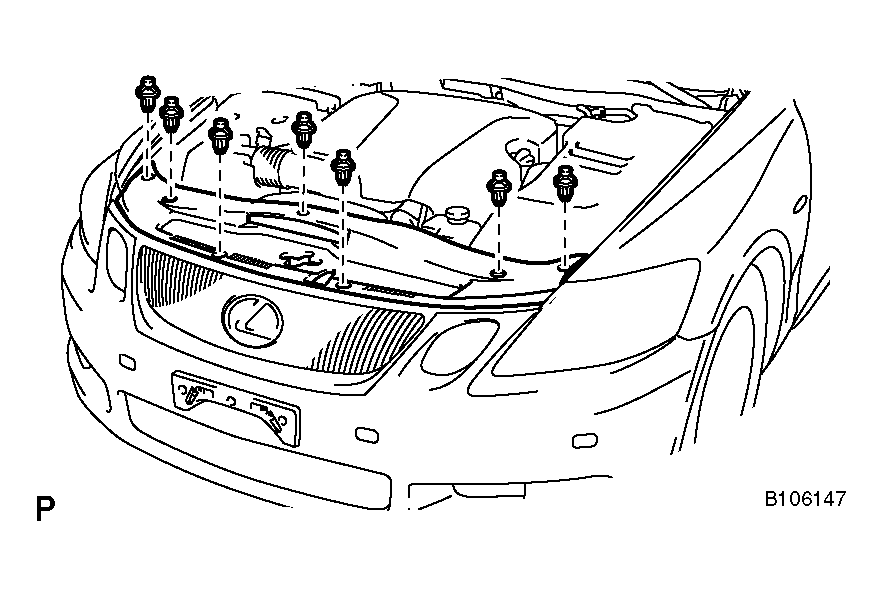

1. Install the duct seal with the 7 clips.
   Fig 9: Identifying Duct Seal With Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Perform initialization (see INITIALIZATION ).
   NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

1. Check the SRS warning light (see DTC CHECK / CLEAR ).
