Charging (3GR-FSE): Generator: Installation

INSTALL GENERATOR ASSEMBLY

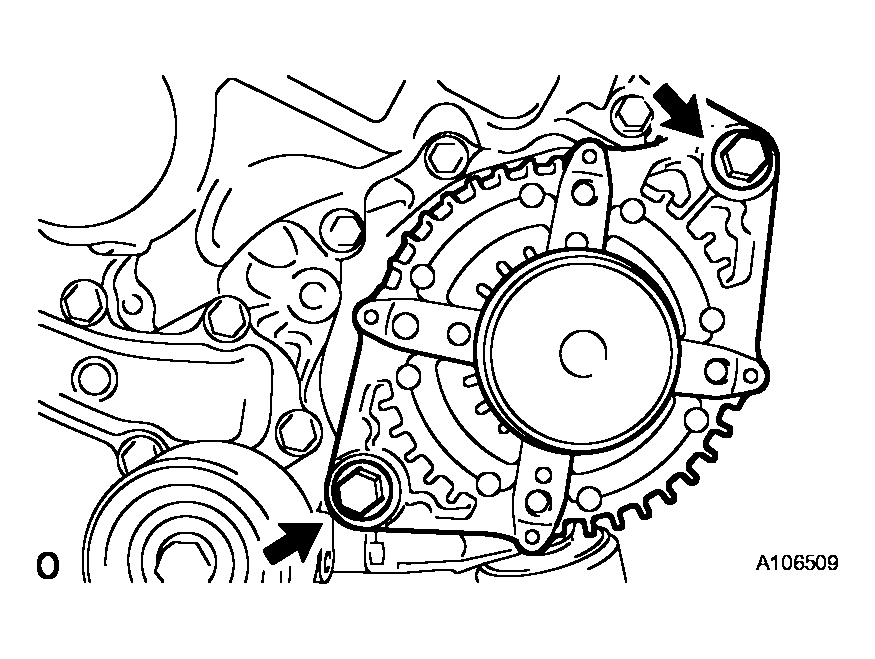

1. Install the generator with the 2 bolts.
  Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

  Fig 1: Installing Generator With 2 Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

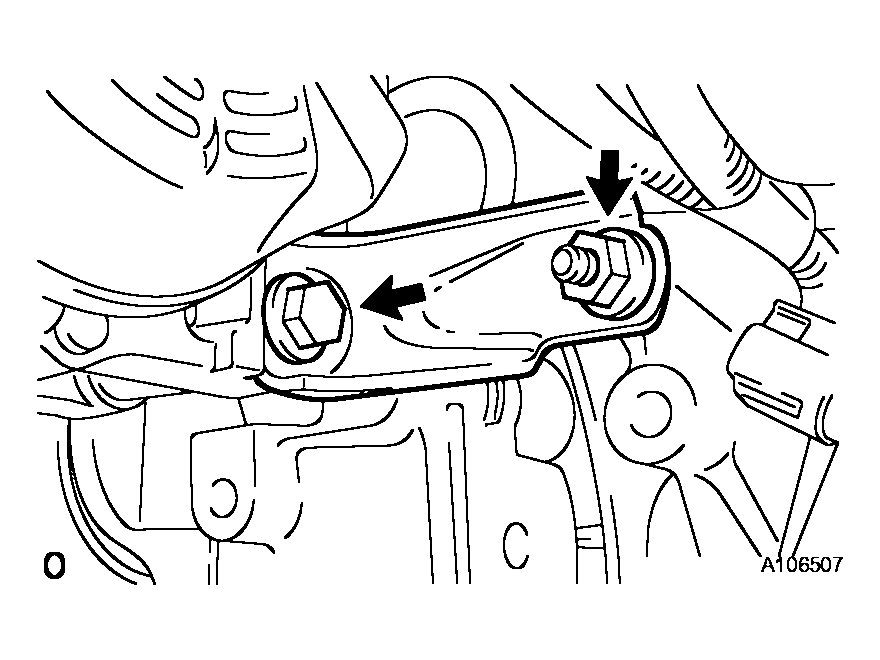

2. Install the bracket with the bolt and nut.
  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

  Fig 2: Installing Bracket With Bolt And Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

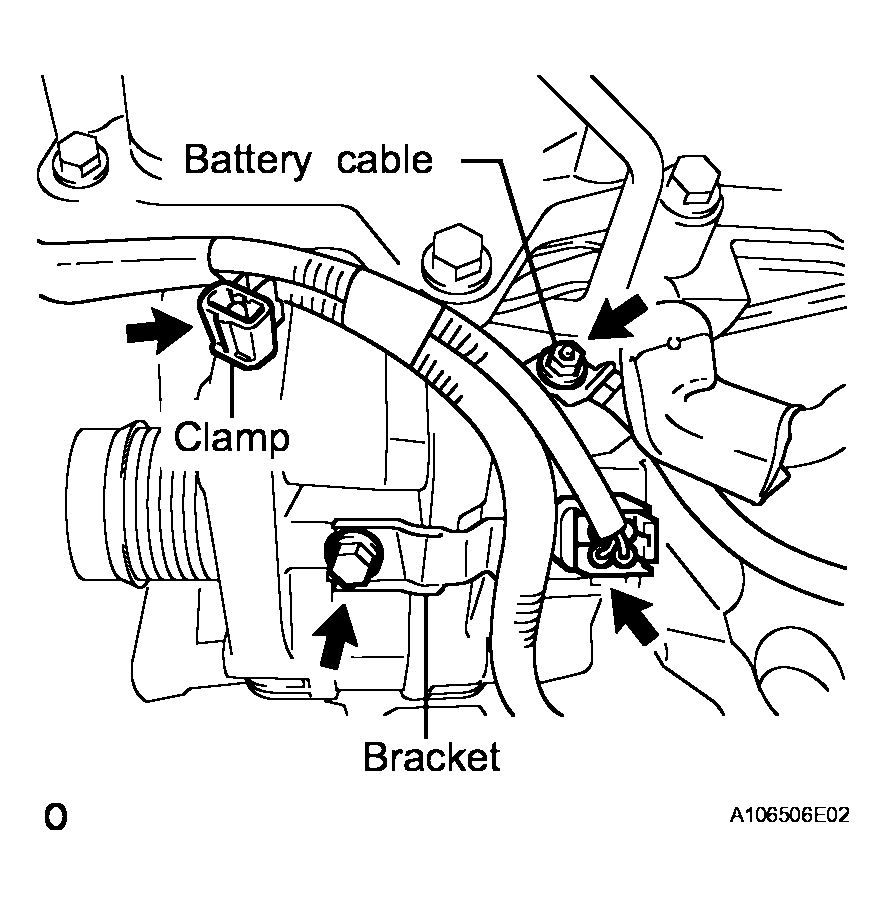

3. Install the battery cable with the nut.
  Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)
4. Install the bracket of the wire harness to the generator with the bolt.
5. Attach the clamp of the wire harness to the generator.
6. Connect the cable to the generator, and then attach the rubber cap.
INSTALL NO. 2 IDLER PULLEY SUB-ASSEMBLY
1. Install the idler pulley and cover plate with the bolt.
  Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

  Fig 3: Identifying Generator Assembly Installing Components
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL COMPRESSOR WITH PULLEY ASSEMBLY
1. Install the compressor with pulley for 2WD (see INSTALLATION ) or 4WD (see INSTALLATION ).
INSTALL V-RIBBED BELT (See INSTALLATION )
INSTALL ENGINE UNDER COVER (See INSTALLATION )
INSTALL ENGINE ROOM SIDE COVER LH (See INSTALLATION )
INSTALL COOL AIR INTAKE DUCT SEAL (See INSTALLATION )
INSTALL V-BANK COVER SUB-ASSEMBLY
1. Install the cover with the 2 nuts.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
