Floor Shift Assembly: Removal

WARNING: This page is about a different car, the 2006 Lexus GS 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE FRONT CONSOLE UPPER PANEL GARNISH (See  REMOVAL  )
  3. REMOVE CONSOLE UPPER PANEL ASSEMBLY (See  REMOVAL  )
  4. REMOVE INSTRUMENT PANEL FINISH PANEL END RH (See  REMOVAL  )
  5. REMOVE INSTRUMENT PANEL FINISH PANEL END LH (See  REMOVAL  )
  6. REMOVE CONSOLE BOX PLATE (See  REMOVAL  )
  7. REMOVE CONSOLE BOX REGISTER ASSEMBLY (See  REMOVAL  )
  8. REMOVE CONSOLE BOX (See  REMOVAL  )
  9. REMOVE NO.2 CONSOLE BOX DUCT (See  REMOVAL  )
  10. REMOVE FRONT EXHAUST PIPE ASSEMBLY

    (REMOVAL )

  11. REMOVE FRONT FLOOR HEAT INSULATOR NO.1 ( REMOVAL  )
  12. SEPARATE FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
    1. Remove the nut and separate the floor shift gear shifting rod sub-assembly.
  13. REMOVE FLOOR SHIFT ASSEMBLY
    1. Disconnect the connectors.

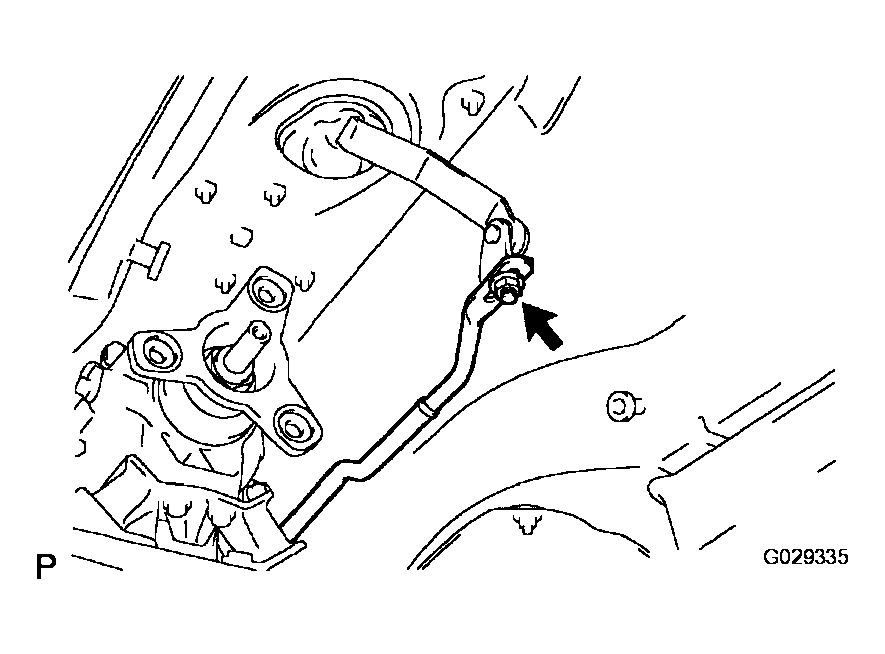

      Fig 1: Separating Floor Shift Gear Shifting Rod Sub-Assembly
      G04028445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts.
    3. Remove the floor shift assembly.

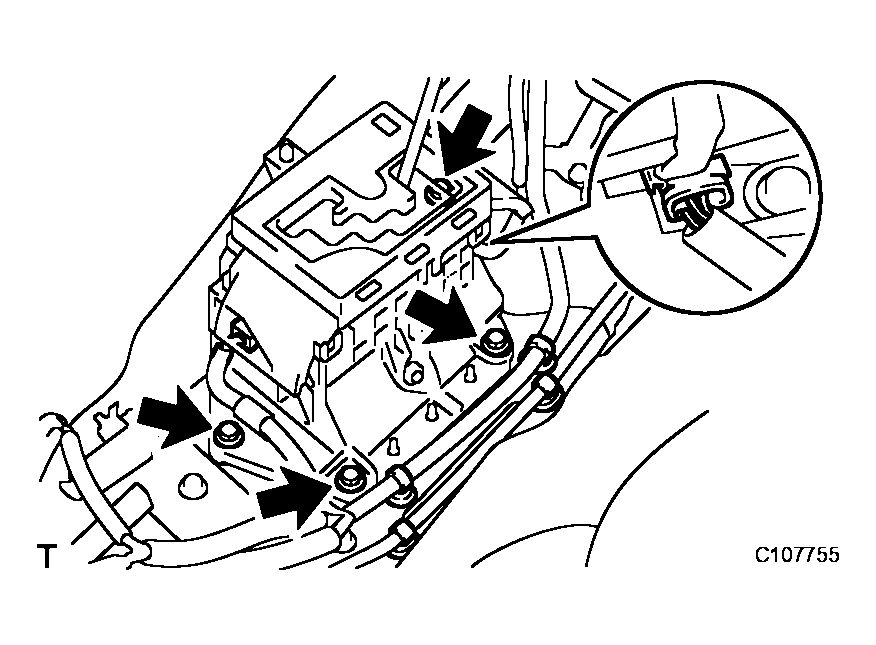

      Fig 2: Identifying Floor Shift Assembly
      G04028446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
