Valve Body Assembly: Installation

1. Install the check ball body and spring.
   NOTE: Do not drop the check ball body and spring.
   Fig 1: Identifying Check Ball Body And Spring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check the accumulator piston, check ball body and spring as shown in the illustration.

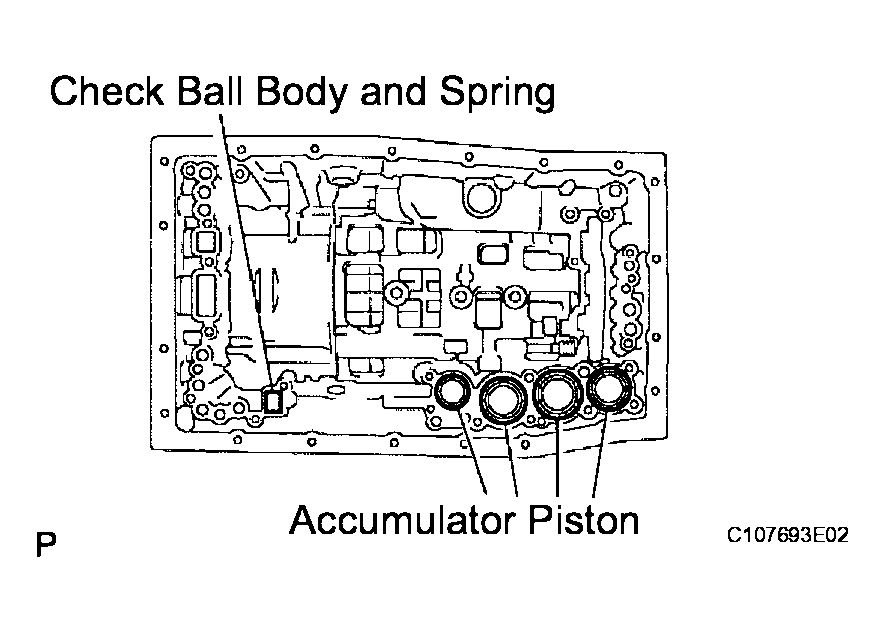

   Fig 2: Identifying Accumulator Piston, Check Ball Body And Spring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Align the groove of the manual valve with the pin of the lever.

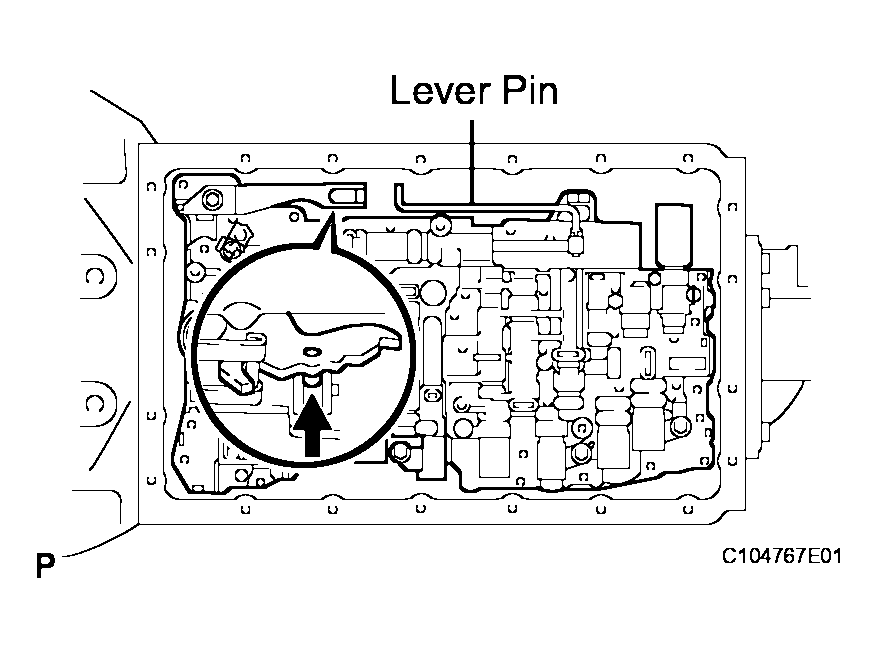

   Fig 3: Aligning Groove Of Manual Valve With Pin Of Lever

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the 20 bolts.

   Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

   Bolt length:

   Bolt A:

   36 mm (1.42 in.)

   Bolt B:

   25 mm (0.98 in.)

   Bolt C:

   45 mm (1.77 in.)

   Bolt D:

   50 mm (1.97 in.)

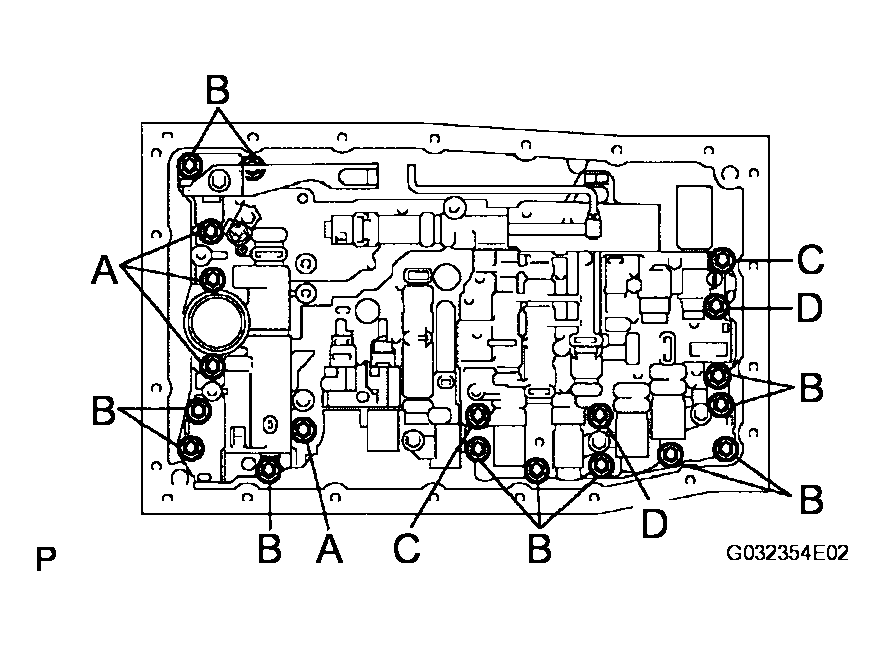

   Fig 4: Identifying Valve Body Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

(see  1 )

(see  1 )

(See INITIALIZATION )
