Cooling (3GR-FSE): Radiator: Installation

INSTALL RADIATOR ASSEMBLY
1. Install the 2 radiator support cushions and 2 radiator lower supports to the radiator.
2. Install the fan to the radiator, and attach the 3 claws.

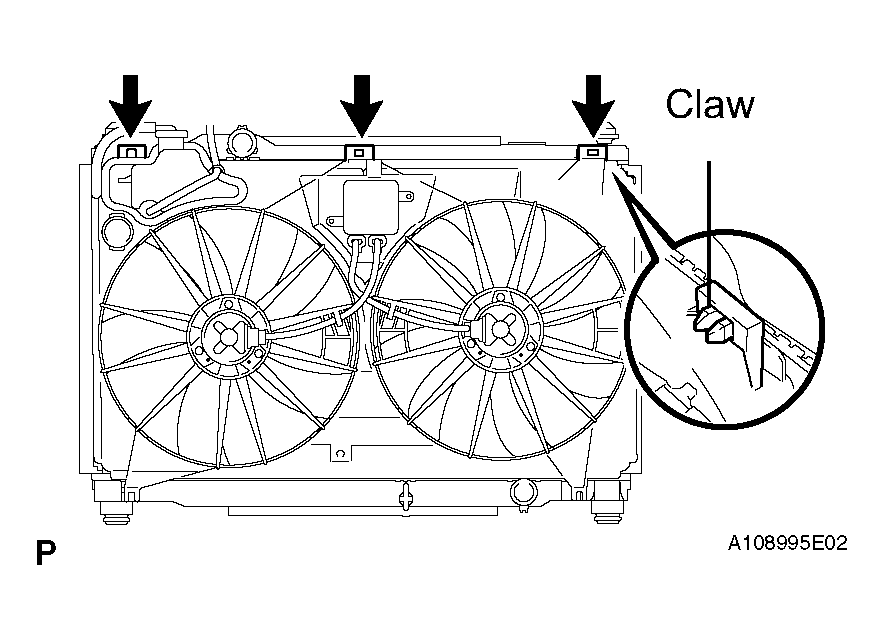

  Fig 1: Identifying Radiator Fan And Attach Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Align the radiator with the condenser. Then install the radiator.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

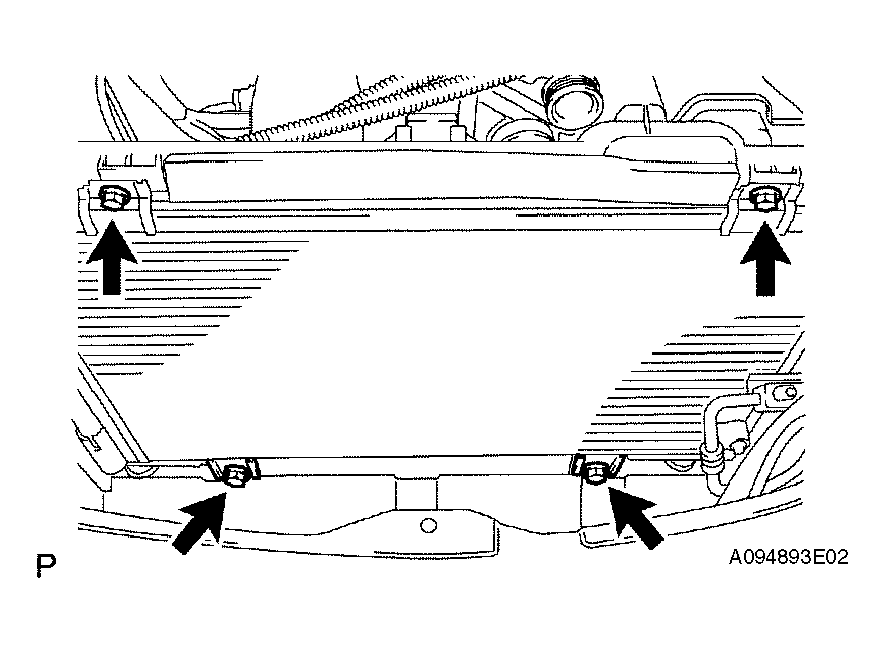

  Fig 2: Identifying Radiator With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT RADIATOR HOSE INLET
1. Connect the hose to the water inlet with thermostat and radiator tank upper.
CONNECT RADIATOR HOSE OUTLET
1. Connect the hose to the water inlet and radiator tank lower.
INSTALL UPPER RADIATOR SUPPORT SUBASSEMBLY (See INSTALLATION )
INSTALL HOOD LOCK ASSEMBLY (See INSTALLATION )
INSTALL HOOD LOCK CONTROL CABLE COVER (See INSTALLATION )
INSTALL RADIATOR SUPPORT OPENING COVER (See INSTALLATION )
ADD ENGINE COOLANT (see 6 )
CHECK FOR ENGINE COOLANT LEAKS
1. Check for engine coolant leaks (see ON-VEHICLE INSPECTION ).
INSTALL FRONT BUMPER COVER (See INSTALLATION )
INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE (See INSTALLATION )
INSTALL NO. 1 AIR CLEANER INLET
1. Install the inlet with the bolt.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
INSTALL V-BANK COVER SUB-ASSEMBLY
1. Install the cover with the 2 nuts.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
INSTALL ENGINE ROOM SIDE COVER RH (See INSTALLATION )
INSTALL ENGINE ROOM SIDE COVER LH (See INSTALLATION )
INSTALL COOL AIR INTAKE DUCT SEAL (See INSTALLATION )
INSTALL ENGINE UNDER COVER (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
