Floor Shift Assembly: Removal

WARNING: This page is about a different variant/trim than selected.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE FRONT CONSOLE UPPER PANEL GARNISH (See  REMOVAL  )
  3. REMOVE CONSOLE UPPER PANEL ASSEMBLY (See  REMOVAL  )
  4. REMOVE INSTRUMENT PANEL FINISH PANEL END RH (See  REMOVAL  )
  5. REMOVE INSTRUMENT PANEL FINISH PANEL END LH (See  REMOVAL  )
  6. REMOVE CONSOLE BOX PLATE (See  REMOVAL  )
  7. REMOVE CONSOLE BOX REGISTER ASSEMBLY (See  REMOVAL  )
  8. REMOVE CONSOLE BOX (See  REMOVAL  )
  9. REMOVE NO.2 CONSOLE BOX DUCT (See  REMOVAL  )
  10. REMOVE FRONT EXHAUST PIPE ASSEMBLY

    (See REMOVAL )

  11. REMOVE FRONT FLOOR HEAT INSULATOR NO.1 (See  REMOVAL  )
  12. SEPARATE FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
    1. Remove the nut and separate the floor shift gear shifting rod sub-assembly.
  13. REMOVE FLOOR SHIFT ASSEMBLY
    1. Disconnect the connectors.

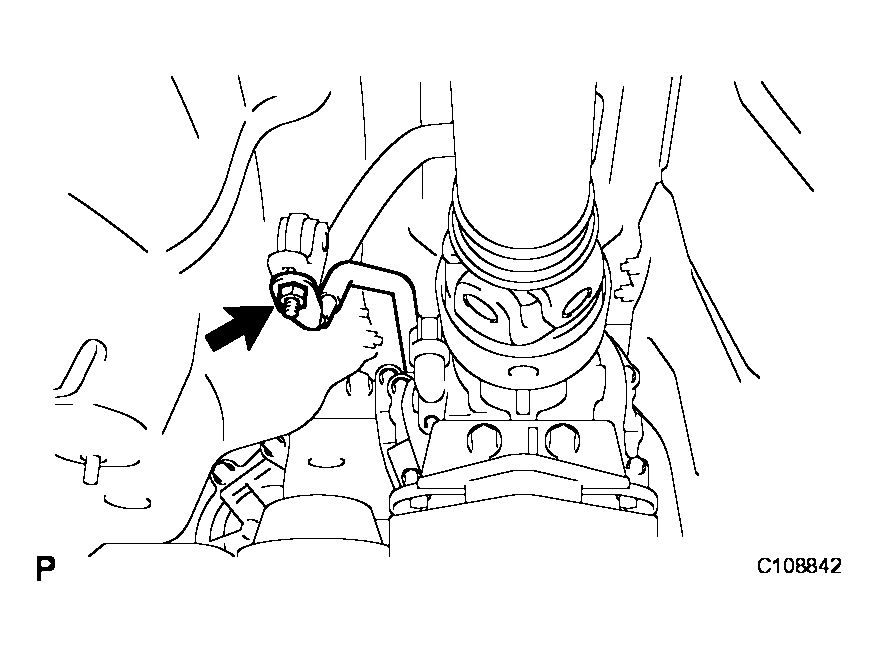

      Fig 1: Identifying Floor Shift Assembly Connectors
      G04019320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts.
    3. Remove the floor shift assembly.

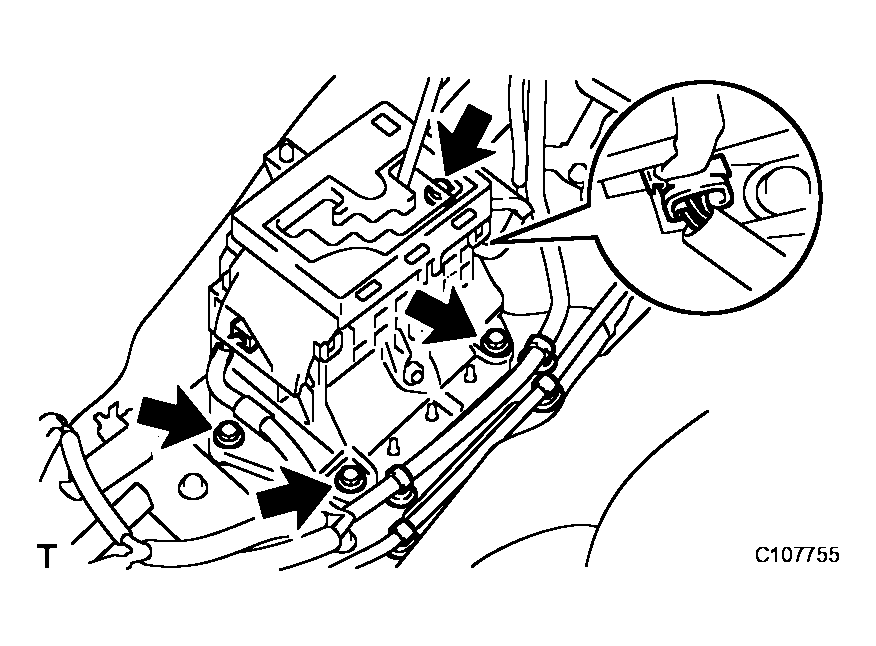

      Fig 2: Identifying Floor Shift Assembly
      G04019321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
