Transmission Wire: Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: When working with FIPG material, perform the following:

Using a gasket scraper, remove all the old FIPG material from the gasket surfaces.
Thoroughly clean all components to remove any loose material.
Clean both sealing surface with a non-residue solvent.
Apply FIPG in a continuous line (width approximately 1 mm (0.04 in.)) along the sealing surface.
Parts must be assembled within 10 minutes of application. Otherwise, the FIPG material must be removed and reapplied.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
DRAIN AUTOMATIC TRANSMISSION FLUID (See 4 )
REMOVE EXHAUST PIPE NO.1 SUPPORT BRACKET SUB-ASSEMBLY (See 11 )
REMOVE AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY
NOTE: Some fluid will remain in the oil pan.
1. Remove the 20 bolts, oil pan and gasket.

  Fig 1: Identifying Oil Pan Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 6 magnets from the oil pan.
3. Examine particles in the pan.
  1. Remove the magnets and use them to collect steel particles. Carefully look at the foreign matter and particles in the pan and on the magnets to anticipate the type of wear which might be found in the transmission. Steel (magnetic)... bearing, gear and clutch plate wear
    Brass (non-magnetic)... bushing wear

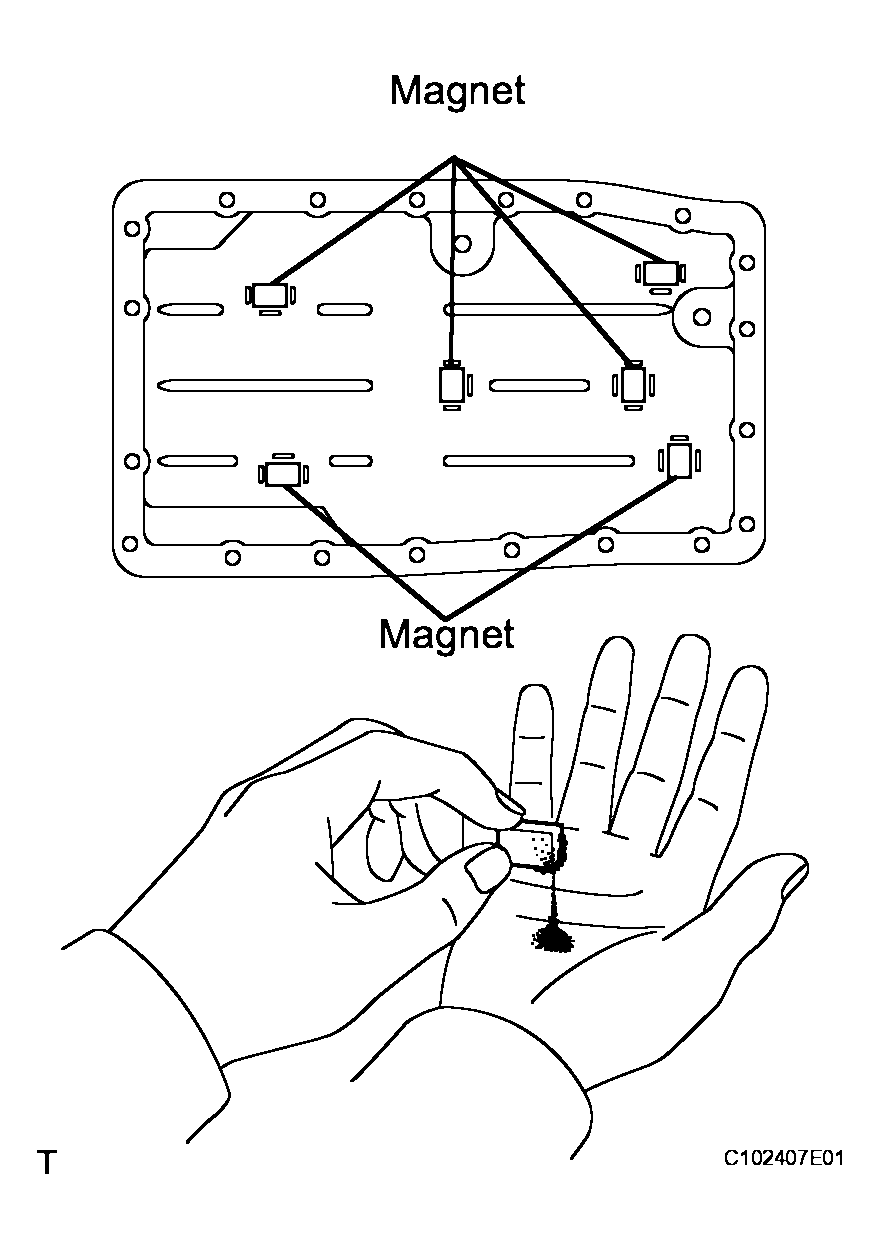

    Fig 2: Identifying Magnets From Oil Pan And Examining Pan Particles
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE VALVE BODY OIL STRAINER ASSEMBLY
1. Remove the 4 bolts and oil strainer.
  NOTE: Be careful as some fluid will come out of the oil strainer.

  Fig 3: Oil Strainer With mounting Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the O-ring from the oil strainer.

  Fig 4: Identifying Oil Strainer O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT TRANSMISSION WIRE
1. Remove the bolt and lock plate, and separate the ATF temperature sensor.
2. Remove the 2 bolts and 2 clamps.
3. Separate the 9 connectors from the solenoid valves.

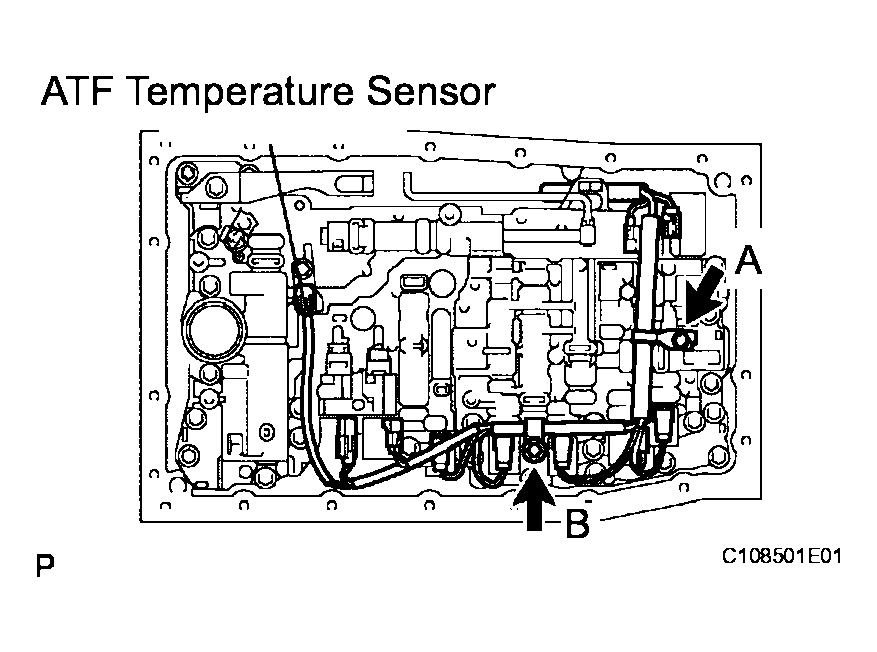

  Fig 5: Identifying ATF Temperature Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSMISSION WIRE
1. Disconnect the transmission wire connector.
2. Remove the bolt and pull out the transmission wire.

  Fig 6: Locating Internal Wiring Harness Mounting Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the O-ring from the transmission wire.

  Fig 7: Identifying Transmission Wire Harness O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
