Installing the front axle support

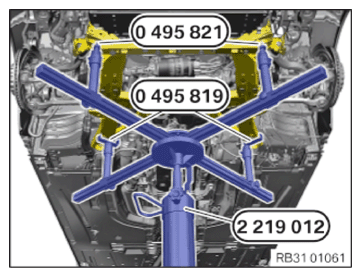

• Carefully lift the front subframe using special tool  2 219 012  and position it on the body  .

  Courtesy of BMW OF NORTH AMERICA, INC.

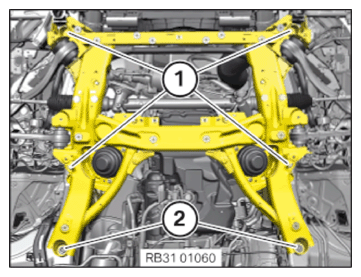

• Replace screws (1).

  Parts:  Screws

• Tighten down screws (1).

Front subframe on front/center of body
M12 Replace screws.	Tightening torque	108 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

• Replace screws (2).

  Parts:  Screws

• Tighten down screws (2).

Front axle carrier to body, rear
M14 Replace screws.	tightening torque	175 Nm

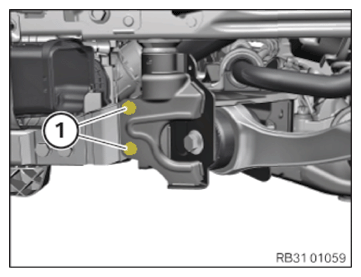

• Position the adapter on the front subframe.
• Tighten down screws (1).

Adapter, front axle support to front axle support
M8x70	tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

• Lower the universal jack 2 219 012 and place to one side.

Courtesy of BMW OF NORTH AMERICA, INC.

Install the left-hand and right-hand crash lever

• Version A:

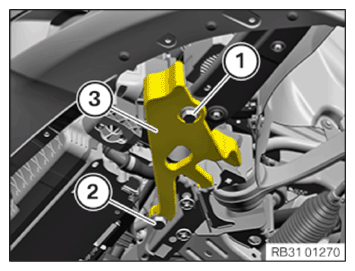

  Position the crash lever (3) on the front subframe.

  Tighten screws (1) and (2).

Crash lever on frame/adapter of front subframe
M14	Tightening torque	100 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

• Version B:

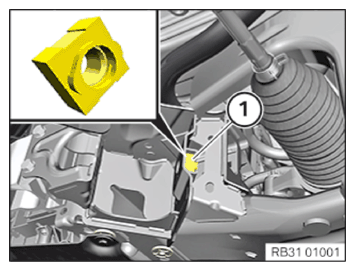

  Replace the cage nut (1).

  Parts:  Cage nut

Courtesy of BMW OF NORTH AMERICA, INC.

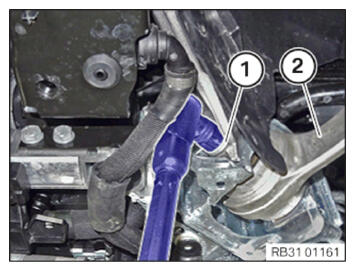

• Position the tension strut and crash lever (2) on the front subframe.
• Replace the screw (1).

  Parts:  Screw

• Feed in screw (1) and tighten hand-tight.

  Courtesy of BMW OF NORTH AMERICA, INC.

  The screw connection is tightened later in NORMAL POSITION .

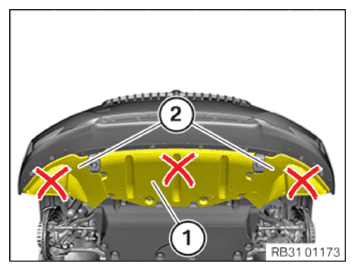

• On version B:  Install the front underbody protection (1) and the lower wheel arch covers (2) only after tightening  the threaded connection of the tension strut at the front subframe.

Courtesy of BMW OF NORTH AMERICA, INC.

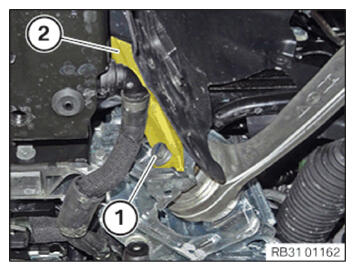

• Tighten the screw (1) of the tension strut (2) on the front subframe in NORMAL POSITION only following the follow-up work  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to PARTIALLY INSTALLING THE AIR DUCT FOR THE BRAKE ON THE LEFT AND RIGHT .
• Refer to IF INSTALLED: INSTALLING THE SILENCER OF THE PARKED-CAR HEATING .
• Refer to ATTACHING THE LEFT AND RIGHT TENSION STRUTS ON THE SWIVEL BEARING .
• Refer to ATTACHING THE LEFT AND RIGHT WISHBONE ON THE SWIVEL BEARING .
• Refer to SECURING THE TIE ROD ON THE LEFT AND RIGHT OF THE SWIVEL BEARING .
• Refer to ATTACHING THE ANTI-ROLL BAR LINK ON THE ANTI-ROLL BAR AT LEFT AND RIGHT .
• Refer to ATTACHING THE LINE CONNECTION TO THE RIDE HEIGHT SENSOR .
• Refer to SECURING THE WIRING HARNESS FOR THE EPS ON THE FRONT AXLE SUPPORT .
• Refer to SECURING THE STEERING SHAFT AT THE BOTTOM ON THE STEERING GEAR .
• Refer to REMOVING THE ENGINE FROM THE INSTALLATION POSITION .
• Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE LOWER WHEEL ARCH COVER ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
• Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
• Refer to IF INSTALLED: INSTALLING UNDERBODY PROTECTION FOR THE STEERING .
• Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
• Refer to FASTENING THE WIRING HARNESS SECTION TO THE LEFT SHOCK TOWER .
• Refer to FASTENING THE WIRING HARNESS SECTION TO THE RIGHT SHOCK TOWER .
• Refer to INSTALLING THE SIDE PANEL SEAL .
• Refer to INSTALLING THE LATERAL HOOD SEALS .
• Refer to INSTALLING THE CLEAN AIR PIPE WITH THE RESONATOR .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
• Refer to ACTIVATING ELECTRICAL SYSTEM .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
