Securing the steering shaft at the bottom on the steering gear
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
The universal joint can be mounted only in one position.
The universal joint and the steering gear or the steering shaft are encoded to each other.
The clamping bolt must be positioned in the groove of the steering gear or the steering shaft.
The universal joint can be mounted only in one position.
The universal joint and the steering gear or the steering shaft are encoded to each other.
The clamping bolt must be positioned in the groove of the steering gear or the steering shaft.
- Clean the screw threads to remove all remnants of screw lock agent.

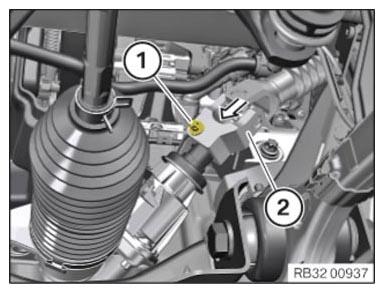

- Slide the lower steering shaft (2) onto the steering gear in the arrow direction.
- Replace the clamping bolt (1).
Parts: Clamping bolt
- Tighten the clamping bolt (1).TIGHTENING TORQUES SPECIFICATION
Universal joint to steering box M8
Recut screw thread.
Replace clamping bolt No retorque permitted!Tightening torque 28 Nm
