Take hood out of the service position
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Shutting hood or trunk lid.
Injury hazard!
Injury hazard!
- Support the hood/tailgate in the fully open position using a suitable device.
- Support the hood by hand.

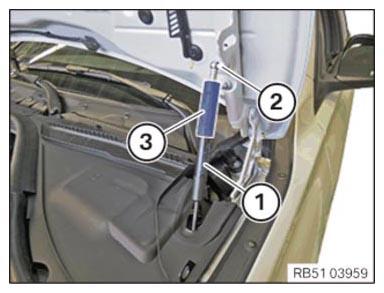

- Remove the special tool (3) from the ball hub (2).
- Detach the special tool (3) from the gas pressure spring (1).
- Continue to support the hood and repeat the operation on the other side of vehicle.

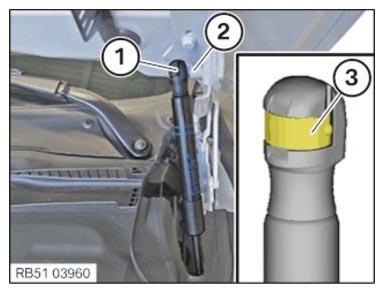

- Check the clamp (3) is fitted correctly.
- Connect ball socket (1) to ball pin (2).
- Continue to support the hood and repeat the operation on the other side of vehicle.
