Attaching the anti-roll bar link on the anti-roll bar at left and right

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Perform the steps on the left and right side.

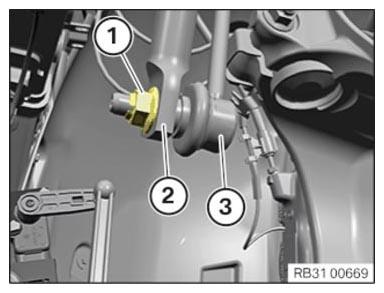

Securing the anti-roll bar link to the anti-roll bar

Position the anti-roll bar link (3) on the anti-roll bar (2).
Replace nut (1).
Parts: Nut

Tighten nut (1). If necessary, counter support at the Torx socket.

TIGHTENING TORQUES SPECIFICATION

Front anti-roll bar link to anti-roll bar/spring strut
M10 Replace nut.	tightening torque	56 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
