Activating the 48 V electrical system
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Precondition
Ignition is switched off.
NOTE:
RISK OF DAMAGE
Damage to the 48-V battery
If a 48-V battery disconnected from the on-board electrical system is activated, the battery electronics are damaged.
Damage to the 48-V battery
If a 48-V battery disconnected from the on-board electrical system is activated, the battery electronics are damaged.
- Only ever activate the 48 V electrical system when the 48 V battery is fully connected up.
- Raise the battery ground cable.

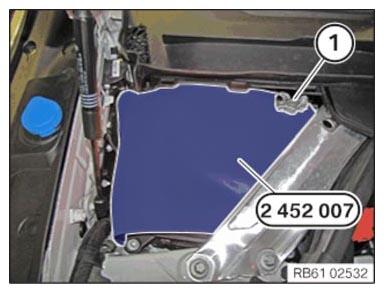

- Remove special tool 2 452 007.
- Release the negative battery cable of the 48-V battery from the attachment.

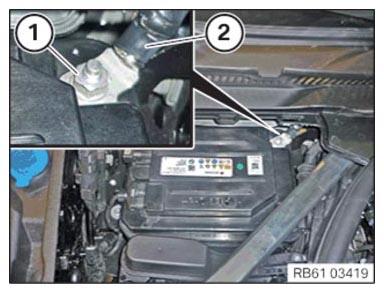

- Position the negative battery cable of the 48-V battery on the negative battery terminal.
- Tighten nut (1).TIGHTENING TORQUES SPECIFICATION

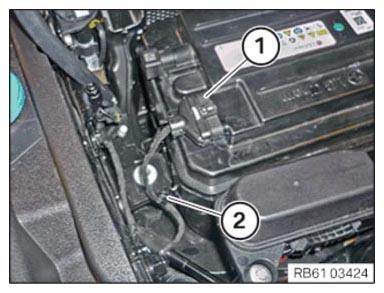

Negative battery cable to 48-V battery Nut M8 Tightening torque 19 Nm - Connect the connector of the CAN bus and lock it.
- Clip in clip.

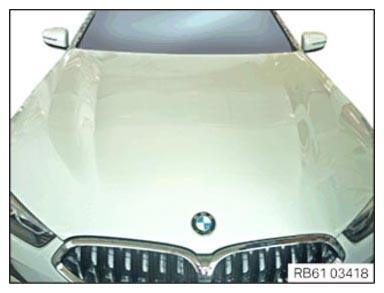

- Activate the 48 V electrical system by closing the hood.
Activation is automatic.
