Secure the wiring harness for the EPS on the front axle support
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

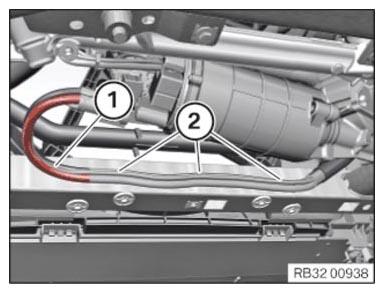

- Position the wiring harness of the EPS (1) on the front subframe.
- Secure the holder (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
NOTE:
TECHNICAL INFORMATION

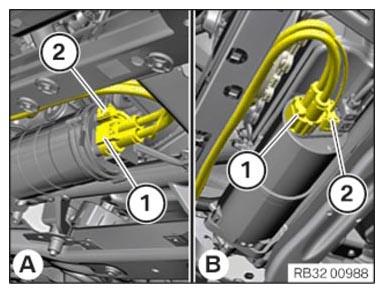

Different variants maybe installed depending on the vehicle equipment.
- Version A:
Connect connectors (1) and (2) and lock.
- Version B:
Connect connectors (1) and (2) and lock.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
- Position the wiring harness of the EPS (1) on the front subframe.
- Secure the holder (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
NOTE:
TECHNICAL INFORMATION
Different variants maybe installed depending on the vehicle equipment.
- Version A:
Connect connectors (1) and (2) and lock.
- Version B:
Connect connectors (1) and (2) and lock.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
