Attaching the left and right wishbone on the swivel bearing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

Attaching the wishbone on the swivel bearing

NOTE: TECHNICAL INFORMATION
Otherwise, the rubber grommet can be damaged. The components must not be in contact.

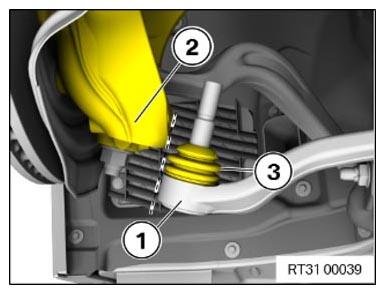

Make sure that the rubber grommet (3) on the bottom wishbone (1) is not damaged by the swivel bearing (2).

Courtesy of BMW OF NORTH AMERICA, INC.

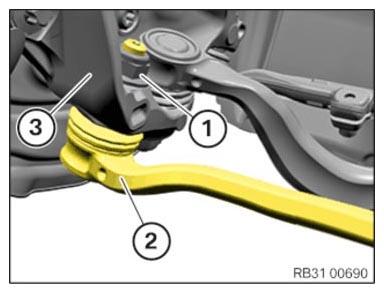

Position the wishbone (2) on the swivel bearing (3).
Replace nut (1).
Parts: Nut

Tighten nut (1). If necessary, counter support at the Torx socket.

TIGHTENING TORQUES SPECIFICATION

Wishbone to swivel bearing
M14 Replace nut.	tightening torque	175 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
