Securing the tie rod on the left and right of the swivel bearing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Securing the tie rod on the swivel bearing

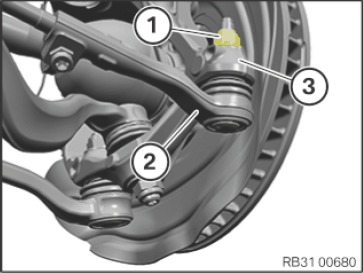

- Position the track rod (2) on the swivel bearing (3).
- Replace nut (1).
Parts: Nut
- Tighten nut (1). If necessary, counter support at the Torx socket.
| Tie rod end to swivel bearing | ||
| M14 Replace nut. |
Tightening torque | 165 Nm |
