Installing the new front axle differential

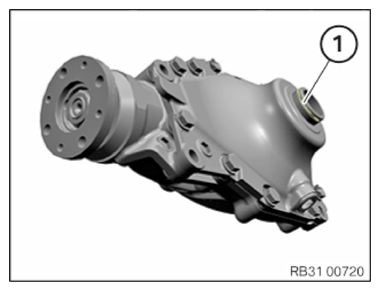

• Remove all protective caps from the new front axle differential (1)  .
• Remount the cap (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

• Coat the O-ring (1)  on the new front axle differential with front axle differential oil.

Courtesy of BMW OF NORTH AMERICA, INC.

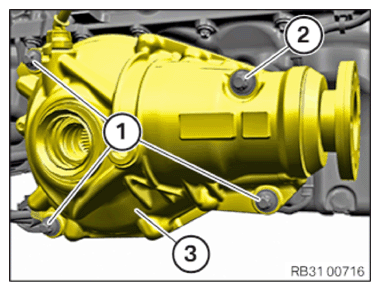

• Position the new front axle differential (3)  .

  Make sure marked screws are installed in correct installation locations:

  • Bolts (1) M12x55
  • Bolt (2) M12x105
• Tighten down screws (1)  and (2)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Front axle final drive to motor oil pan
  M12	Tightening torque	140 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.
