Securing the transmission oil lines on the front subframe
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

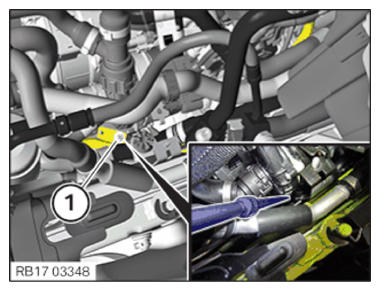

- Tighten nut (1)
.TIGHTENING TORQUE SPECIFICATIONS
Holder for transmission oil line BM6 Tightening torque 8 Nm - Connect connectors (1)
and lock.
The connector (1) must engage audibly.
- Attach holder (1)
to the electrical auxiliary coolant pump (2)
.
- Feed in and install the electrical auxiliary coolant pump (2) .
- Tighten nut (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Electric coolant pump to holder | ||
| M6 | tightening torque | 8 Nm |
