Securing the coolant line to the front subframe

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

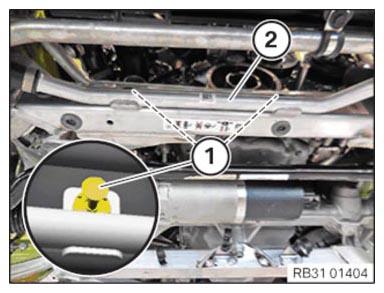

Position the coolant line (2) on the front subframe.
Secure expanding rivet (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

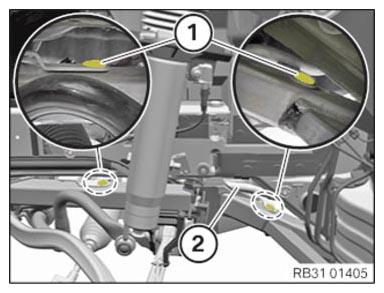

NOTE: To provide a better overview: Schematic diagram with partially hidden components.
Position the coolant line (2) on the front subframe.
Secure expanding rivet (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

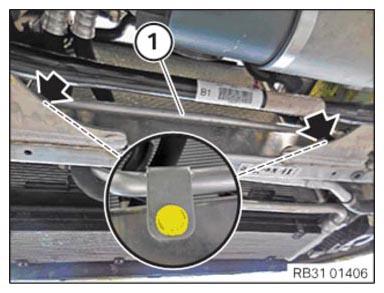

Position the coolant line (1) on the front subframe.
Attaching the expanding rivets (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.
