Refitting oil pan
NOTE:
RISK OF DAMAGE
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
- Adhere to the utmost cleanliness.
- Protect components from contamination e.g. by covering.
- Close off line connections with seal plugs.
NOTE:
RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.
- Do not use any metal-cutting tools.
NOTE:
TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents.
The sealing surfaces must be free of oil, grease and cleaning agents.
- Using the special tool 0 495 102 (114 470) , remove the remains of the coarse seal from the sealing face (1) of the crankcase.
- Clean the sealing surface (1)
with brake cleaner.CONSUMABLE SPECIFICATION
Brake cleaner 2.0 500 ml, Spray can 83192365214 20, Canister 83192365215 NOTE: TECHNICAL INFORMATION

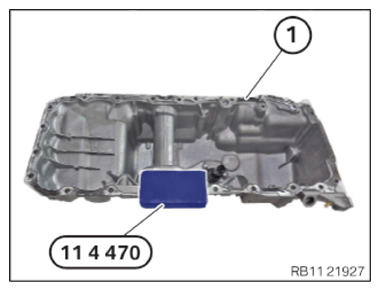

The sealing surfaces must be free of oil, grease and cleaning agents. - Remove fine seal remains on the sealing surface (1) of the oil pan with the special tool 0 495 102 (11 4 470) .
- Clean the sealing surface (1)
with brake cleaner.CONSUMABLE SPECIFICATION
Brake cleaner 2.0 500 ml, Spray can 83192365214 20, Canister 83192365215 - Have the special tool 2 469 803
ready.NOTE: TECHNICAL INFORMATION
For additional information see: OVERVIEW OF CONSUMABLES (APPLICABLE BMW PARTS CATALOGUE) . - Position the sealing compound (1)
as shown on the special tool 2 469 803.
Parts: Sealant
NOTE: TECHNICAL INFORMATION
The processing time of the liquid sealing compound can be at a maximum of 10 min.
Commissioning of the assembly is not possible until 25 minutes after the processing time.
Non-observance can lead to leaks in the assembly. - Apply sealing bead (1)
with the sealing compound in the marked
area along the inner edge.SEALING COMPOUND SPECIFICATION
Loctite 5970 liquid sealing compound Processing time <10 minutes at room temperature 50 ml, Cartridge 83190404517 TECHNICAL DATA SPECIFICATIONHeight of the sealing bead 2.0 mm... 2.5 mm - Completely encircle the oil return orifice (arrow) with the sealing compound.NOTE: TECHNICAL INFORMATION
The special tool 11 8 780 is only required when the transmission is removed. - Position the special tool 0 496 120 (11 8 780) with the transmission bolts (1) in such a way that the oil pan aligns exactly with the timing case cover.
- Replace the centering sleeves where required.
- Insert and position oil pan (1)
to top front.
- Tighten down screws (1)
.TIGHTENING TORQUE SPECIFICATION
Oil sump to crankcase M8x30 Tightening torque 24 Nm - Tighten down screws (1)
.TIGHTENING TORQUE SPECIFICATION
Oil sump to crankcase M8x30 Tightening torque 24 Nm TIGHTENING TORQUE SPECIFICATIONOil sump to crankcase M8x110 Tightening torque 24 Nm - Tighten down screws (1)
.TIGHTENING TORQUE SPECIFICATION
Oil sump to crankcase M8x30 Tightening torque 24 Nm - Tighten down screws (1)
.TIGHTENING TORQUE SPECIFICATION
Oil sump to crankcase M8x30 Tightening torque 24 Nm TIGHTENING TORQUE SPECIFICATIONOil sump to crankcase M8x110 Tightening torque 24 Nm - Tighten down screws (1)
.TIGHTENING TORQUE SPECIFICATION
Oil sump to crankcase M8x30 Tightening torque 24 Nm - Tighten transmission screws (1)
.TIGHTENING TORQUE SPECIFICATION
Transmission to oil pan (manual transmission and automatic transmission) M8x50 Tightening torque 19 Nm - Secure the clamps (arrows).
- Connect and lock the connector (1) .
- Make sure the connector (1)
engages audibly.
- Secure clamps (1) .
- Insert and install the sealing cap (2)
.
Follow-up work
- Refer to INSTALLING BEARING BRACKET .
- Refer to INSTALLING FRONT AXLE DIFFERENTIAL .
- Refer to ATTACHING THE BRACKET OF THE FRONT TRANSMISSION OIL LINE .
- Refer to INSTALLING STARTER MOTOR .
- Refer to REPLACING THE LEFT AND RIGHT RADIAL SHAFT SEAL .
- Refer to INSTALLING THE ACOUSTIC COVER FOR THE OIL SUMP .
- Refer to INSTALLING OUTPUT SHAFT ON LEFT AND RIGHT .
- Refer to SECURING THE JUNCTURE SHAFT IN FRONT ON THE FRONT AXLE DIFFERENTIAL .
- Refer to INSTALLING THE FRONT AXLE SUPPORT .
- Refer to PARTIALLY INSTALLING THE AIR DUCT FOR THE BRAKE ON THE LEFT AND RIGHT .
- Refer to ATTACHING THE LEFT AND RIGHT TENSION STRUTS ON THE SWIVEL BEARING .
- Refer to ATTACHING THE LEFT AND RIGHT WISHBONE ON THE SWIVEL BEARING .
- Refer to SECURING THE TIE ROD ON THE LEFT AND RIGHT OF THE SWIVEL BEARING .
- Refer to ATTACHING THE RIGHT AND LEFT OUTPUT SHAFT ONTO THE WHEEL BEARING .
- Refer to ATTACHING THE ANTI-ROLL BAR LINK ON THE ANTI-ROLL BAR AT LEFT AND RIGHT .
- Refer to ATTACHING THE LINE CONNECTION TO THE RIDE HEIGHT SENSOR .
- Refer to SECURING THE WIRING HARNESS FOR THE EPS ON THE FRONT AXLE SUPPORT .
- Refer to SECURING THE STEERING SHAFT AT THE BOTTOM ON THE STEERING GEAR .
- Refer to TAKING ENGINE OUT OF INSTALLATION ORIENTATION .
- Refer to TOPPING UP/CHECKING FRONT AXLE TRANSMISSION OIL .
- Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE LOWER WHEEL ARCH COVER ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
- Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
- Refer to INSTALLING INTAKE FILTER HOUSING .
- Refer to INSTALLING FUEL DELIVERY LINE .
- Refer to INSTALLING ALL IGNITION COILS .
- Refer to INSTALLING ACOUSTIC COVER AT REAR .
- Refer to INSTALLING THE SIDE PANEL SEAL .
- Refer to INSTALLING THE LATERAL HOOD SEALS .
- Refer to INSTALLING THE CENTER COWL UPPER PART .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE REAR HOOD SEAL .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
- Refer to FILLING ENGINE OIL .
- Refer to OPENING THE OIL FILLER CAP .
- Refer to ACTIVATING ELECTRICAL SYSTEM .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
