Secure the juncture shaft in front on the front axle differential

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

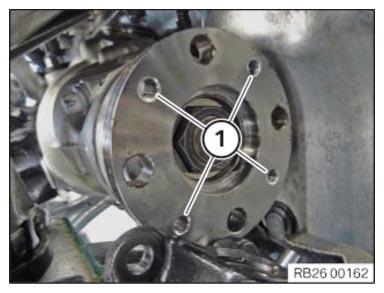

Clean all 4 threads (1) in the front axle differential flange before assembling the prop shaft.
Remove possible residues and contamination.

Courtesy of BMW OF NORTH AMERICA, INC.
Replace screws.
Parts: Screws

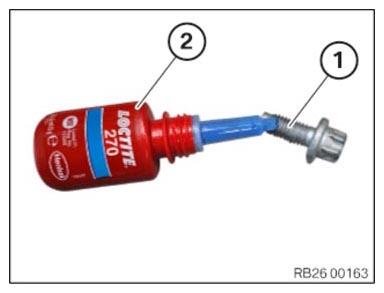

Apply screw locking agent to all screw threads (1) before screwing.
CONSUMABLE SPECIFICATION

Loctite 270 high-strength thread lock 10 ml, Tube 83 192210 337

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
After the screw connection of the front prop shaft, a 30 minute hardening time must be ensured before the vehicle is operated again.
Release special tool 2 413 317.
Position the propeller shaft in front on the front axle differential.
Replace screws.
Parts: Screws

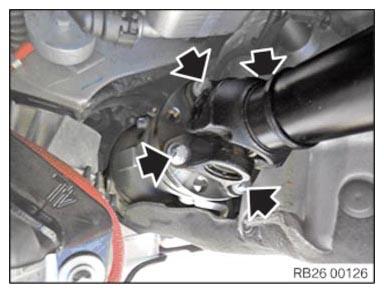

Tighten screws (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUES SPECIFICATION

Prop shaft before the front axle differential
Replace screws. Joining torque and angle of rotation must be observed without fail.	Snug torque	25 Nm
	Angle of rotation	45°
