Installing all ignition coils
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The description is provided only at one component. The procedure is the same for all other components.

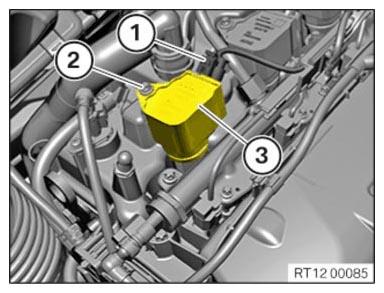

Install ignition coil
- Install Ignition coil (3).
- Tighten down screw (2).TIGHTENING TORQUES SPECIFICATION
Ignition coil Screw Tightening torque 8 Nm - Connect connectors (1) and lock.
The connector (1) must engage audibly.

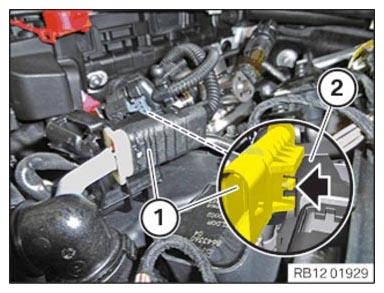

- Connect the connector (1) with the holder (2) and lock (arrow).
The connector (1) must engage audibly.

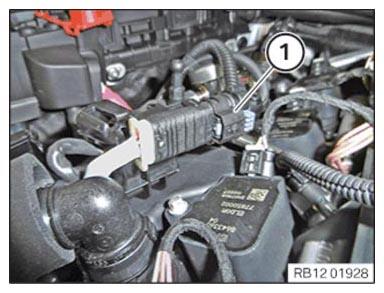

- Connect connectors (1) and lock.
The connector (1) must engage audibly.
NOTE:
The description is provided only at one component. The procedure is the same for all other components.

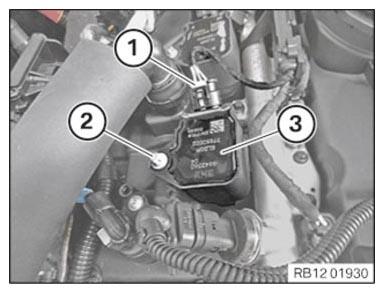

Install ignition coil
- Install ignition coil (3).
- Tighten down screw (2).TIGHTENING TORQUES SPECIFICATION
Ignition coil Screw Tightening torque 8 Nm - Connect connectors (1) and lock.
The connector (1) must engage audibly.

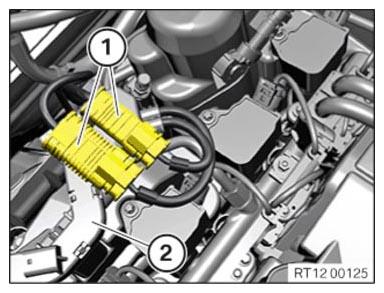

- Attach connector (1) of the primary oxygen sensor and the monitoring oxygen sensor to the cable duct (2).
