Installing the upper dashboard trim
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
NOTE:
RISK OF DAMAGE
Damage of high-quality surfaces.
Plastic wedges can damage high-quality surfaces.
Damage of high-quality surfaces.
Plastic wedges can damage high-quality surfaces.
- Protect surfaces from damage.

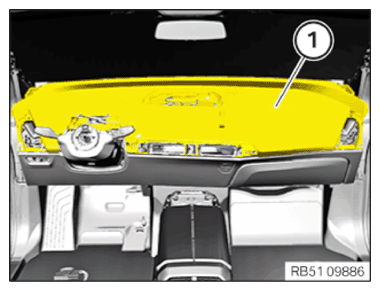

- Insert the upper dashboard trim (1) into the vehicle with a support person.
- Guide in the upper dashboard trim (1) with a support person and connect the existing connectors in the process.
NOTE:
Perform the steps on the right and left side.

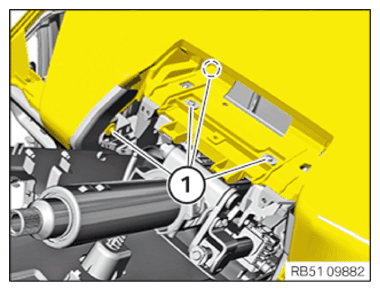

- Tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Dashboard | ||
|---|---|---|
| Oval-head screw for thermoplastics | Tightening torque | 2.6 Nm |

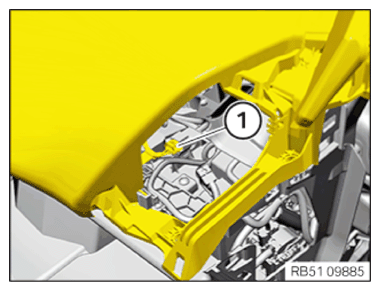

- Connect and lock connector (1)
of the front passenger airbag.
- Open the glove compartment lid.

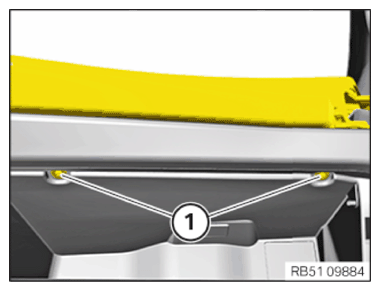

- Tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Dashboard | ||
|---|---|---|
| Oval-head screw for thermoplastics | Tightening torque | 2.6 Nm |

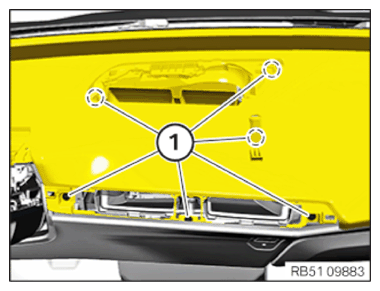

- Tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Dashboard | ||
|---|---|---|
| Oval-head screw for thermoplastics | Tightening torque | 2.6 Nm |

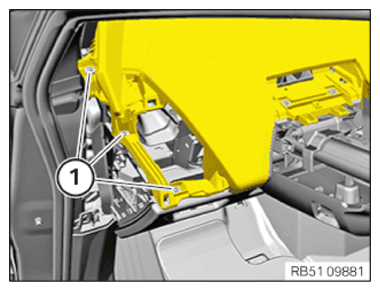

- Tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Dashboard | ||
|---|---|---|
| Oval-head screw for thermoplastics | Tightening torque | 2.6 Nm |

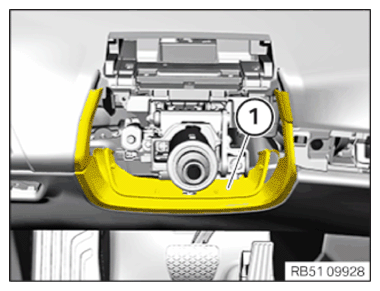

- Install the gap cover (1) and snap into the detents.
Follow-up work
- Refer to INSTALLING THE INSTRUMENT CLUSTER .
- Refer to INSTALLING THE RIGHT VENTILATION GRILLE .
- Refer to INSTALLING THE CENTER VENTILATION GRILLE .
- Refer to INSTALLING THE LEFT VENTILATION GRILLE .
- Refer to INSTALLING THE AIR DUCT FOR INDIRECT VENTILATION .
- Refer to INSTALLING THE SPEAKER HOLDER ON THE DASHBOARD .
- Refer to INSTALLING THE SPEAKER TRIM AT THE DASHBOARD .
- Refer to INSTALLING STEERING WHEEL .
- Refer to INSTALLING AIRBAG UNIT OF THE STEERING WHEEL .
- Refer to FITTING THE STEERING COLUMN SHROUD UPPER SECTION .
- Refer to INSTALLING A-PILLAR TRIM PANEL ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE A-PILLAR TRIM PANEL AT THE CENTER LEFT AND RIGHT .
- Refer to INSTALLING THE SIDE COVER ON THE DASHBOARD AT LEFT AND RIGHT .
- Refer to ACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE VEHICLE ELECTRICAL SYSTEM .
