Installing left and right exhaust turbochargers

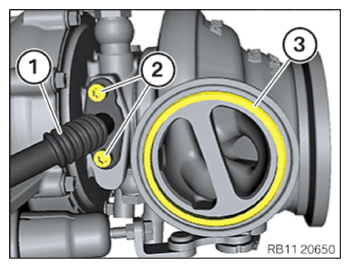

Loosen screws (2).
Remove oil return line (1).
Ensure that the sealing surfaces in the area of the oil return line are planar and free from oil and grease.
Replace the seal (3).
Parts: Seal

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the oil return line (3).
Parts: Oil return line
Replace the seal (1).
Parts: Seal
Position screws (2) in oil return line (3).
Slide seal (1) onto the screws (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Position the oil return line (1).
Tighten down screws (2).

TIGHTENING TORQUE SPECIFICATIONS

Oil return line at the exhaust turbocharger
M6x16 Replace screws.	Joining torque	5 Nm
M6x16 Replace screws.	Angle of rotation	60°

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure that the seal (3) does not fall out during the feed in.
Check oil feed line for contamination or obstruction and clean or replace as needed.
If the oil feed line is heavily contaminated, it is recommended to change the engine oil and oil filter.
Check the clean air ducts on the intake side and charge air cooler for contamination or foreign bodies and clean if necessary.
If installed: Check the coolant feed lines and return lines for exhaust turbocharger for contamination or obstruction, clean or replace if necessary.
Check that screw connections and plug connections for all lines are correct.
Check air cleaner for contamination and clean or replace as needed.
Check correct functioning of crankcase ventilation.
Replace all gaskets.
Parts: Seals
Replace O-ring (1).
Parts: O-ring
Make sure that the O-ring (1) does not fall into the oil duct in the engine block.
If the O-ring (1) cannot be disassembled, the oil return lid must be disassembled.
Coat O-ring (1) with engine oil.

ENGINE OIL SPECIFICATION

Technically suitable engine oils for BMW Group engines

Courtesy of BMW OF NORTH AMERICA, INC.

Thread in exhaust turbocharger with oil return line in downward direction and position it.
Make sure that the oil return line is not mechanically deformed.

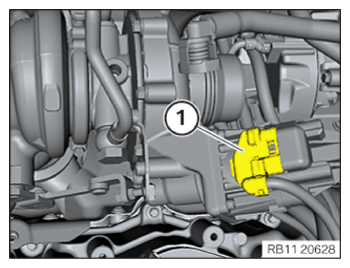

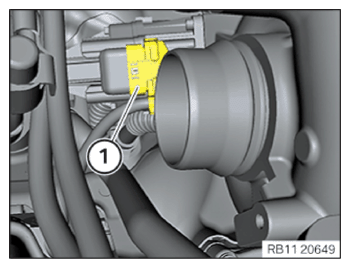

Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

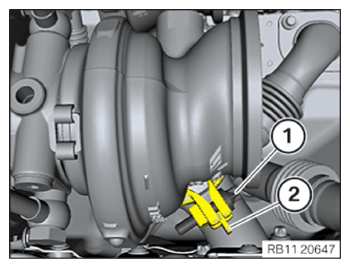

Replace the V-clip (2).
Parts: V-band clamp
Position V-clip (2).
Hand-tighten the bolt (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Tighten screw (1) on the V-clip.

TIGHTENING TORQUE SPECIFICATIONS

Exhaust turbocharger to exhaust manifold
V-band clamp Replace V-band clamp.	Initial Tightening torque	9 Nm
V-band clamp Replace V-band clamp.	Final Tightening torque	20 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Check if the screw connection of the V-band clamp is too loose.
If there is a gap between the ends of the V-band clamps: Loosen the screw and tighten again.

Courtesy of BMW OF NORTH AMERICA, INC.
Check if the screw connection of the V-band clamp is too tight.
When the ends of the V-band clamp are positioned one below the other: Loosen screws and retighten.

Courtesy of BMW OF NORTH AMERICA, INC.
Make sure that the ends of the V-band clamp are parallel to each other.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1).

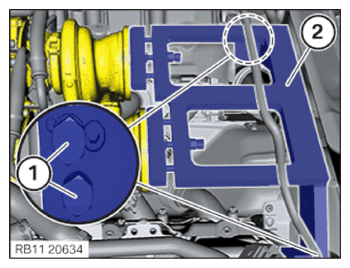

Remove special tool 2 249 171 (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the screw (1).
Parts: Screw
Replace the sealing ring or sealing rings (2).
Parts: Sealing ring or sealing rings
Make sure that when installing sealing rings without a fitting aid (bridge), both sealing rings are replaced.
Position screw (1) with the sealing ring or sealing rings (2) on the oil feed line.
Position oil feed line.

Courtesy of BMW OF NORTH AMERICA, INC.

Determining the screw type and selecting the appropriate socket wrench:

Screw type	Matching socket wrench
Hexagon screw (3)	Commercial socket wrench (1)
Multi-tooth screw (4)	Multi-tooth socket wrench (2)

Courtesy of BMW OF NORTH AMERICA, INC.

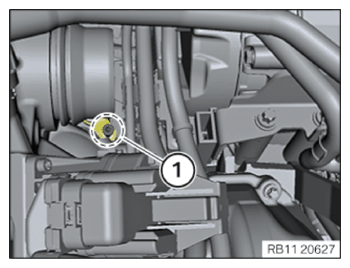

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Oil feed line to exhaust turbocharger
Banjo bolt M10x1 Replace screw.	Joining torque	8 Nm
Banjo bolt M10x1 Replace screw.	Angle of rotation	70°

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Oil feed line holder to exhaust turbocharger
M6x16 screw	Tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Installing right exhaust turbocharger

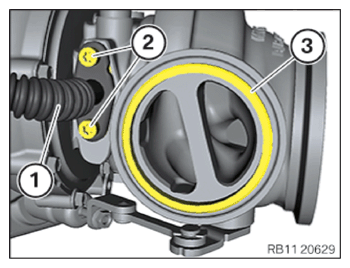

Loosen screws (2).
Remove oil return line (1).
Make sure that the sealing surfaces in the area of the oil return line (1) are flat and free of grease.
Replace the seal (3).
Parts: Seal

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the oil return line (3).
Parts: Oil return line
Replace the seal (1).
Parts: Seal
Replace screws (2).
Parts: Screws
Position screws (2) in oil return line (3).
Slide seal (1) onto the screws (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Complete the following steps with the help of a support person.

Position the oil return line (1).
Tighten screws (2) with an electronic torque wrench with tightening angle display.

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Oil return line at the exhaust turbocharger
M6x16 Replace screws.	Joining torque	5 Nm
M6x16 Replace screws.	Angle of rotation	60°

Make sure that the seal (3) does not fall out during the feed in.
Check oil feed line for contamination or obstruction and clean or replace as needed.
If the oil feed line is heavily contaminated, it is recommended to change the engine oil and oil filter.
Check the clean air lines on the intake side and the charge air cooler for contamination or foreign bodies, and clean if necessary.
If installed: Check the coolant feed lines and coolant return lines for the exhaust turbocharger for contamination or obstruction and clean or replace as needed.
Check the screw connections and plug connections of all lines for accuracy.
Check air cleaner for contamination and clean or replace as needed.
Check correct functioning of crankcase ventilation.
Replace all gaskets.
Parts: Seals

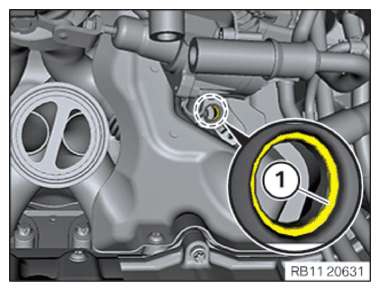

Replace O-ring (1).
Parts: O-ring
Make sure that the O-ring (1) does not fall into the oil duct in the engine block.
If the O-ring (1) cannot be disassembled, the oil return lid must be disassembled.
Coat O-ring (1) with engine oil.

ENGINE OIL SPECIFICATION

Technically suitable engine oils for BMW Group engines

Courtesy of BMW OF NORTH AMERICA, INC.

Thread in exhaust turbocharger with oil return line in downward direction and position it.
Make sure that the oil return line is not mechanically deformed.
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

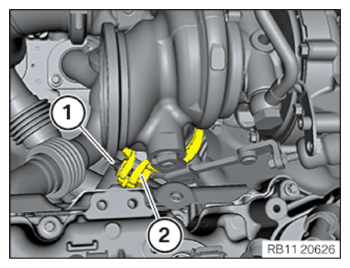

Replace the V-clip (2).
Parts: V-band clamp
Position V-clip (2).
Hand-tighten the bolt (1).

Courtesy of BMW OF NORTH AMERICA, INC.

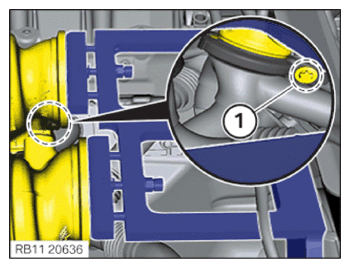

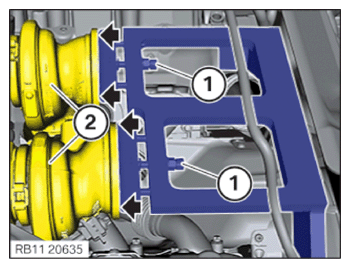

Position special tool 2 249 171 (2) on cylinder head covers.
Tighten special tool 2 249 171 (2) with screws (1) on cylinder head covers. Note the screw length while doing so.

TIGHTENING TORQUE SPECIFICATIONS

Gauge of exhaust turbocharger to cylinder head cover
screw	Tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Manually move the screws (1) of the setting gauge up to the contact surface of the exhaust turbocharger (2).

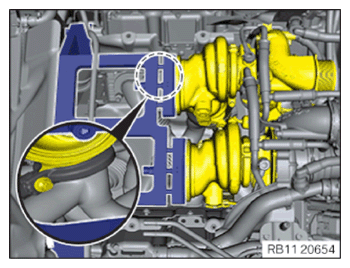

Exhaust turbocharger (2) must be aligned on vertical axis on left and right.
Adjust exhaust turbocharger (2) parallel to setting gauge.

Courtesy of BMW OF NORTH AMERICA, INC.
Tighten screw (1) on the V-clip.

TIGHTENING TORQUE SPECIFICATIONS

Exhaust turbocharger to exhaust manifold
V-band clamp Replace V-band clamp.	Initial Tightening torque	9 Nm
V-band clamp Replace V-band clamp.	Final Tightening torque	20 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Check if the screw connection of the V-band clamp is too loose.
If there is a gap between the ends of the V-band clamps: Loosen the screw and tighten again.

Courtesy of BMW OF NORTH AMERICA, INC.
Check if the screw connection of the V-band clamp is too tight.
When the ends of the V-band clamp are positioned one below the other: Loosen screws and retighten.

Courtesy of BMW OF NORTH AMERICA, INC.
Make sure that the ends of the V-band clamp are parallel to each other.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1).
Remove special tool 2 249 171 (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Oil return line to crankcase
screw	Tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

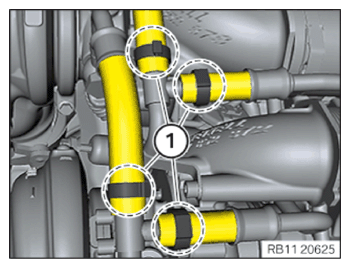

Push hose clamps (1) onto hoses.
Push the hoses onto the connections.
Secure hose clamps (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the screw (1).
Parts: Screw
Replace the sealing ring or sealing rings (2).
Parts: Sealing ring or sealing rings
Make sure that when installing sealing rings without a fitting aid (bridge), both sealing rings are replaced.
Position screw (1) with the sealing ring or sealing rings (2) on the oil feed line.
Position oil feed line.

Courtesy of BMW OF NORTH AMERICA, INC.
Determining the screw type and selecting the appropriate socket wrench:

Screw type	Matching socket wrench
Hexagon screw (3)	Commercial socket wrench (1)
Multi-tooth screw (4)	Multi-tooth socket wrench (2)

Courtesy of BMW OF NORTH AMERICA, INC.

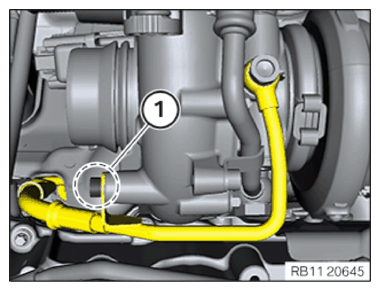

Tighten screw (1) by hand.

Courtesy of BMW OF NORTH AMERICA, INC.

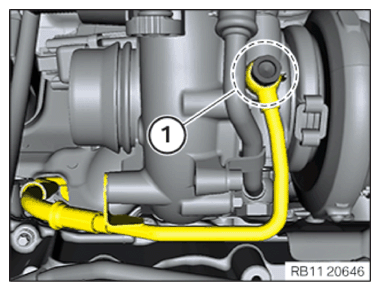

Tighten screw (1) by hand.

Courtesy of BMW OF NORTH AMERICA, INC.

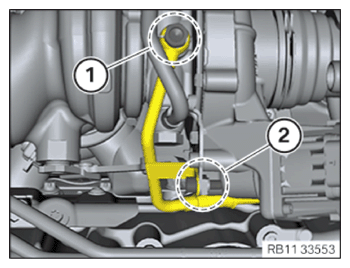

Tighten down screw (2).

TIGHTENING TORQUE SPECIFICATIONS

Oil feed line holder to exhaust turbocharger
M6x16 screw	Tightening torque	10 Nm

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Oil feed line to exhaust turbocharger
Banjo bolt M10x1 Replace screw.	Joining torque	8 Nm
Banjo bolt M10x1 Replace screw.	Angle of rotation	70°

Courtesy of BMW OF NORTH AMERICA, INC.
