Installing the clean air pipe of cylinder bank 2

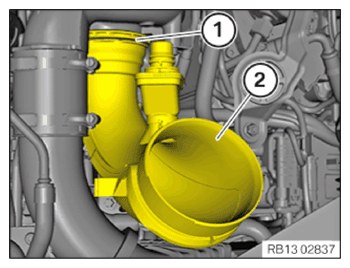

• Position the clean air pipe (2) of the cylinder bank 2 and insert it.

  The retaining clip (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to FASTENING THE ENGINE VENTILATION LINE OF CYLINDER BANK 2 .
• Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
• Refer to INSTALLING ACOUSTIC COVER .
