Installing upper catalytic converter near engine for bank 2

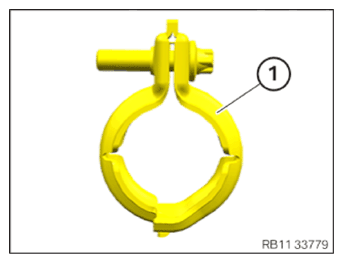

• Replace the V-ribbon clip (1).

  Parts:  V-band clamp

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace gasket (1).

  Parts:  Seal

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the catalytic converter near engine (1) in the holder (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the catalytic converter (1) near the engine.
• Position V-clip (3).
• Tighten down screw (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Catalytic converter to exhaust turbocharger
  V-band clamp Replace V-band clamp.	Tightening torque	14 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Catalytic converter to cylinder head
  screw	Tightening torque	21.4 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Catalytic converter to cylinder head
  screw	Tightening torque	21.4 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  Checking the screw connection of the V-ribbon clips

  NOTE: TECHNICAL INFORMATION
  The V-ribbon clip must be replaced! Reusing it is not permitted.
• Replace the V-ribbon clip (1).

  Parts:  V-band clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Check

• Check if the screw connection of the V-band clamp is too loose.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The screw connection is too slack. If a gap can be seen between the ends of the V-ribbon clips.

Measure

• Loosen the screw and tighten again.

Check

• Check if the screw connection of the V-band clamp is too tight.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The screw connection is too tight. The ends of the V-ribbon clip are not positioned parallel.

Measure

• Release the screw and replace the V-ribbon clip.

  Parts:  V-band clamp

• Make sure that the ends of the V-band clamp are parallel to each other.

Courtesy of BMW OF NORTH AMERICA, INC.
