Installing the heat shield of the crankcase ventilation of cylinders 1 to 4

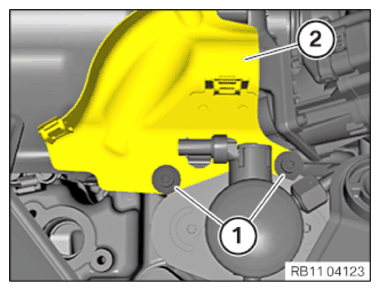

- Position heat shield (2)
.
- Tighten the screws (1)
.
TIGHTENING TORQUES SPECIFICATION
| Heat shield for the crankcase ventilation |
| M6x16 screw |
tightening torque |
8 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|

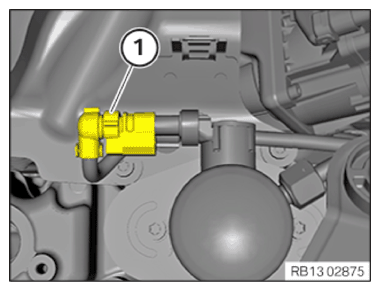

- Connect connectors (1)
and lock.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
