Installing the left-hand charge air cooler
- Replace hose (1).
Parts: Hose

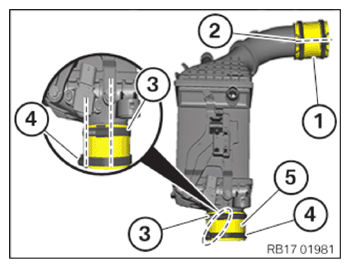

- Position hose (1) with hose clamps (2) as shown in illustration below.
- Position the hose (5) and the hose clamp (3) (diameter 60-80 mm) at the top.
- Ensure that the hose clamp at the top (3) in the area of threaded connection is aligned with the screw on boost pressure sensor.
- Position hose clamp (4) on hose (5) (diameter of 77-84 mm) at the bottom.
- Make sure that the hose clamp (4) at the bottom in the area of the threaded connection is aligned with the rubber mount on the charge air cooler.
- Insert and position the charge air cooler (2).
- Connect and lock the coolant line (1).
- Tighten hose clamp (1).TIGHTENING TORQUE SPECIFICATIONS
hose hose Tightening torque 3.5 Nm - Tighten hose clamp (2).TIGHTENING TORQUE SPECIFICATIONS
hose hose Tightening torque 3.5 Nm - Position the holder (3) in the groove (4).
- Tighten down screw (2).TIGHTENING TORQUE SPECIFICATIONS
Charge air cooler bottom M6x18 screw Tightening torque 10 Nm - Secure the wiring harness mounting (1).
- Clip holder (1) into charge air cooler (2).
- Position washer (2).
- Tighten down screw (1).TIGHTENING TORQUE SPECIFICATIONS
Charge air cooler top M6x30 screw Tightening torque 10 Nm - Position hose (1) on the nozzle of the charge air cooler.
- Tighten hose clamp (2).
- Clip in the hose (3) into the holder on the charge air cooler.
- Tighten the snap rings (1).
TIGHTENING TORQUE SPECIFICATIONS
| hose | ||
|---|---|---|
| hose | Tightening torque | 3.5 Nm |
Securing tank ventilation line of cylinder bank 2
- Position the tank ventilation line.
- Clip in the tank vent line in the (2) area.
- Connect the tank vent line to the engine ventilation line (1) and lock.
- Connect and lock connectors (2), (3) and (5).
- Clip in the coolant line (4) in the holder.
- Connect and lock the coolant line (1).
- Position hose (2) on the nozzle of the charge air cooler.
- Tighten hose clamp (1).
- Clip in the hose (3) into the holder on the charge air cooler.
- Install the connecting plate (1).
- Tighten the screws (2).TIGHTENING TORQUE SPECIFICATIONS
Connecting plate of charge air cooler screw Tightening torque 6.5 Nm - Position the coolant line (1) on the centering bearing (3).
- Tighten nut (2).TIGHTENING TORQUE SPECIFICATIONS
Coolant line to the connecting plate Nut M6 Tightening torque 8 Nm - Position the coolant ventilation line (2) in the holder (1).
- Lock holder (1).
Follow-up work
- Refer to CLOSING THE LOW-TEMPERATURE COOLANT CIRCUIT .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE LOWER LEFT FRONT WHEEL ARCH COVER .
- Refer to INSTALLING FAN COWL .
- Refer to INSTALLING THE LEFT UNFILTERED-AIR DUCT .
- Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING THE FRONT-END STRUT .
- Refer to INSTALLING UPPER CROSS CONNECTION .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT and INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE TOP RIGHT .
- Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
