Installing the engine wiring harness for the sensor system 1

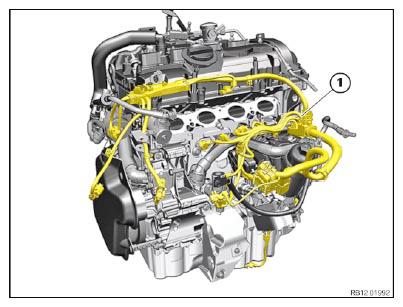

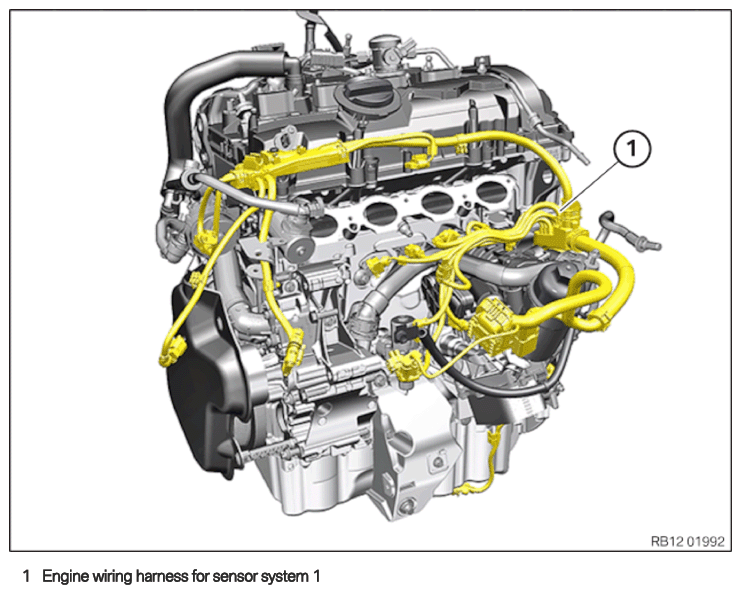

Engine wiring harness for sensor system 1
NOTE:
RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
- Route all cables without abrasions, do not trap and crush.

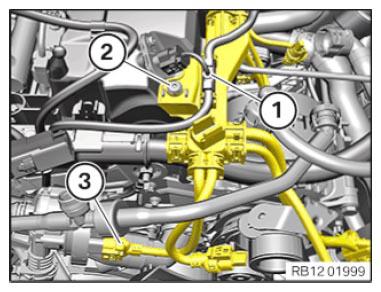

- Guide in and install the wiring harness section (1)
for sensor system 1.
- Connect connectors (3)
and lock.
The connector (3) must engage audibly.
- Tighten down screw (2) .
TIGHTENING TORQUE SPECIFICATIONS
| Wiring harness section for engine to cylinder head cover | ||
| M6 | Tightening torque | 8 Nm |

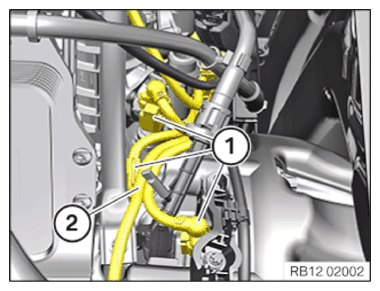

- Guide in the wiring harness section (1) and install.
- Guide in and install the wiring harness section (2) for sensor system 1.
- Secure the holder (arrows).

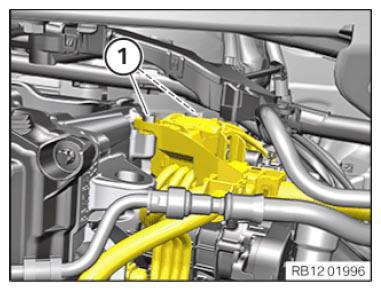

- Connect connectors (1)
and lock.
The connector (1) must engage audibly.
- Guide in and install the wiring harness section (2) for sensor system 1.
- Connect connectors (1)
and lock.
The connectors (1) must engage audibly.
- Tighten down screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Cable bracket on rear cylinder head/transmission | ||
| M6 x 20 | Tightening torque | 10 Nm |

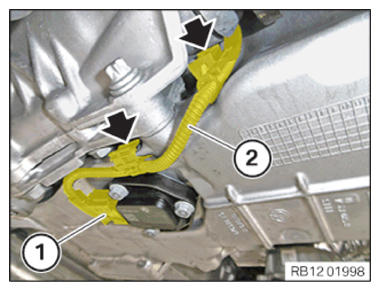

- Guide in the wiring harness section (2) and install.
- Make sure the detent (arrow) engages audibly.
- Tighten down screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Cable bracket on rear cylinder head/transmission | ||
| M6 x 20 | Tightening torque | 10 Nm |

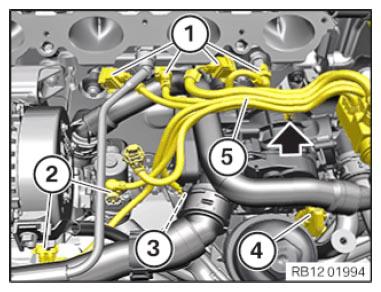

- Guide in and install the wiring harness section (5) for sensor system 1.
- Secure clamps (arrow).
- Connect connectors (4)
and lock.
The connector (4) must engage audibly.
- Connect connectors (3)
and lock.
The connector (3) must engage audibly.
- Connect connectors (2)
and lock.
The connectors (2) must engage audibly.
- Connect connectors (1)
and lock.
The connectors (1) must engage audibly.

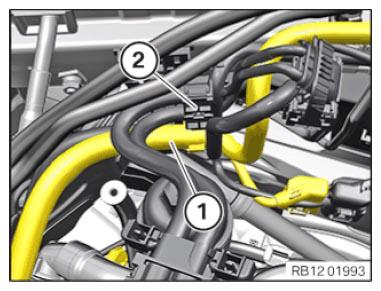

- Guide in and install the wiring harness section (1) for sensor system 1 on the bracket (2) .
