Install the cover in the engine compartment at top left and right
NOTE:
Description is for left component only. Procedure on the right side is identical.
Install the cover in the engine compartment on top

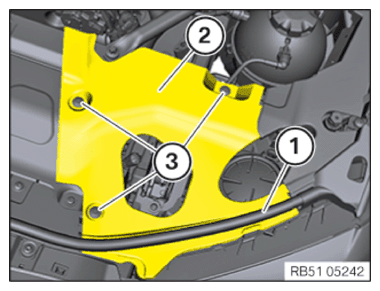

- Insert the cover (2).
- Secure expanding rivet (3).
- Secure hood seal (1) in the area of the cover (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
