Securing the EPS wiring harness to the electromechanical steering gear

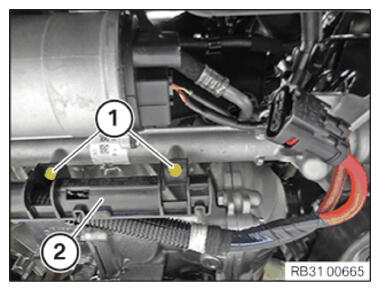

• Position the holder (2) with the wiring harness.
• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Holder on steering gear
  M6	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

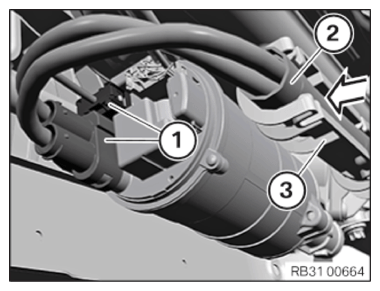

• Clip in the wiring harness (2) in the holder (3).
• Connect connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

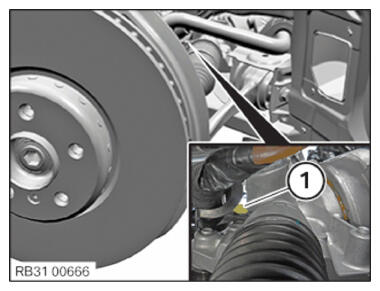

• Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Holder on steering gear
M6	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
