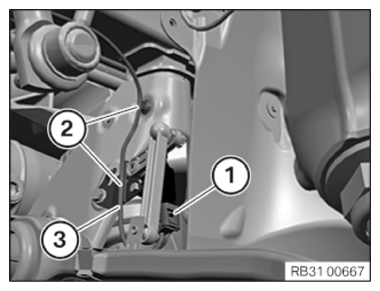

Attach the line connection of the ride height sensor

NOTE: The following step(s) must be performed if the specified component(s) is/are installed.

• Position the line (3).
• Clip in the line (3) with the holders (2).
• Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
