Install the cowl upper part
Install the cowl upper part

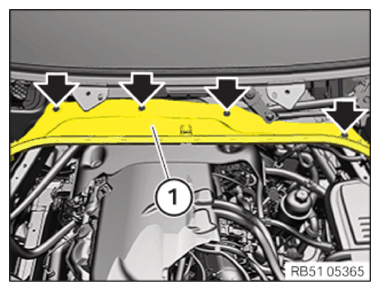

Guide in and install cowl upper part (1).
Tighten screws (arrows).
TIGHTENING TORQUES SPECIFICATION
Cowl upper part
Hexagon screw
Tightening torque
3 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
Version with mild hybrid technology:

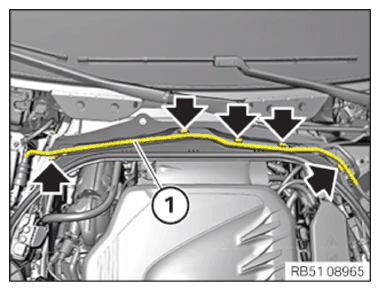

Clip line (1) into the holders (arrows).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
