Install the cover panels on the front axle on the right and left

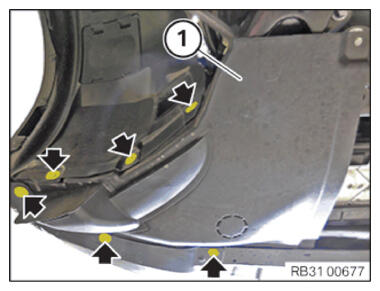

Installing the front bottom wheel arch cover

• Guide the wheel arch cover (1) in.
• Tighten all bolts (arrows).

Wheel arch cover (screws)
Thermoplastic hexagon screw	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

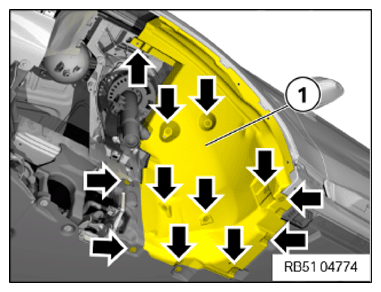

Install the rear section of the front wheel arch cover

• Feed in rear section (1) of the front wheel arch cover.
• Tighten screws (arrows).

Wheel arch cover (screws)
Thermoplastic hexagon screw	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Installing front wheel arch trim

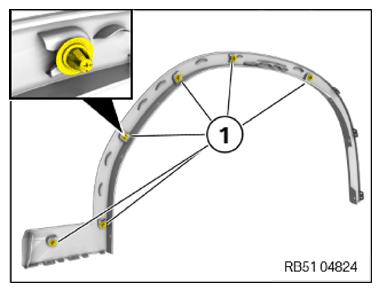

• Check clips (1) for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Check

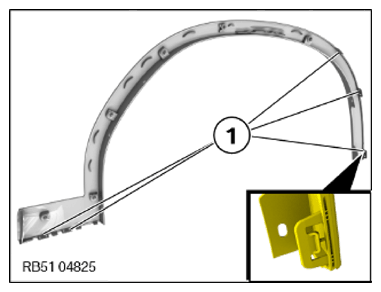

• Check detents (1) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Detent (1) of the wheel arch trim is damaged.

Measure

• Replace wheel arch trim.

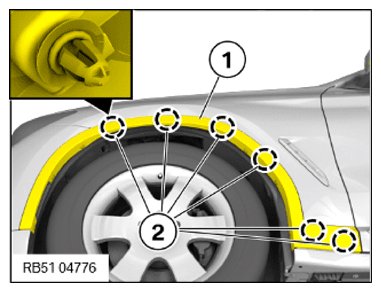

• Snap the wheel arch trim (1) into the locks (2) on the front side panel.

  Courtesy of BMW OF NORTH AMERICA, INC.

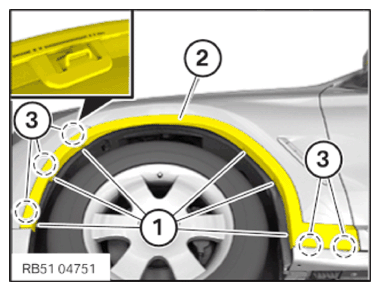

• Feed in wheel arch trim (2) and engage on the clips (3).
• Replace the blind rivets (1).

  Parts:  Blind rivet

• Mount blind rivet (1) using the special tool 0 496 521 (00 2 230) .

Courtesy of BMW OF NORTH AMERICA, INC.

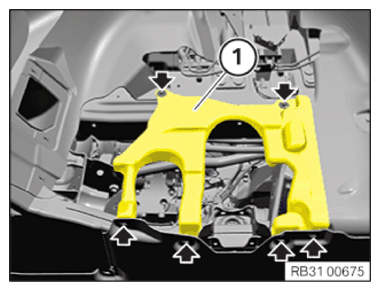

Install the cover of the steering assembly

• Insert the cover (1).
• Tighten all bolts (arrows).

Cover, steering unit
Screw	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
