Secure the anti-roll bar link on the left and right on the anti-roll bar
NOTE:
Perform the steps on the right and left side.

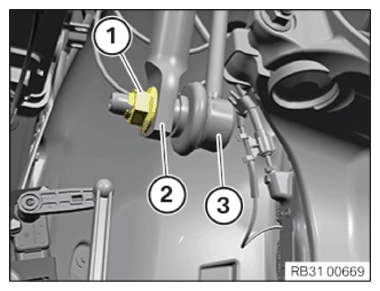

Securing the anti-roll bar link to the anti-roll bar
- Position the anti-roll bar link (3) on the anti-roll bar (2).
- Replace nut (1).
Parts: Nut
- Tighten nut (1).NOTE: Counter-hold at the Torx socket.
TIGHTENING TORQUES SPECIFICATION
| Anti-roll bar link on anti-roll bar/spring strut (air suspension) | ||
|---|---|---|
| M12 Replace nuts. |
Tightening torque | 100 Nm |
