Install the integrated power supply module (PDM)

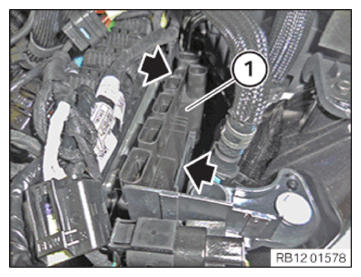

• Insert and install the integrated power supply module (PDM) (1).

  The locks (arrows) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

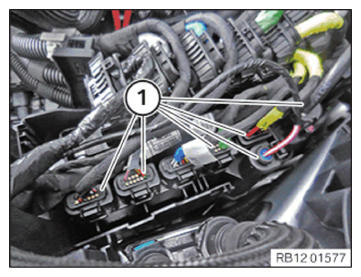

• Connect connectors (1) and lock.

  The connectors must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING COVER OF THE DME CONTROL UNIT .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to ACTIVATING ELECTRICAL SYSTEM .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
