Installing mount of hood seal on the left and right

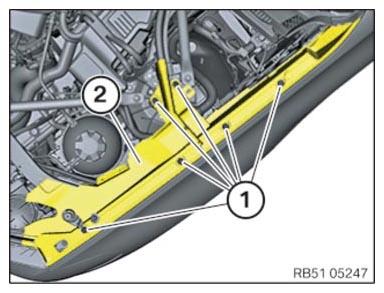

Installing the mount of hood seal on left

• Positioning mount (2) of hood seal on left.
• Mount the expanding rivets (1).

Courtesy of BMW OF NORTH AMERICA, INC.

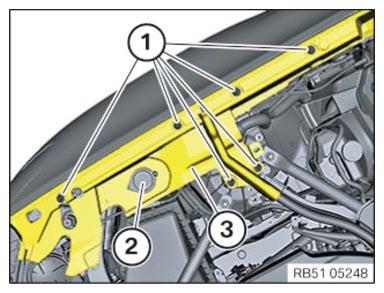

Installing mount of hood seal on right

• Positioning mount (3) of hood seal on right.
• Install the lid (2) of the washer fluid reservoir.
• Mount the expanding rivets (1).

Courtesy of BMW OF NORTH AMERICA, INC.
