11 37 010 Removing and installing/replacing intermediate levers: Notes

Preliminary work:

• Disconnect all battery ground leads
• Refer to REMOVING THE ACOUSTIC COVER
• Refer to REMOVING INTAKE SILENCER HOUSING
• Refer to REMOVING CLEAN AIR PIPE
• Refer to REMOVING FAN COWL .
• Remove the cover in the left engine compartment
• Remove the right cover in the engine compartment
• Remove the sound insulation on the bulkhead upper part center
• Remove both wiper arms
• Remove cowl panel cover
• Refer to REMOVING TRAILING LINK AT SPRING STRUT DOME
• Remove ACOUSTIC COVER AT REAR
• Unlock and disconnect connector (1). Loosen screws (2). Remove charge air line from throttle body and place to one side.
  Fig 1: (connector and screws)

  Courtesy of BMW OF NORTH AMERICA, INC.
• Refer to REMOVING TANK VENT VALVE
• Disconnect the connector from the DME control unit and from the power distribution module (PDM)
• Refer to REMOVING THE DME CONTROL UNIT
• Refer to REMOVING THE HOLDER FOR THE DIGITAL MOTOR ELECTRONICS-CONTROL UNIT
• Refer to DRAINING THE COOLANT FROM THE LOW-TEMPERATURE COOLING SYSTEM
• Refer to REMOVING THE INTAKE PLENUM
• Remove ignition coils. Refer to REPLACING IGNITION COILS .
• Refer to REMOVING THE HIGH PRESSURE LINE BETWEEN THE RAIL AND THE HIGH PRESSURE PUMP
• Refer to REMOVING FUEL DELIVERY LINE
• Refer to REMOVING THE INJECTORS FOR CYLINDERS 1 TO 3
• Refer to REMOVING THE INJECTORS FOR CYLINDERS 4 TO 6
• Refer to REMOVING HIGH PRESSURE PUMP
• Refer to REMOVING BOTH ACTUATORS
• Refer to REMOVING FRONT ENGINE ENCAPSULATION
• Refer to REMOVING THE CYLINDER HEAD COVER

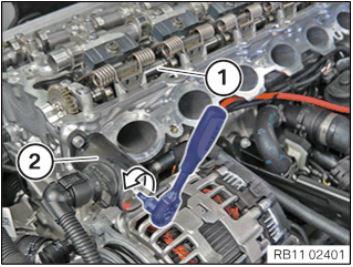

• Using the servomotor (2), slowly set the eccentric shaft (1) to minimum lift.
  Fig 2: (eccentric shaft servo motor)

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work:

• Refer to INSTALLING CYLINDER HEAD COVER
• Refer to INSTALLING FRONT ENGINE ENCAPSULATION
• Refer to INSTALLING BOTH ACTUATORS
• Refer to PREPARING FOR THE INSTALLATION OF THE HIGH PRESSURE PUMP
• Refer to INSTALLING HIGH PRESSURE PUMP
• Refer to PREPARING THE INJECTORS FOR INSTALLATION
• Refer to INSTALLING THE INJECTORS FOR THE CYLINDERS 1 TO 3
• Refer to INSTALLING THE INJECTORS FOR THE CYLINDERS 4 TO 6
• Refer to INSTALLING FUEL DELIVERY LINE
• Refer to INSTALLING THE HIGH-PRESSURE LINE BETWEEN THE HIGH-PRESSURE RAIL AND THE HIGH-PRESSURE PUMP
• Refer to INSTALLING THE IGNITION COILS
• Refer to INSTALLING THE INTAKE PLENUM
• Refer to CONNECT THE COOLANT HOSE TO THE RADIATOR OF THE LOW-TEMPERATURE COOLANT CIRCUIT
• Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLER DEVICE
• Refer to INSTALLING THE HOLDER FOR THE DIGITAL MOTOR ELECTRONICS-CONTROL UNIT
• Refer to INSTALLING THE DME CONTROL UNIT
• Connect the connector to the DME control unit and the power distribution box (PDM)
• Refer to INSTALLING THE TANK VENT VALVE
• Fasten charge air line to the throttle body
• Refer to INSTALLING ACOUSTIC COVER AT REAR
• Install tension strut on spring strut dome. Jointing torque: 56 Nm, angle of rotation: 90°
  NOTE: Replace screws.
• Attach cowl panel cover
• Install both wiper arms
• Check the angle of attack of the wiper arms on the left and right
• Install the sound insulation on the bulkhead upper part center
• Install the cover in the engine compartment on the left
• Install the cover in the engine compartment on the right
• Refer to INSTALLING FAN COWL
• Refer to INSTALLING CLEAN AIR PIPE
• Refer to INSTALLING INTAKE SILENCER HOUSING
• Refer to INSTALLING ACOUSTIC COVER
• Connect all battery ground leads
• Refer to BLEEDING THE LOW-TEMPERATURE COOLING SYSTEM
