Passive Occupant Detection System Components, Manual Seats, Removing

WARNING:

Observe safety precautions when working on seat occupied recognition. Refer to PASSIVE OCCUPANT DETECTION SYSTEM, SAFETY PRECAUTIONS .

NOTE:

Seat cushion, mat for seat occupied recognition, control module and pressure sensor must only be replaced together. Components are complementary and must not be separated!

Only the wiring harnesses mentioned in the following description may be separated!

-- Mount the fixture for seat repairVAS 6136 on the engine and transmission holderVAS 6095.

-- Remove the front seat. Refer to FRONT SEAT .

-- Attach the seat to the fixture for seat repairVAS 6136.

-- Remove the front seat belt latch:

2-door vehicle, refer to BELT LATCH, 2-DOOR .
4-door vehicle, refer to BELT LATCH, 4-DOOR .

-- Remove right trim on seat:

Seat without a pass-through, refer to RIGHT SEAT TRIM .
Seat with a pass-through, refer to TRIM, RIGHT, SEAT WITH PASS-THROUGH .

-- Remove left trim on seat:

Seat without a pass-through, refer to LEFT SEAT TRIM .
Seat with a pass-through, refer to LEFT SEAT TRIM WITH PASS-THROUGH .

-- Remove bracket and front seat operating lever. Refer to FRONT SEAT SUPPORT AND OPERATING LEVER .

-- If present, remove mount for seat drawer. Refer to SEAT DRAWER MOUNT .

-- Remove the front seat backrest. Refer to LEFT FRONT SEAT BACKREST .

-- Remove the cover from the seat cushion. Refer to FRONT SEAT PAN COVERS AND CUSHION .

-- Disconnect the connector from the passenger occupant detection system control module -J706-.

-- Remove the passenger occupant detection system pressure sensor -G452-.

-- Disconnect the connector from the passenger occupant detection system pressure sensor -G452-.

-- Unclip pressure hose -2- from retainers.

-- Remove the screws -1- (1.5 Nm) and the passenger occupant detection system control module -J706- -3-.

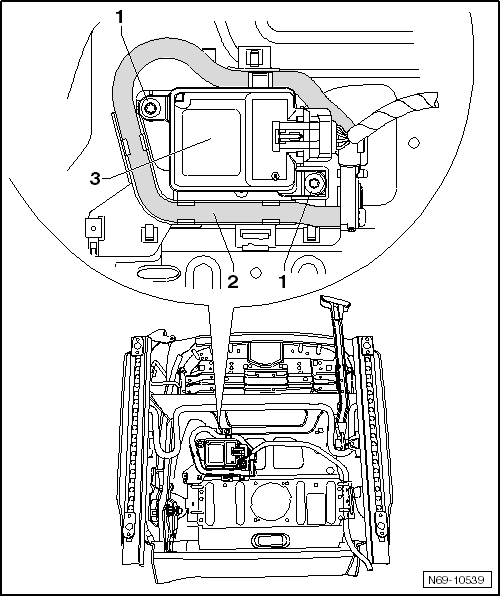

Fig 1: Identifying Pressure Hose, Screws And Passenger Occupant Detection System Control Module J706

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Lift the seat cushion -1-. When doing this do not separate the seat cushion from the passenger occupant detection system mat -4-.

-- Remove the clips -2- from the lower seat frame -5-. Do not remove clip -3-.

WARNING:

The seat cushion, the mat for the passenger occupant detection system, the pressure hose, the passenger occupant detection system pressure sensor -G452- and the passenger occupant detection system control module -J706- are calibrated together and may not be used with other components.

-- Remove the seat cushion and the mat for the passenger occupant detection system from the lower seat frame.

-- Guide the pressure hose and the passenger occupant detection system pressure sensor -G452- through the opening inside the lower seat frame.

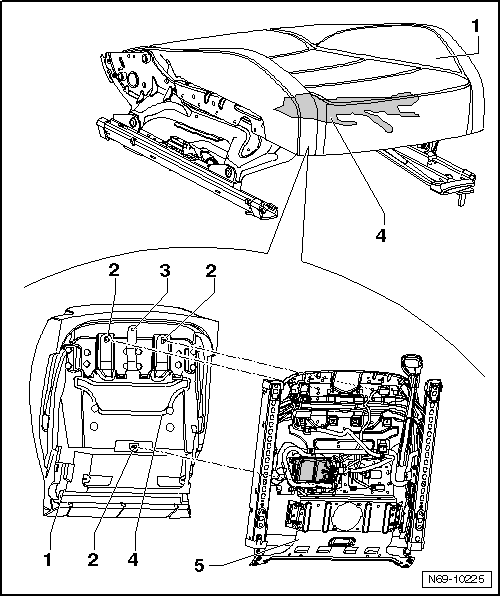

Fig 2: Identifying Seat Cushion, Clips, Seat Frame And Passenger Occupant Detection System Mat

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
