Trim, Right, Seat With Pass-Through

Removing

-- Remove front seat. Refer to FRONT SEAT

-- Press metal tab of securing clip -2- inward using a small screwdriver and pull off handle -3- from adjustment lever -1-.

NOTE:

For clarity, securing clip is depicted as removed in the illustration.

-- Remove the clip -2- from the adjusting lever -1-.

-- Grasp with assembly tool3399 behind backrest release lever -4-.

-- Pry assembly tool3399 outward -arrow A- and remove backrest release lever from seat.

-- Using assembly tool3399, reach behind a locking mechanism of backrest adjusting wheel -5-.

-- Pry assembly tool3399 outward -arrow B- and remove backrest adjusting wheel from seat.

-- Push the clamping pin -6- toward the inside and remove the clip -7-.

-- Remove trim -8- in direction of travel out of mounts in seat frame.

-- Remove trim -9- from seat frame.

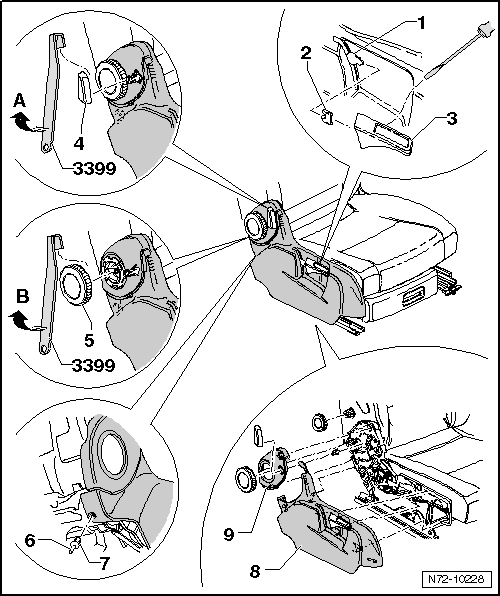

Fig 1: Right Trim Removing/Installing Components (Seat With Pass-Through)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

-- Install in reverse order of removal.
