Right Seat Trim

NOTE:

The following describes removing and installing on the left side of the vehicle. Removing and installing on the right side is identical.

Removing

-- Remove the front seat. Refer to FRONT SEAT .

-- Remove the front seat belt latch:

-- Remove bolt -1- (2 Nm).

-- Pull seat belt latch toward outside.

-- Press hooks -2- upward and remove trim -3- from seat.

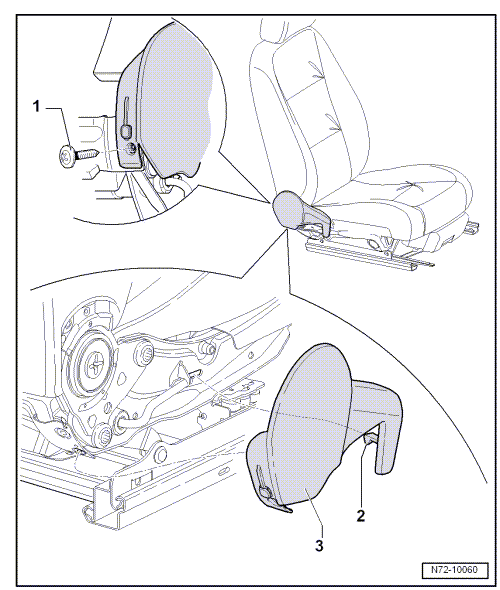

Fig 1: Identifying Right Seat Trim Removal/Installation Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

-- Install in reverse order of removal.
