Left Seat Trim

NOTE:

The following describes removing and installing on the left side of the vehicle. Removing and installing on the right side is identical.

Removing

-- Remove front seat. Refer to FRONT SEAT

-- Remove bolt -1- (2.5 Nm).

-- Press securing clip metal tab -2- inward using a small screwdriver and remove handle -3- from adjustment lever -4-.

NOTE:

For clarity, securing clip is depicted as removed in the illustration.

-- Remove the clip -2- from the adjusting lever -4-.

-- Using assembly tool3399, reach behind a locking mechanism of backrest adjusting wheel -5-.

-- Pry assembly tool3399 outward -arrow A- and remove backrest adjusting wheel from seat.

-- Remove bolt -6- (2.5 Nm).

-- Remove trim -7- in direction of travel out of mounts in seat frame.

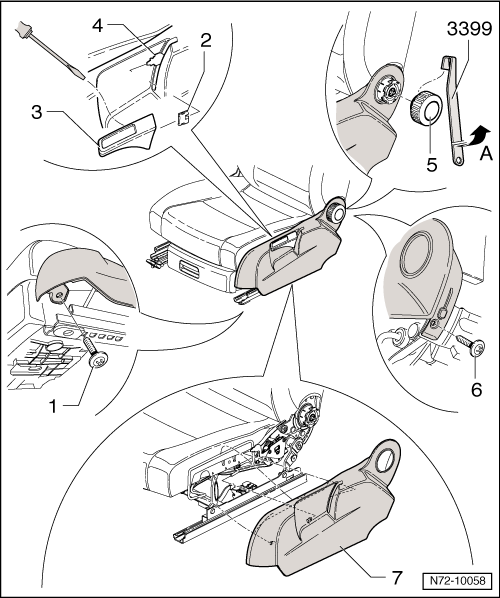

Fig 1: Left Seat Trim Removing/Installing Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

-- Install in reverse order of removal.
