Front Seat Support And Operating Lever

NOTE:

The following describes removing and installing on the left side of the vehicle. Removing and installing on the right side is identical.

Removing

-- Remove front seat. Refer to FRONT SEAT

-- Remove front left seat trim. Refer to LEFT SEAT TRIM

-- Remove the two bolts -1- (3.5 Nm) and remove operating lever -2-.

-- Remove the two bolts -3- (3.5 Nm) and remove bracket -4-.

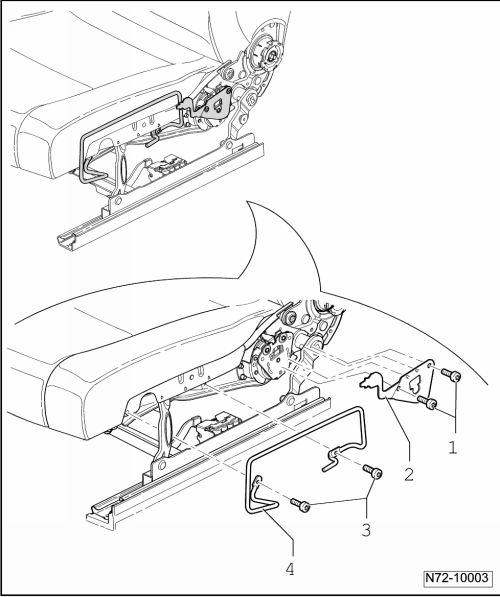

Fig 1: Bracket And Operating Lever Of Front Seat Remove/Install Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

-- Install in reverse order of removal.
