Left Seat Trim With Pass-Through

Removing

-- Remove the front seat. Refer to FRONT SEAT .

-- Remove the front seat belt latch:

• 2-door: BELT LATCH, 2-DOOR
• 4-door: BELT LATCH, 4-DOOR

-- Press clamping pin -2- inward and remove the clip -1-.

-- Release the retaining hook -3- and remove the trim -4- from the seat.

-- Release the retaining hook -5- and remove the trim -6- from the seat.

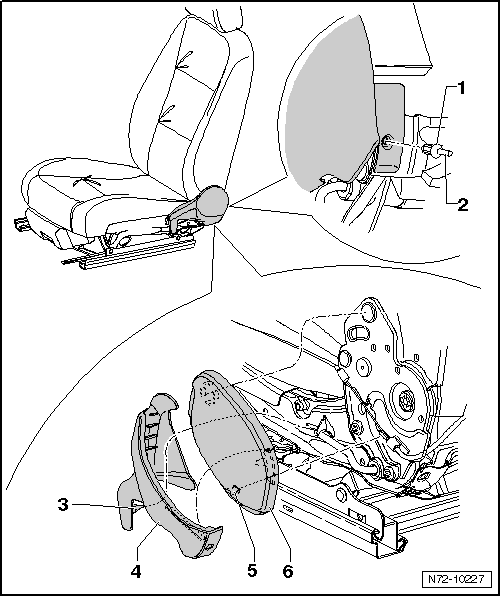

Fig 1: Left Trim Removing/Installing Components (Seat With Pass-Through)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

-- Install in reverse order of removal.
