Seat Drawer Mount

NOTE:

The following describes removing and installing on the left side of the vehicle. Removing and installing on the right side is identical.

Removing

-- Remove seat drawer -1- from mount.

-- Remove front seat. Refer to FRONT SEAT

-- Remove front left seat trim. Refer to LEFT SEAT TRIM

-- Remove bolt -2- (2 Nm).

-- Remove the three bolts -3- (2 Nm).

-- Remove mount -4- from seat frame.

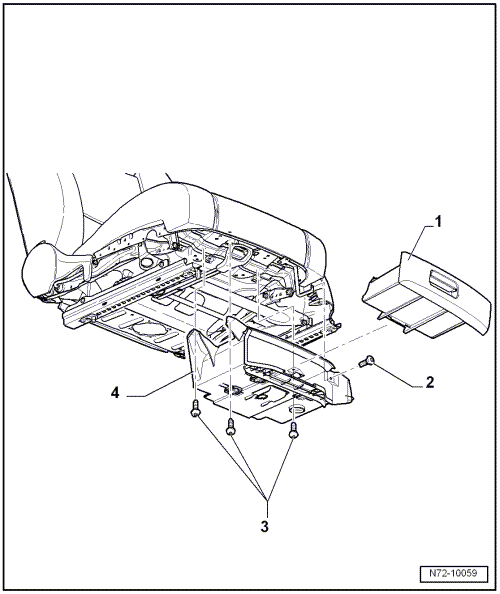

Fig 1: Identifying Seat Drawer Mount Removal/Installation Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

-- Install in reverse order of removal.
