AIR CONDITIONING UNIT (for Sedan): Installation

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL AIR CONDITIONING UNIT
    1. Install the air conditioning unit with the 3 screws.
      Fig 1: Identifying Screws For Air Conditioning Unit
      G04829616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY
    1. Install the air conditioning amplifier with the screw.
      Fig 2: Locating Screw For Air Conditioning Amplifier
      G04829615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL INSTRUMENT PANEL REINFORCEMENT
    1. Provisionally tighten the air conditioning unit with the 3 screws.
    2. Install the instrument panel reinforcement and the air conditioning unit with the 9 bolts.
      Fig 3: Identifying Screws For Air Conditioning Unit
      G04829614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 4: Identifying Instrument Panel Reinforcement Bolts And Nuts
      G04829613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 3 screws, 3 bolts and the nut in the sequence shown in the illustration.

      Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf) for screw 9.8 N*m (100 kgf*cm, 87 in.*lbf) for nut 9.8 N*m (100 kgf*cm, 87 in.*lbf) for bolt

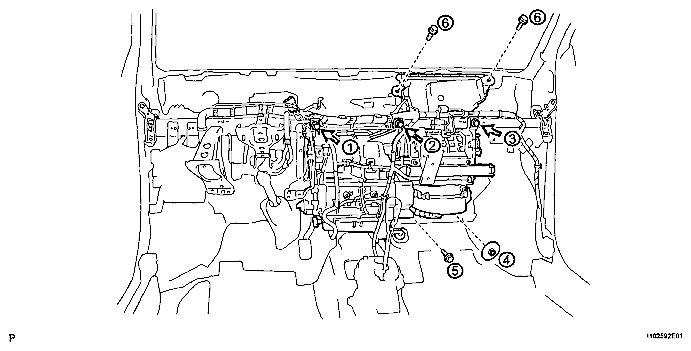

      Fig 5: Identifying Instrument Panel Reinforcement Screws
      G04829644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the wire harness with the clamps and connect the connectors.
      Fig 6: Locating Connectors And Clamps
      G04829611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Engage the clamps.
      Fig 7: Identifying Clamps
      G04829610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Install the ground wire with the bolt.

      Torque: 3.2 N*m (33 kgf*cm, 28 in.*lbf)

      Fig 8: Locating Ground Wire Bolt
      G04829608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Install the ground wire with the bolt, (for Cold area specification vehicles)

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

      Fig 9: Locating Ground Wire Bolt
      G04829609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Install the drain hose into the position shown in the illustration.
      NOTE:
      • Install the drain hose with its UP mark facing upward, within the 90 degree range shown in the illustration.
      • Install the drain hose without twisting it.
      Fig 10: Locating Drain Hose Position
      G04829649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL CONNECTOR NO. 2 HOLDER
    1. Connect the connectors and install the wire harness.
      Fig 11: Separating Connector Holder
      G04829606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the connector holder with the bolt.

      Torque: 3.2 N*m (33 kgf*cm, 28 in.*lbf)

      Fig 12: Locating Connector No. 2 Holder
      G04829605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL MAIN BODY ECU (DRIVER SIDE J/B)
    1. Install the main body ECU with the 2 bolts.

      Torque: 3.2 N*m (33 kgf*cm, 28 in.*lbf)

      Fig 13: Locating Main Body ECU Bolts
      G04829604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 5 connectors and the 3 clamps.
      Fig 14: Identifying Main Body ECU Connectors And Clamps
      G04829603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL INSTRUMENT PANEL BRACE SUB-ASSEMBLY
    1. Install the instrument panel brace with the bolt, screw and nut.

      Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf) for screw

      9.8 N*m (100 kgf*cm, 87 in.*lbf) for nut

      9.8 N*m (100 kgf*cm, 87 in.*lbf) for bolt

    2. Engage the clamp.
      Fig 15: Locating Instrument Panel Brace Screw And Nut
      G04829602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL REAR NO. 3 AIR DUCT (for Cold Area Specification Vehicles)
    1. Engage the 4 claws and install the air duct.
      Fig 16: Locating Claws For No. 3 Air Duct
      G04829601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL REAR NO. 1 AIR DUCT (for Cold Area Specification Vehicles)
    1. Engage the 2 claws and install the air duct.
      Fig 17: Locating Claws For No. 1 Air Duct
      G04829600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL REAR NO. 2 AIR DUCT (for Cold Area Specification Vehicles)
    1. Engage the 4 claws and install the air duct.
      Fig 18: Identifying Claws For Rear No. 2 Air Duct
      G04829657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL DEFROSTER NOZZLE ASSEMBLY
    1. Engage the 5 claws and install the defroster nozzle.
    2. Connect the 3 clamps and connector and install the wire harness.
      Fig 19: Identifying Connector And Clamps
      G04829598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL HEATER TO REGISTER DUCT ASSEMBLY
    1. Engage the 3 claws and install the heater to register duct.
  12. INSTALL STEERING COLUMN ASSEMBLY  (See INSTALLATION )
  13. INSTALL BRAKE PEDAL SUPPORT SUB-ASSEMBLY (for Manual Transaxle)  (See INSTALLATION )
  14. INSTALL BRAKE MASTER CYLINDER PUSH ROD CLEVIS (for Manual Transaxle)  (See INSTALLATION )
  15. INSTALL BRAKE PEDAL (for Automatic Transaxle)  (See INSTALLATION )
    Fig 20: Identifying Claws For Heater To Register Duct
    G04829597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL STEERING SLIDING YOKE SUB-ASSEMBLY
    1. Align the matchmarks and install the sliding yoke onto the power steering assembly with bolt B.

      Torque: 28 N*m (286 kgf*cm, 21 ft.*lbf)

    2. Tighten bolt A.

      Torque: 28 N*m (286 kgf*cm, 21 ft.*lbf)

      Fig 21: Identifying Steering Yoke Bolt Matchmarks
      G04829596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL COLUMN HOLE COVER SILENCER SHEET  (See INSTALLATION )
  18. INSTALL INSTRUMENT PANEL SUB REINFORCEMENT
  19. CONNECT POWER STEERING ECU  (See INSTALLATION )
  20. INSTALL COMBINATION SWITCH ASSEMBLY  (See INSTALLATION )
  21. INSTALL STEERING COLUMN COVER  (See INSTALLATION )
  22. INSTALL STEERING WHEEL ASSEMBLY  (See INSTALLATION )
  23. INSTALL STEERING PAD  (See INSTALLATION )
  24. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY  (See INSTALLATION )
  25. CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY  (See INSTALLATION )
  26. CONNECT ANTENNA CORD SUB-ASSEMBLY  (See INSTALLATION )
  27. INSTALL INSTRUMENT PANEL BOX  (See INSTALLATION )
  28. INSTALL INSTRUMENT PANEL LOWER FINISH PANEL SUB-ASSEMBLY  (See INSTALLATION )
  29. INSTALL INSTRUMENT PAD LOWER RH  (See INSTALLATION )
  30. INSTALL INSTRUMENT PAD LOWER LH  (See INSTALLATION )
  31. INSTALL REAR CONSOLE BOX ASSEMBLY  (See INSTALLATION )
  32. INSTALL CONSOLE BOX CARPET  (See INSTALLATION )
  33. INSTALL CONSOLE UPPER REAR PANEL SUB-ASSEMBLY  (See INSTALLATION )
  34. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY  (See INSTALLATION )
  35. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)  (See INSTALLATION )
  36. INSTALL COWL SIDE TRIM BOARD RH  (See INSTALLATION )
  37. INSTALL COWL SIDE TRIM BOARD LH  (See INSTALLATION )
  38. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY RH  (See INSTALLATION )
  39. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY LH  (See INSTALLATION )
  40. INSTALL FRONT DOOR SCUFF PLATE RH  (See INSTALLATION )
  41. INSTALL FRONT DOOR SCUFF PLATE LH  (See INSTALLATION )
  42. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY  (See INSTALLATION )
  43. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY  (See INSTALLATION )
  44. INSTALL FRONT PILLAR GARNISH RH  (See INSTALLATION )
  45. INSTALL FRONT PILLAR GARNISH LH  (See INSTALLATION )
  46. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH  (See INSTALLATION )
  47. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH  (See INSTALLATION )
  48. CONNECT AIR INLET DAMPER CONTROL CABLE SUB-ASSEMBLY (See INSTALLATION  )
  49. CONNECT DEFROSTER DAMPER CONTROL CABLE SUB-ASSEMBLY (See INSTALLATION  )
  50. CONNECT AIR MIX DAMPER CONTROL CABLE SUB-ASSEMBLY (See INSTALLATION  )
  51. INSTALL AIR CONDITIONING PANEL ASSEMBLY (See INSTALLATION  )
  52. INSTALL STEREO OPENING COVER (w/o Radio Receiver)  (See INSTALLATION )
  53. INSTALL RADIO RECEIVER ASSEMBLY  (See INSTALLATION )
  54. INSTALL INSTRUMENT CLUSTER FINISH PANEL CENTER SUB-ASSEMBLY  (See INSTALLATION )
  55. INSTALL COMBINATION METER ASSEMBLY  (See INSTALLATION )
  56. INSTALL INSTRUMENT CLUSTER FINISH PANEL  (See INSTALLATION )
  57. INSTALL INSTRUMENT PANEL FINISH PANEL END RH  (See INSTALLATION )
  58. INSTALL INSTRUMENT PANEL FINISH PANEL END LH  (See INSTALLATION )
  59. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER CENTER  (See INSTALLATION )
  60. CONNECT HEATER WATER INLET HOSE
    1. Install the heater water inlet hose onto the heater unit.
      NOTE: Perform the installation with the hose clip and mark at the correct angle as shown in the illustration.
      Fig 22: Identifying Hose Clip And Mark Angle For Heater Water Inlet Hose
      G04829661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  61. CONNECT HEATER WATER OUTLET HOSE
    1. Install the heater water outlet hose onto the heater unit.
      NOTE: Perform the installation with the hose clip and mark at the correct angle as shown in the illustration.
  62. INSTALL LIQUID TUBE SUB-ASSEMBLY
    1. Remove the vinyl tape from the liquid tube and the connecting portion of the unit.
    2. Apply sufficient compressor oil (ND-OIL8) to a new O-ring and the connecting part of the liquid tube.

      Compressor oil: ND-OIL8 or the equivalent

    3. Install the O-ring onto the liquid tube.
    4. Connect the liquid tube to the unit.
      Fig 23: Identifying Hose Clip And Mark Angle For Heater Water Outlet Hose
      G04829662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  63. INSTALL SUCTION TUBE SUB-ASSEMBLY
    1. Remove the vinyl tape from the suction tube and the connecting part of the unit.
    2. Apply sufficient compressor oil (ND-OIL8) to a new O-ring and the connecting part of the suction tube.

      Compressor oil: ND-OIL8 or the equivalent

    3. Install the O-ring onto the suction tube.
    4. Insert the tube joints securely into the fitting holes and tighten the bolt.

      Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

  64. ADD ENGINE COOLANT (for 1NZ-FE)  (See REPLACEMENT )
  65. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  66. CHECK SRS WARNING LIGHT

    DIAGNOSIS SYSTEM

    Fig 24: Locating Tube Joints Into Fitting Holes
    G04829663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  67. CHARGE REFRIGERANT (See REPLACEMENT  )
  68. WARM UP ENGINE (See REPLACEMENT  )
  69. CHECK FOR ENGINE COOLANT LEAK (for 1NZ-FE)  (See ON-VEHICLE INSPECTION )
  70. CHECK FOR REFRIGERANT LEAK (See REPLACEMENT  )
  71. POSITION FRONT WHEELS FACING STRAIGHT AHEAD
  72. PERFORM CALIBRATION OF TORQUE SENSOR ZERO POINT  (See INSTALLATION )
