RADIO RECEIVER (for Sedan): Installation

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL RADIO RECEIVER ASSEMBLY
1. for Integrated with Panel:
  1. Connect the plug.
  2. Connect the 3 radio connectors.

    Fig 1: Locating Radio Connectors
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Align the 2 bosses of the instrument panel with the hole in the radio bracket.
  4. Engage the 4 clips and 4 claws and install the radio receiver.

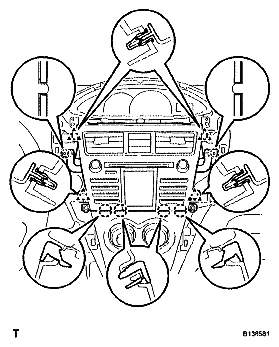

    Fig 2: Identifying Radio Receiver Clips And Claws
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. Tighten the 4 bolts.
  6. Connect the hazard warning signal switch connector.

    Fig 3: Locating Hazard Warning Signal Switch Connector
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. except Integrated with Panel:
  1. Connect the plug.
  2. Connect the 2 radio connectors.

    Fig 4: Locating Radio Connectors
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Align the 2 bosses of the instrument panel with the hole in the radio bracket.
  4. Install the radio receiver with the 4 bolts.
INSTALL INSTRUMENT CLUSTER CENTER FINISH PANEL SUB-ASSEMBLY (except Integrated with Panel) (See INSTALLATION )
INSTALL INSTRUMENT CLUSTER FINISH PANEL (See INSTALLATION )
INSTALL INSTRUMENT PANEL FINISH PANEL END RH (See INSTALLATION )
INSTALL INSTRUMENT PANEL FINISH PANEL END LH (See INSTALLATION )
INSTALL INSTRUMENT PANEL LOWER CENTER FINISH PANEL (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

Fig 5: Locating Radio Receiver Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
