UPPER INSTRUMENT PANEL (for Sedan): Installation

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL NO. 3 INSTRUMENT PANEL CUSHION
    1. Install the instrument panel cushion onto the upper instrument panel.
      Fig 1: Identifying No. 3 Instrument Panel Cushion
      G04834006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 2 INSTRUMENT PANEL CUSHION
    1. Install the instrument panel cushion onto the upper instrument panel.
      Fig 2: Identifying No. 2 Instrument Panel Cushion
      G04834005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 1 INSTRUMENT PANEL CUSHION
    1. Install the instrument panel cushion onto the upper instrument panel.
      Fig 3: Identifying No. 1 Instrument Panel Cushion
      G04834004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL INSTRUMENT PANEL CUSHION
    1. Install the instrument panel cushion onto the upper instrument panel.
  5. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY (See  INSTALLATION  )
    Fig 4: Identifying Instrument Panel Cushion
    G04834010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Engage the 3 claws and install the register.

      HINT:

      Use the same procedure for both sides.

      Fig 5: Locating No. 1 Instrument Panel Register Claws
      G04834002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL NO. 1 HEATER TO REGISTER DUCT
    1. Install the register duct with the 2 < A > screws.
      Fig 6: Locating No. 1 Heater To Register Duct
      G04834001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL NO. 2 HEATER TO REGISTER DUCT
    1. Install the register duct with the 2 < A > screws.
      Fig 7: Locating No. 2 Heater To Register Duct
      G04834000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY
    1. Using a nipper, cut off both ends of the runner portion shown in Fig 8 (When installing a new one).
    2. Engage the 5 claws at the front side of the instrument panel.
      Fig 8: Identifying Instrument Panel
      G04834014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the 7 clips at the rear side of the instrument panel.

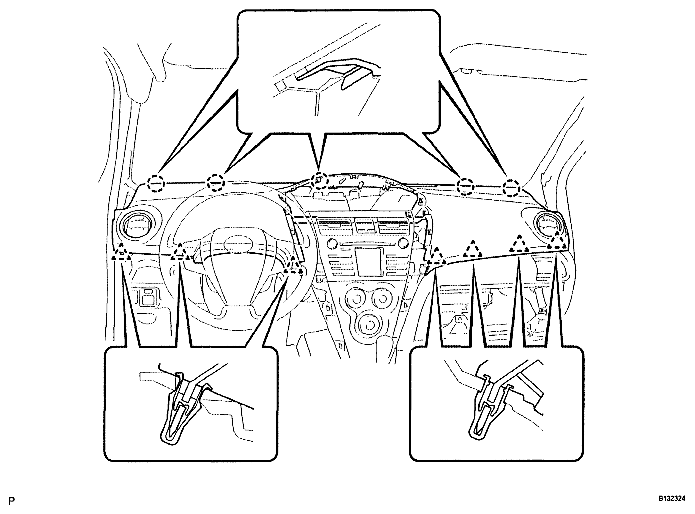

      Fig 9: Locating Instrument Panel Clips
      G04833999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the upper instrument panel with the 2 < C > bolts and the 2 < B >screws.

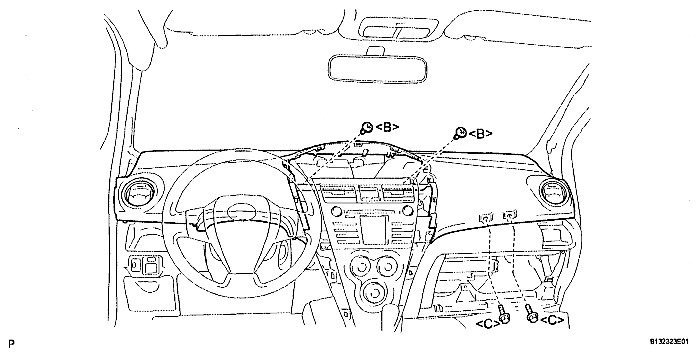

      Fig 10: Locating Bolts & Screws
      G04833998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf) for bolt < C >

    5. Connect the passenger airbag connector and clamp.
      Fig 11: Locating Passenger Airbag Connector & Clamp
      G04834017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
    1. Engage the claws of the hinge portions by pushing the glove compartment door in the horizontal direction to install the glove compartment door assembly.
      NOTE: Engage the claw by pushing it in the horizontal direction, otherwise, installation failure caused by excessive play around the hinge portion will result.
      Fig 12: Locating Glove Compartment Door Assembly Hinge
      G04834018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Slightly flex the upper portion of the glove compartment door assembly to engage the stopper.
    3. Install the 2 glove compartment door stoppers onto the glove compartment door.
      Fig 13: Locating Glove Compartment Door Assembly Claw
      G04833995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL FRONT PILLAR GARNISH RH (See  INSTALLATION  )
  12. INSTALL FRONT PILLAR GARNISH LH (See  INSTALLATION  )
  13. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
    1. Install the front door opening trim weatherstrip.
  14. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
    1. Install the front door opening trim weatherstrip.
  15. INSTALL COMBINATION METER ASSEMBLY (See  INSTALLATION  )
  16. INSTALL INSTRUMENT CLUSTER FINISH PANEL (See  INSTALLATION  )
  17. INSTALL INSTRUMENT PANEL FINISH PANEL END RH (See  INSTALLATION  )
  18. INSTALL INSTRUMENT PANEL FINISH PANEL END LH (See  INSTALLATION  )
  19. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER CENTER (See  INSTALLATION  )
  20. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  21. CHECK SRS WARNING LIGHT (See  DIAGNOSIS SYSTEM  )
