Measure propeller shaft alignment with electronic propeller shaft inclinometer - AR41.10-P-0086CW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 172, 204, 207, 212, 218, 231

Fig 1: Measuring Propeller Shaft Alignment With Electronic Propeller Shaft Inclinometer
G09976499Courtesy of MERCEDES-BENZ USA

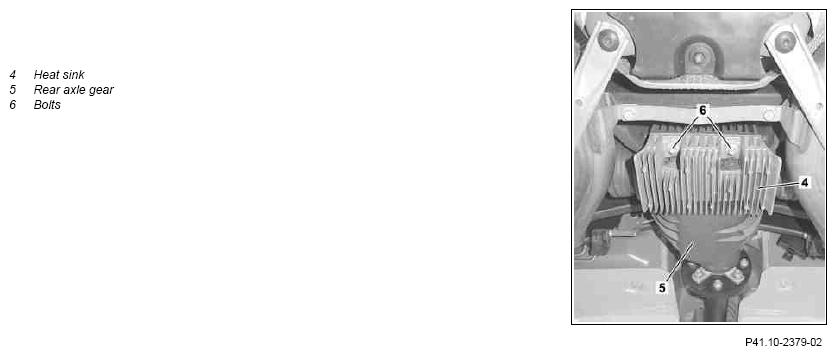

Fig 2: Heat Sink, Rear Axle Gear And Bolts
G09976500Courtesy of MERCEDES-BENZ USA
MEASURING Measure
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
1.1 Drive the vehicle onto a suitable pit and secure using the parking brake When using a pit.
1.2 Drive vehicle onto a measuring lifting platform, secure with the parking brake and lift up When using a measuring lifting platform.
2 Remove lower engine compartment paneling or bottom sections of soundproofing MODEL 172 with gasoline engine AR61.20-P-1105W
MODEL 204.9 AR61.20-P-1105CY
MODEL 204, 207, 212, 218 with gasoline engine AR61.20-P-1105EW
MODEL 231 AR61.20-P-1105RK
MODEL 172 with diesel engine AR94.30-P-5300W
MODEL 204, 207, 212, 218 with diesel engine AR94.30-P-5300EW
3 Prepare vehicle for measurement NOTES The vehicle must be on its wheels for the measurement.
Otherwise the measurement will be inaccurate.
IMPORTANT The transmission mounts and exhaust system must not be stressed during the inclination angle measurement. If necessary, relieve the tension in the transmission suspension or exhaust system.
4 Prepare articulation angle meter   AR41.10-P-0086-02P
Propeller shaft inclinometer
5 Check articulation angle meter, adjust if necessary IMPORTANT To check and adjust, see equipment operator's manual.
6 Measure front inclination angle (∠1) MODEL 172, 204, 207, 212, 218 with automatic transmission.
Measure absolute angle at transmission		 AR41.10-P-0085-01PA
Measure absolute angle at transmission MODEL 172, 204, 207, 212 with manual transmission. AR41.10-P-0085-01T
Measure absolute angle at transmission MODEL 231
Propeller shaft inclinometer		 AR41.10-P-0085-01RKC
7 Measure center inclination angle (∠2) Measure absolute angle at front and rear propeller shafts
Propeller shaft inclinometer		 AR41.10-P-0085-02T
8 Remove heat sink (4) from rear axle differential (5) MODEL 231 with ENGINE 279
IMPORTANT Start by removing screw/bolts (6).
TORQUE SPECIFICATION Bolt, heat sink to end cover *BA35.31-P-1004-02H
9 Measure rear inclination angle (∠3) Measure absolute angle at rear axle housing
Propeller shaft inclinometer		 AR41.10-P-0085-03T
10 Read out all inclination angles (∠1, ∠2, ∠3) from the inclinometer memory   AR41.10-P-0086-01R
MODEL 172, 231 *BE41.10-P-1001-01A
MODEL 172, 231 *BE41.10-P-1002-01A
MODEL 172, 231 *BE41.10-P-1003-01A
MODEL 204, 207, 212, 218 *BE41.10-P-1001-01G
MODEL 204, 207, 212, 218 *BE41.10-P-1002-01G
MODEL 204, 207, 212, 218
Propeller shaft inclinometer		 *BE41.10-P-1003-01G
11 Correct front inclination angle (∠1) at transmission   AR41.10-P-0086-03CW
IMPORTANT According to measurement result.
TORQUE SPECIFICATION MODEL 172, 204, 207, 212, 218, 231 *BA22.10-P-1004-03E
TORQUE SPECIFICATION MODEL 172, 204, 207, 212, 218, 231 *BA22.10-P-1005-03E
Transmission platform
Transmission jack
12 Correct articulation angle in center (∠2) on propeller shaft center support bearing   AR41.10-P-0086-04CW
IMPORTANT According to measurement result.
TORQUE SPECIFICATION Bolt, propeller shaft center support bearing to frame floor assembly
Transmission platform
Transmission jack		 *BA41.40-P-1001-01F
13 Correct rear articulation angle (∠3) on rear axle differential   AR41.10-P-0086-05CW
IMPORTANT According to measurement result.
TORQUE SPECIFICATION Rear axle differential to front adapter *BA35.10-P-1005-01N
TORQUE SPECIFICATION Bolt, rear axle differential to front cross member *BA35.10-P-1009-01N
Transmission platform
Transmission jack
14 Carry out a check measurement again each time the inclination angle is corrected.   AR41.10-P-0086-01R
IMPORTANT Only when inclination angles have been corrected.
MODEL 172, 231 *BE41.10-P-1001-01A
MODEL 172, 231 *BE41.10-P-1002-01A
MODEL 172, 231 *BE41.10-P-1003-01A
MODEL 204, 207, 212, 218 *BE41.10-P-1001-01G
MODEL 204, 207, 212, 218 *BE41.10-P-1002-01G
MODEL 204, 207, 212, 218 *BE41.10-P-1003-01G
15 Install lower engine compartment paneling and bottom sections of soundproofing MODEL 204.9 AR61.20-P-1105CY
MODEL 204, 207, 212, 218 with gasoline engine AR61.20-P-1105EW
MODEL 172 with gasoline engine AR61.20-P-1105W
MODEL 231 AR61.20-P-1105RK
MODEL 204, 207, 212, 218 with diesel engine AR94.30-P-5300EW
MODEL 172 with diesel engine AR94.30-P-5300W
CHECK VALUES FOR PROPELLER SHAFT INCLINATION ANGLE

Number Designation MODEL 172 (except 172.475) MODEL 172.475
BE41.10-P-1001-01A Front inclination angle of transmission relative to front propeller shaft (1) ∠° -0, 33°...+0, 67° -0, 30°...+0, 30°
CHECK VALUES FOR PROPELLER SHAFT INCLINATION ANGLE

Number Designation MODEL 231.457/461/465/473 MODEL 231.474/479
BE41.10-P-1001-01A Front inclination angle of transmission relative to front propeller shaft (1) ∠° -0, 33°...+0, 67° -0, 20°...+0, 20°
CHECK VALUES FOR PROPELLER SHAFT INCLINATION ANGLE

Number Designation MODEL 204 (except 204.077/277/377) MODEL 204.077/277/377
BE41.10-P-1001-01G Front inclination angle of transmission relative to front propeller shaft (1) ∠° -0, 50...+0, 67 -0, 50...+0, 67
CHECK VALUES FOR PROPELLER SHAFT INCLINATION ANGLE

Number Designation MODEL 207 MODEL 212 (except 212.074/075/076/077/092/274/275/276/277/292)
BE41.10-P-1001-01G Front inclination angle of transmission relative to front propeller shaft (1) ∠° -0, 50...+0, 67 -0, 50...+0, 67
CHECK VALUES FOR PROPELLER SHAFT INCLINATION ANGLE

Number Designation MODEL 212.074/075/077/274/275/277 MODEL 212.076/092/276/292
BE41.10-P-1001-01G Front inclination angle of transmission relative to front propeller shaft (1) ∠° -0, 30...+0, 30 -0, 30...+0, 30
CHECK VALUES FOR PROPELLER SHAFT INCLINATION ANGLE

Number Designation MODEL 218 (except 218.374/375/376/392/974/975/976/992) MODEL 218.374/375/974/975
BE41.10-P-1001-01G Front inclination angle of transmission relative to front propeller shaft (1) ∠° -0, 33...+0, 67 -0, 30...+0, 30
CHECK VALUES FOR PROPELLER SHAFT INCLINATION ANGLE

Number Designation MODEL 218.376/392/976/992
BE41.10-P-1001-01G Front inclination angle of transmission relative to front propeller shaft (1) ∠° -0, 30...+0, 30
CHECK VALUES FOR PROPELLER SHAFT INCLINATION ANGLE

Number Designation MODEL 172 (except 172.475) MODEL 172.475
BE41.10-P-1002-01A Inclination angle of front propeller shaft relative to rear propeller shaft (2) ∠° +0, 00°...+1, 17° +0, 10°...+0, 50°
CHECK VALUES FOR PROPELLER SHAFT INCLINATION ANGLE

Number Designation MODEL 231.457/461/465/473 MODEL 231.474/479
BE41.10-P-1002-01A Inclination angle of front propeller shaft relative to rear propeller shaft (2) ∠° -0, 20°...+1, 00° +0, 10°...+0, 45°
CHECK VALUES FOR PROPELLER SHAFT INCLINATION ANGLE

Number Designation MODEL 204 (except 204.077/277/377) MODEL 204.077/277/377
BE41.10-P-1002-01G Inclination angle of front propeller shaft relative to rear propeller shaft (2) ∠° +0, 00...+0, 83 +0, 00...+0, 83
CHECK VALUES FOR PROPELLER SHAFT INCLINATION ANGLE

Number Designation MODEL 207 MODEL 212 (except 212.074/075/076/077/092/274/275/276/277/292)
BE41.10-P-1002-01G Inclination angle of front propeller shaft relative to rear propeller shaft (2) ∠° +0, 00...+0, 83 +0, 00...+1, 00
CHECK VALUES FOR PROPELLER SHAFT INCLINATION ANGLE

Number Designation MODEL 212.074/075/077/274/275/277 MODEL 212.076/092/276/292
BE41.10-P-1002-01G Inclination angle of front propeller shaft relative to rear propeller shaft (2) ∠° +0, 10...+0, 50 +0, 10...+0, 40
CHECK VALUES FOR PROPELLER SHAFT INCLINATION ANGLE

Number Designation MODEL 218 (except 218.374/375/376/392/974/975/976/992) MODEL 218.374/375/974/975
BE41.10-P-1002-01G Inclination angle of front propeller shaft relative to rear propeller shaft (2) ∠° +0, 17...+1, 00 +0, 10...+0, 50
CHECK VALUES FOR PROPELLER SHAFT INCLINATION ANGLE

Number Designation MODEL 218.376/392/976/992
BE41.10-P-1002-01G Inclination angle of front propeller shaft relative to rear propeller shaft (2) ∠° +0, 10...+0, 40
CHECK VALUES FOR PROPELLER SHAFT INCLINATION ANGLE

Number Designation MODEL 172 (except 172.475) MODEL 172.475
BE41.10-P-1003-01A Rear inclination angle of rear propeller shaft relative to rear axle differential (∠3) ∠° -1, 17°...-0, 33° -1, 00°...-0, 50°
CHECK VALUES FOR PROPELLER SHAFT INCLINATION ANGLE

Number Designation MODEL 231.457/461/465/473 MODEL 231.474/479
BE41.10-P-1003-01A Rear inclination angle of rear propeller shaft relative to rear axle differential (∠3) ∠° -1, 00°...-0, 17° -0, 90°...-0, 50°
CHECK VALUES FOR PROPELLER SHAFT INCLINATION ANGLE

Number Designation MODEL 204 (except 204.077/277/377) MODEL 204.077/277/377
BE41.10-P-1003-01G Rear inclination angle of rear propeller shaft relative to rear axle differential (∠3) ∠° -1, 00...-0, 17 -0, 98...-0, 33
CHECK VALUES FOR PROPELLER SHAFT INCLINATION ANGLE

Number Designation MODEL 207 MODEL 212 (except 212.074/075/076/077/092/274/275/276/277/292)
BE41.10-P-1003-01G Rear inclination angle of rear propeller shaft relative to rear axle differential (∠3) ∠° -1, 00...-0, 17 -1, 00...-0, 17
CHECK VALUES FOR PROPELLER SHAFT INCLINATION ANGLE

Number Designation MODEL 212.074/075/077/274/275/277 MODEL 212.076/092/276/292
BE41.10-P-1003-01G Rear inclination angle of rear propeller shaft relative to rear axle differential (∠3) ∠° -0, 90...-0, 60 -0, 85...-0, 50
CHECK VALUES FOR PROPELLER SHAFT INCLINATION ANGLE

Number Designation MODEL 218 (except 218.374/375/376/392/974/975/976/992) MODEL 218.374/375/974/975
BE41.10-P-1003-01G Rear inclination angle of rear propeller shaft relative to rear axle differential (∠3) ∠° -1, 00...-0, 17 -0, 90...-0, 60
CHECK VALUES FOR PROPELLER SHAFT INCLINATION ANGLE

Number Designation MODEL 218.376/392/976/992
BE41.10-P-1003-01G Rear inclination angle of rear propeller shaft relative to rear axle differential (∠3) ∠° -0, 85...-0, 50
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation Model 172 MODEL 204
BA22.10-P-1004-03E Rear engine mount on engine support Nm 28 28
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation MODEL 207 MODEL 212
BA22.10-P-1004-03E Rear engine mount on engine support Nm 28 28
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation MODEL 218 Model 231
BA22.10-P-1004-03E Rear engine mount on engine support Nm 28 30
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation Model 172 MODEL 204
BA22.10-P-1005-03E Bolt, rear engine support to frame floor assembly M10x22 silver Nm 65 70
Black Nm - 55
M10x24 Black Nm - 50
M10x38 Nm - -
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation MODEL 207 MODEL 212
BA22.10-P-1005-03E Bolt, rear engine support to frame floor assembly M10x22 silver Nm 70 70
Black Nm - 55
M10x24 Black Nm 50 -
M10x38 Nm - -
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation MODEL 218 Model 231
BA22.10-P-1005-03E Bolt, rear engine support to frame floor assembly M10x22 silver Nm 70 -
Black Nm 55 -
M10x24 Black Nm - -
M10x38 Nm - 45
REAR AXLE CARRIER

Number Designation MODEL 172 MODEL 204
BA35.10-P-1005-01N Rear axle differential to front adapter Nm - 65
REAR AXLE CARRIER

Number Designation MODEL 207 MODEL 212
BA35.10-P-1005-01N Rear axle differential to front adapter Nm 65 65
REAR AXLE CARRIER

Number Designation MODEL 218 MODEL 231
BA35.10-P-1005-01N Rear axle differential to front adapter Nm 65 65
REAR AXLE CARRIER

Number Designation MODEL 172 MODEL 204
BA35.10-P-1009-01N Bolt, rear axle differential to front cross member Nm 43 -
REAR AXLE CARRIER

Number Designation MODEL 207 MODEL 212
BA35.10-P-1009-01N Bolt, rear axle differential to front cross member Nm - -
REAR AXLE CARRIER

Number Designation MODEL 218 MODEL 231
BA35.10-P-1009-01N Bolt, rear axle differential to front cross member Nm - -
REAR AXLE DIFFERENTIAL HOUSING

Number Designation MODEL 231
BA35.31-P-1004-02H Bolt, heat sink to end cover Nm 35
PROPELLER SHAFT INTERMEDIATE BEARING

Number Designation MODEL 172 MODEL 204
BA41.40-P-1001-01F Bolt, propeller shaft center support bearing to frame floor assembly Self-tapping screw Nm 23 20
PROPELLER SHAFT INTERMEDIATE BEARING

Number Designation MODEL 207 MODEL 212
BA41.40-P-1001-01F Bolt, propeller shaft center support bearing to frame floor assembly Self-tapping screw Nm 20 20
PROPELLER SHAFT INTERMEDIATE BEARING

Number Designation MODEL 218 MODEL 231
BA41.40-P-1001-01F Bolt, propeller shaft center support bearing to frame floor assembly Self-tapping screw Nm 20 28
